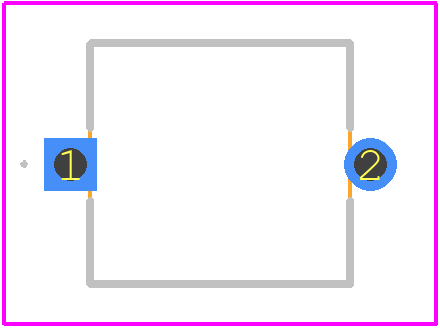

Footprint
-

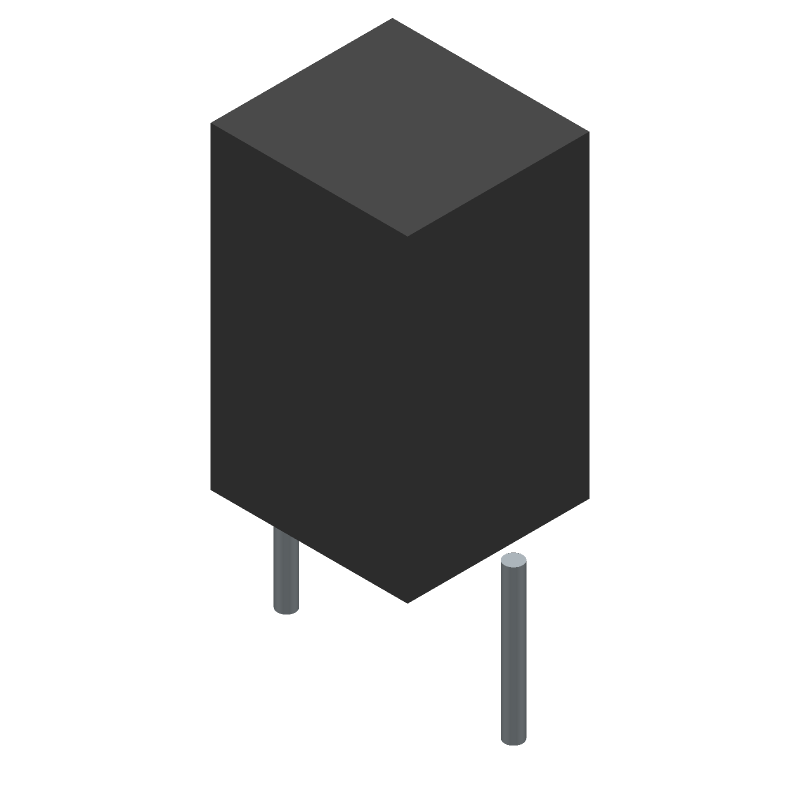

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CK45-B3FD331KYGNA by TDK Corporation
Results Overview of CK45-B3FD331KYGNA by TDK Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
Transportation and Logistics
Automotive
CK45-B3FD331KYGNA Information
CK45-B3FD331KYGNA by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CK45-B3FD331KYGNA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
68AK4186
|
Newark | Disc Capacitor, 330Pf, 3Kv, Pc Pin Rohs Compliant: Yes |Tdk CK45-B3FD331KYGNA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 752 |
|
$0.1080 / $0.4020 | Buy Now |
|
DISTI #
445-CK45-B3FD331KYGNA-ND
|
DigiKey | CAP CER 330PF 3KV RADIAL Min Qty: 1 Lead time: 12 Weeks Container: Bulk |
247 In Stock |
|
$0.1052 / $0.4200 | Buy Now |
|
DISTI #
CK45-B3FD331KYGNA
|
Avnet Americas | - Bulk (Alt: CK45-B3FD331KYGNA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$0.0695 / $0.1196 | Buy Now |
|
DISTI #
810-CK45-B3FD331KYGN
|
Mouser Electronics | Ceramic Disc Capacitors D: 6.5mm 3kV 330pF B 10% LS:7.5mm RoHS: Compliant | 3931 |
|
$0.0900 / $0.4200 | Buy Now |
|
DISTI #
CK45-B3FD331KYGNA
|
Avnet Abacus | (Alt: CK45-B3FD331KYGNA) RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CK45-B3FD331KYGNA
CK45-B3FD331KYGNA CAD Models
CK45-B3FD331KYGNA Part Data Attributes
|
|
CK45-B3FD331KYGNA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CK45-B3FD331KYGNA
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 3000V, 10% +Tol, 10% -Tol, B, 10% TC, 0.00033uF, Through Hole Mount, 2624, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.00033 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Diameter | 6.5 mm | |
| Dielectric Material | CERAMIC | |
| Length | 6.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 3000 V | |
| Surface Mount | NO | |
| Temperature Characteristics Code | B | |
| Temperature Coefficient | 10% ppm/°C | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE | |
| Width | 6 mm |
