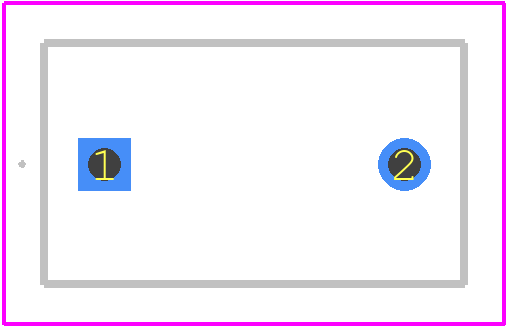

Footprint
-

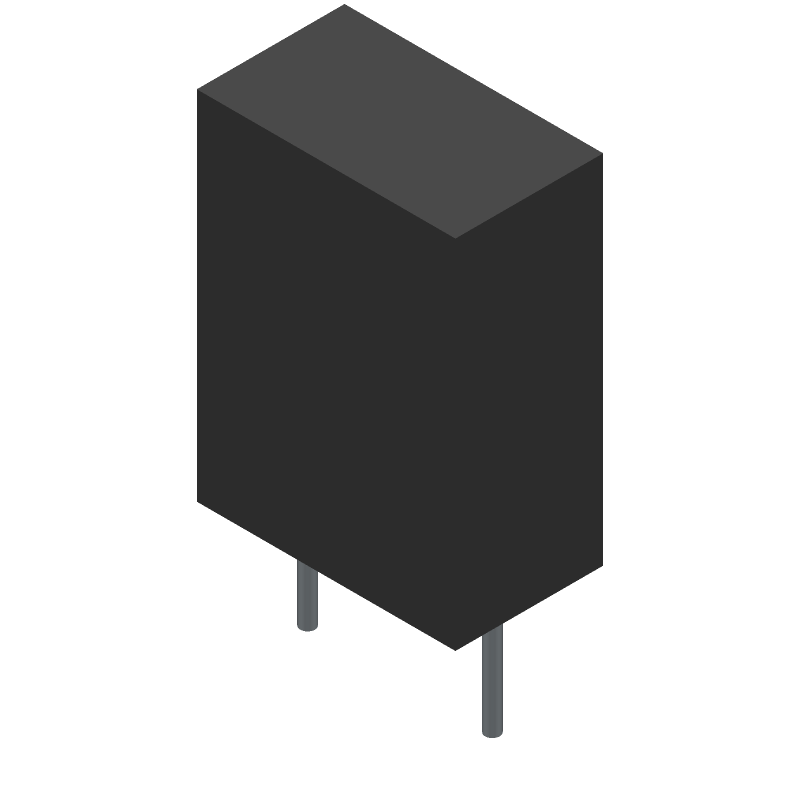

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CK45-B3FD152KYGNA by TDK Corporation
Results Overview of CK45-B3FD152KYGNA by TDK Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
Transportation and Logistics
Automotive
CK45-B3FD152KYGNA Information
CK45-B3FD152KYGNA by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CK45-B3FD152KYGNA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4149908
|
element14 Asia-Pacific | , 1500PF, 3KV, PC RoHS: Compliant Min Qty: 1 Container: Each | 53 |
|
$0.1800 / $0.7200 | Buy Now |
|
DISTI #
445-CK45-B3FD152KYGNA-ND
|
DigiKey | CAP CER 1500PF 3KV RADIAL Min Qty: 1 Lead time: 10 Weeks Container: Bulk |
26720 In Stock |
|
$0.1875 / $0.6600 | Buy Now |
|
DISTI #
CK45-B3FD152KYGNA
|
Avnet Americas | Single Layer Ceramic Capacitor, 1500 pF, 3 kV, ? 10%, B, 7.5 mm, PC Pin - Bulk (Alt: CK45-B3FD152KYGNA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1321 / $0.2097 | Buy Now |
|
DISTI #
810-CK45-B3FD152KYGN
|
Mouser Electronics | Ceramic Disc Capacitors D: 10.5mm 3kV 1500pF B 10% LS:7.5mm RoHS: Compliant | 8975 |
|
$0.1790 / $0.6600 | Buy Now |
|
DISTI #
CK45-B3FD152KYGNA
|
Avnet Abacus | Single Layer Ceramic Capacitor 1500 pF 3 kV 10 B 75 mm PC Pin (Alt: CK45-B3FD152KYGNA) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for CK45-B3FD152KYGNA
CK45-B3FD152KYGNA CAD Models
CK45-B3FD152KYGNA Part Data Attributes
|
|
CK45-B3FD152KYGNA
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CK45-B3FD152KYGNA
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 3000V, 10% +Tol, 10% -Tol, B, 10% TC, 0.0015uF, Through Hole Mount, 4124, RADIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | RADIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.0015 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Diameter | 10.5 mm | |
| Dielectric Material | CERAMIC | |
| Length | 10.5 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -25 °C | |
| Package Shape | DISK PACKAGE | |
| Package Style | Radial | |
| Packing Method | BULK | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 3000 V | |
| Surface Mount | NO | |
| Temperature Characteristics Code | B | |
| Temperature Coefficient | 10% ppm/°C | |
| Terminal Pitch | 7.5 mm | |
| Terminal Shape | WIRE | |
| Width | 6 mm |
