CHP-020TA by:

Piano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, 4 PCB Hole Cnt,

Part Details for CHP-020TA by Nidec Copal Electronics Corporation

Results Overview of CHP-020TA by Nidec Copal Electronics Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CHP-020TA Information

CHP-020TA by Nidec Copal Electronics Corporation is a DIP Switch.
DIP Switches are under the broader part category of Switches.

Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.

Price & Stock for CHP-020TA

Part # Distributor Description Stock Price Buy
DISTI # CHP-020TA
Avnet Americas - Tape and Reel (Alt: CHP-020TA) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 15 Weeks, 0 Days Container: Reel 0
  • 500 $1.1662
  • 1,000 $1.1603
  • 2,000 $0.9796
  • 3,000 $0.9650
  • 4,000 $0.9600
$0.9600 / $1.1662 Buy Now
DISTI # 87185225
Verical CHP-020TA Min Qty: 43 Package Multiple: 1 Americas - 500
  • 43 $2.6100
  • 50 $1.8500
  • 100 $1.6800
  • 200 $1.4600
  • 500 $1.3600
$1.3600 / $2.6100 Buy Now

Part Details for CHP-020TA

CHP-020TA CAD Models

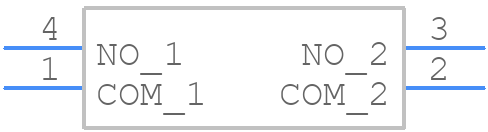

  • Part Symbol

    Part Symbol

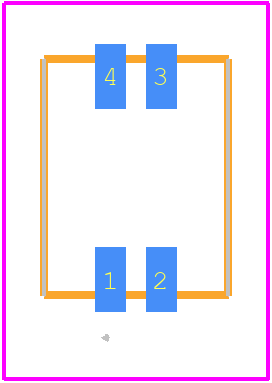

  • Footprint

    footprint

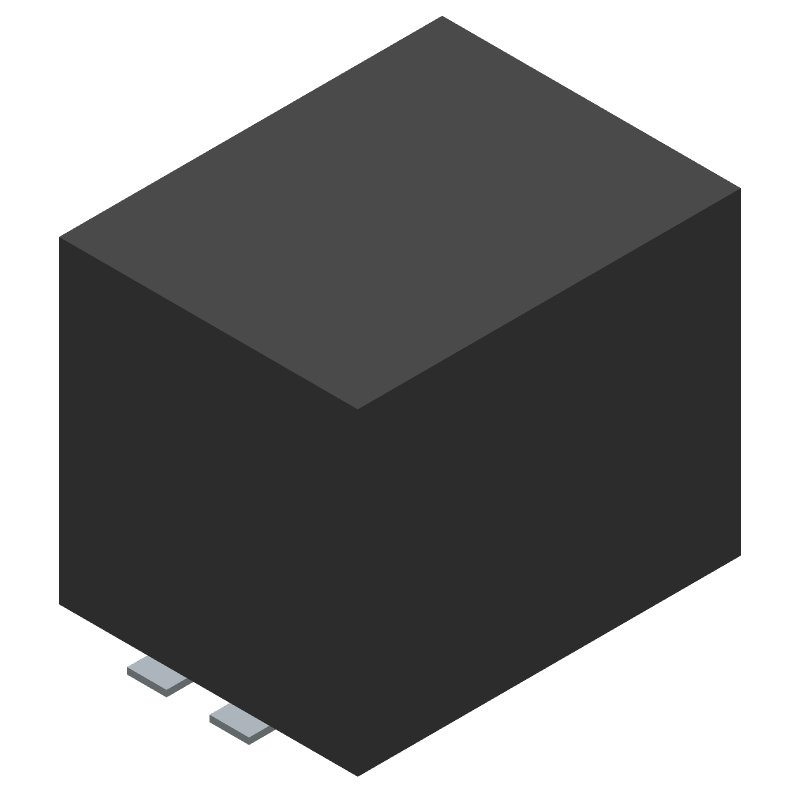

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CHP-020TA Part Data Attributes

Parametric Data
CHP-020TA Nidec Copal Electronics Corporation
Buy Now Datasheet
Compare Parts:
CHP-020TA Nidec Copal Electronics Corporation Piano Dip Switch, 2 Switches, SPST, Vertical, 0.025A, 24VDC, 4 PCB Hole Cnt,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer NIDEC COPAL ELECTRONICS CORP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.50.90.65
Factory Lead Time 15 Weeks
Samacsys Manufacturer Nidec Copal
Actuator Length 0.03 inch
Actuator Material POLYAMIDE
Actuator Type PIANO TYPE
Body Breadth 5.8928 mm
Body Height 4.5974 mm
Body Length or Diameter 4.5974 mm
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD
Contact Current(DC)-Max 0.025 A
Contact (DC) Max Rating R Load 0.025A@24VDC
Contact Resistance 0.05 mΩ
Contact Voltage(DC)-Max 24 V
Dielectric Withstand Volts 500VAC V
End Contact Material COPPER ALLOY
End Contact Plating GOLD
Housing Material POLYPHENYLENE SULPHIDE
Insulation Resistance 1000000000 Ω
Insulator Material POLYPHENYLENE SULPHIDE
JESD-609 Code e4
Number of Switch Sections 2
Operating Temperature-Max 85 °C
Operating Temperature-Min -40 °C
PCB Hole Count 4
Solderability REFLOW
Switch Action MOMENTARY
Switch Function SPST
Switch Type PIANO DIP SWITCH
Terminal Finish Gold (Au)
Terminal Material COPPER ALLOY

Alternate Parts for CHP-020TA
