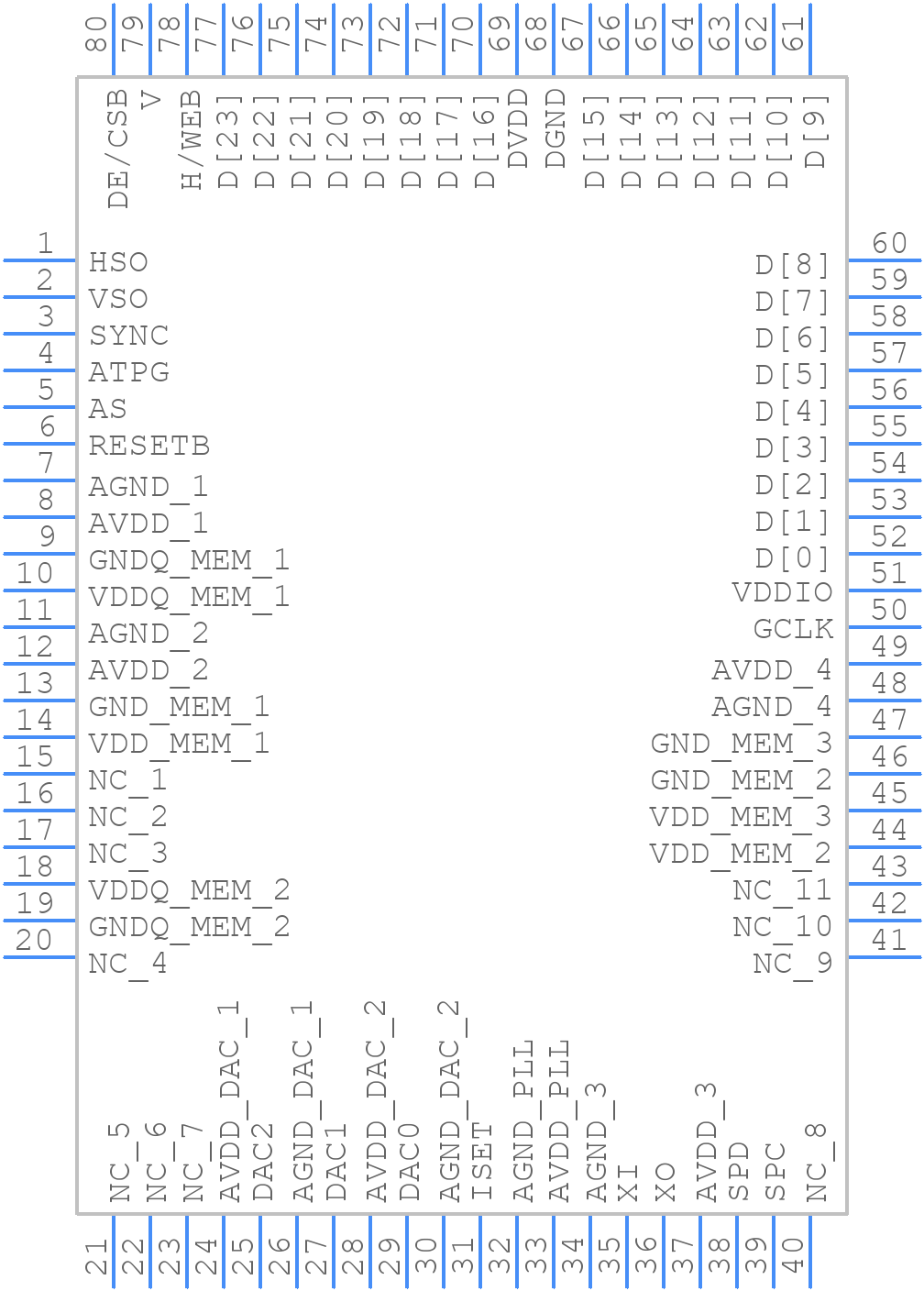

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CH7026B-TF by Chrontel Inc
Results Overview of CH7026B-TF by Chrontel Inc
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Renewable Energy
Robotics and Drones
Price & Stock for CH7026B-TF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Win Source Electronics | Video Encoder 3 DAC 80-Pin LQFP | 12958 |
|
$4.0182 / $5.1894 | Buy Now |
Part Details for CH7026B-TF
CH7026B-TF CAD Models
CH7026B-TF Part Data Attributes
|
|
CH7026B-TF
Chrontel Inc
Buy Now
Datasheet
|
Compare Parts:
CH7026B-TF
Chrontel Inc
Color Signal Encoder, CMOS, PQFP80, 10 X 10 MM, LEAD FREE, MS-026D, LQFP-80
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Contact Manufacturer | |
| Ihs Manufacturer | CHRONTEL INC | |
| Part Package Code | QFP | |
| Pin Count | 80 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Chrontel | |
| Additional Feature | IT ALSO REQUIRES 1.71V TO 1.89 V SUPPLY | |
| Consumer IC Type | COLOR SIGNAL ENCODER | |
| Input Type | RGB; R-Y; B-Y; Y | |
| JESD-30 Code | S-PQFP-G80 | |
| Length | 10 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 80 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -20 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP80,.47SQ,16 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max (Vsup) | 3.5 V | |
| Supply Voltage-Min (Vsup) | 2.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | OTHER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.4 mm | |
| Terminal Position | QUAD | |
| Video Standard | PAL; NTSC | |
| Width | 10 mm |
CH7026B-TF Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate, and use a common mode filter to reduce EMI.
-
Use shielded cables with a characteristic impedance of 100 ohms, and ensure the cable length is within the recommended maximum of 10 meters. Also, use a common mode filter and a shielded connector to reduce EMI.
-
The CH7026B-TF can operate from -40°C to 85°C, but the recommended operating temperature range is 0°C to 70°C for optimal performance and reliability.
-
Configure the CH7026B-TF in TMDS mode, and set the transmission rate to 6 Gbps. Ensure the HDMI 2.0 transmitter is enabled, and the clock frequency is set to 100 MHz.
-
Power up the device in the following sequence: VCC, then AVCC, and finally DVCC. Ensure the power supply voltage is stable and within the recommended range before applying the clock signal.
