Capacitors / Fixed Capacitors / CGA8P1X7R1C336M250KC
Datasheets
CGA8P1X7R1C336M250KC by: TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X7R, 15% TC, 33uF, Surface Mount, 1812, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT

Part Details for CGA8P1X7R1C336M250KC by TDK Corporation

Results Overview of CGA8P1X7R1C336M250KC by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Industrial Automation Healthcare Renewable Energy Robotics and Drones

CGA8P1X7R1C336M250KC Information

CGA8P1X7R1C336M250KC by TDK Corporation is a Fixed Capacitor.
Fixed Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CGA8P1X7R1C336M250KC

Part # Distributor Description Stock Price Buy
DISTI # 65T7520
Newark Multilayer Ceramic Capacitor, Cga Series, 33 - F, - 20%, X7R, 16 V, 1812 [4532 Metric] Rohs Compliant: Yes |Tdk CGA8P1X7R1C336M250KC RoHS: Compliant Min Qty: 500 Package Multiple: 1 Date Code: 0 Container: Reel 0
Buy Now
DISTI # 80X3220
Newark Cap, Mlcc, 33Uf, 16V, X7R, 1812, Capacitance:33Μf, Voltage(Dc):16V, Voltage(Ac):-, Capacitor Case/Package:1812 [4532 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X7R, Product Range:Cga Series, Product Width:3.2Mmrohs Compliant: Yes |Tdk CGA8P1X7R1C336M250KC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 0
  • 1 $1.7400
  • 10 $0.9620
  • 25 $0.9060
  • 50 $0.8500
  • 100 $0.7940
  • 250 $0.7280
  • 1,000 $0.6630
$0.6630 / $1.7400 Buy Now
DISTI # 445-7912-1-ND
DigiKey CAP CER 33UF 16V X7R 1812 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 3998
In Stock
  • 1 $1.4900
  • 10 $0.9810
  • 100 $0.7192
  • 500 $0.6272
  • 1,000 $0.5943
  • 1,500 $0.5778
  • 2,500 $0.5619
  • 3,500 $0.5489
  • 5,000 $0.5386
  • 12,500 $0.5165
$0.5165 / $1.4900 Buy Now
DISTI # CGA8P1X7R1C336M250KC
Avnet Americas Multilayer Ceramic Capacitor, 33 uF, 16 V, ? 20%, X7R, 1812 [4532 Metric] - Tape and Reel (Alt: CGA8P1X7R1C336M250KC) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 24 Weeks, 0 Days Container: Reel 0
  • 500 $0.5046
  • 1,000 $0.4900
  • 2,000 $0.4755
  • 3,000 $0.4610
  • 4,000 $0.4465
$0.4465 / $0.5046 Buy Now
DISTI # 810-CGA8P1X7R1C336M
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT 33UF 16V 20% 1812 RoHS: Compliant 3271
  • 1 $1.4900
  • 10 $0.9810
  • 100 $0.7200
  • 500 $0.6270
  • 1,000 $0.5770
  • 2,500 $0.5480
  • 5,000 $0.5050
  • 10,000 $0.4920
$0.4920 / $1.4900 Buy Now
DISTI # CGA8P1X7R1C336M250KC
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT 33UF 16V 20% 1812 RoHS: Compliant pbFree: Pb-Free Min Qty: 500 Package Multiple: 500 Container: Reel Americas - 0
  • 500 $0.4980
  • 1,000 $0.4880
  • 1,500 $0.4790
  • 2,000 $0.4690
  • 2,500 $0.4600
  • 4,000 $0.4510
$0.4510 / $0.4980 Buy Now
DISTI # CGA8P1X7R1C336M250KC
Avnet Abacus Multilayer Ceramic Capacitor 33 uF 16 V 20 X7R 1812 4532 Metric - Tape and Reel (Alt: CGA8P1X7R1C336M250KC) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 41 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now

Part Details for CGA8P1X7R1C336M250KC

CGA8P1X7R1C336M250KC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

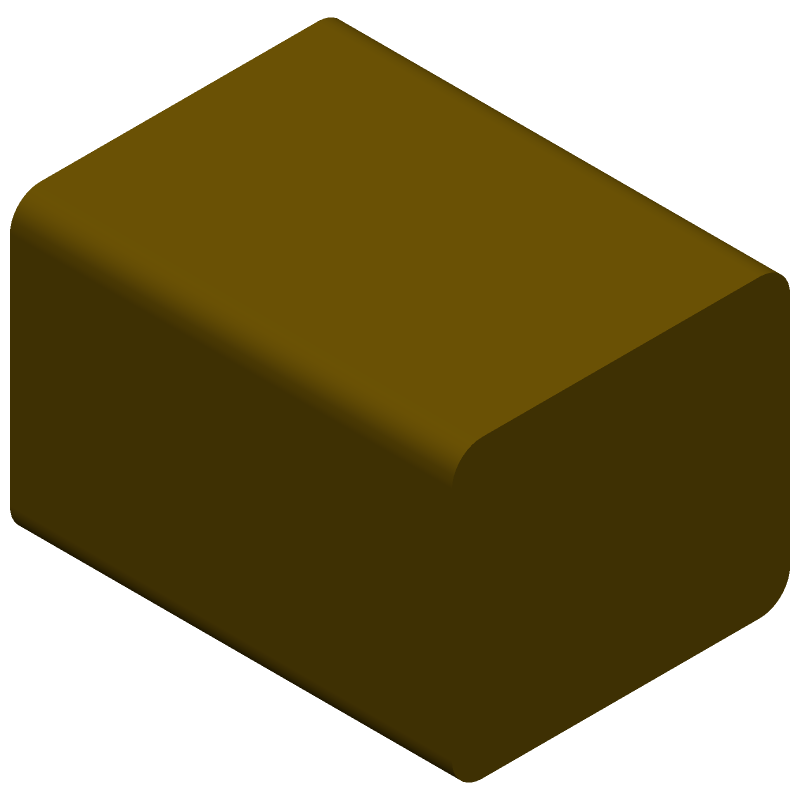

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CGA8P1X7R1C336M250KC Part Data Attributes

Parametric Data
CGA8P1X7R1C336M250KC TDK Corporation
Buy Now Datasheet
Compare Parts:
CGA8P1X7R1C336M250KC TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X7R, 15% TC, 33uF, Surface Mount, 1812, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Not Recommended
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 24 Weeks
Samacsys Manufacturer TDK
Capacitance 33 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 2.5 mm
JESD-609 Code e3
Length 4.5 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 20%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 INCH
Positive Tolerance 20%
Rated (DC) Voltage (URdc) 16 V
Reference Standard AEC-Q200
Size Code 1812
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Width 3.2 mm

Alternate Parts for CGA8P1X7R1C336M250KC

This table gives cross-reference parts and alternative options found for CGA8P1X7R1C336M250KC. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CGA8P1X7R1C336M250KC, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
C4532X7R1C336M250KC TDK Corporation $0.5182 Ceramic Capacitor, Multilayer, Ceramic, 16V, 20% +Tol, 20% -Tol, X7R, 15% TC, 33uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT CGA8P1X7R1C336M250KC vs C4532X7R1C336M250KC
C4532X7R1C336M TDK Corporation Check for Price Ceramic Capacitor, Ceramic CGA8P1X7R1C336M250KC vs C4532X7R1C336M
C4532X7R1C336M(250KC) TDK Corporation Check for Price CAPACITOR, CERAMIC, MULTILAYER, 16 V, X7R, 33 uF, SURFACE MOUNT, 1812, CHIP, ROHS COMPLIANT CGA8P1X7R1C336M250KC vs C4532X7R1C336M(250KC)

CGA8P1X7R1C336M250KC Related Parts

CGA8P1X7R1C336M250KC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the CGA8P1X7R1C336M250KC capacitor is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the CGA8P1X7R1C336M250KC capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.

  • The CGA8P1X7R1C336M250KC capacitor is rated for operation up to 125°C, but it's not recommended to use it above 105°C for extended periods to ensure reliability and longevity.

  • The maximum voltage derating for the CGA8P1X7R1C336M250KC capacitor is 80% of the rated voltage, which is 200V in this case.

  • Yes, the CGA8P1X7R1C336M250KC capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
