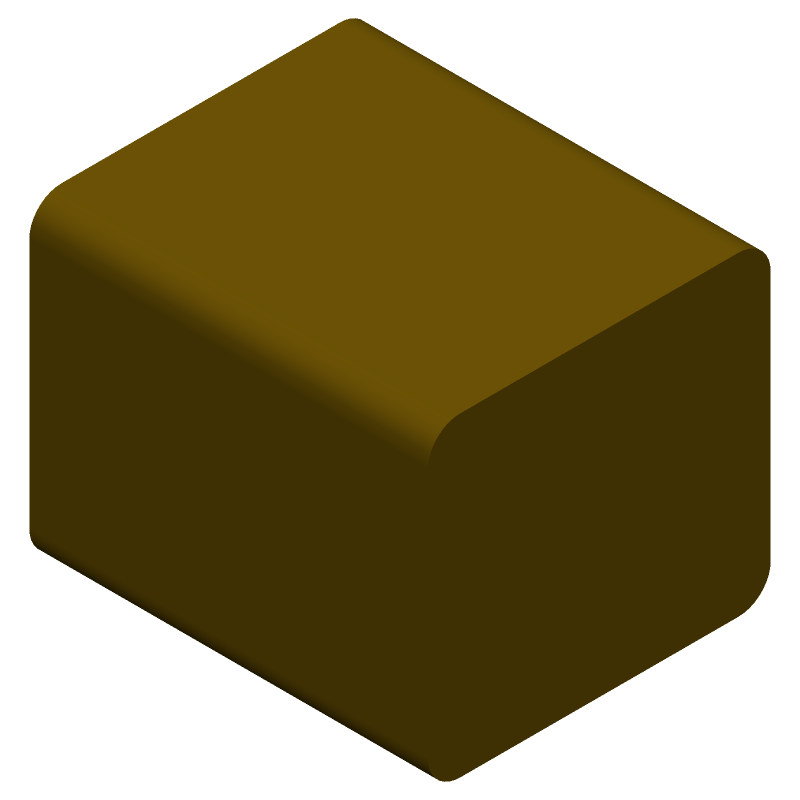

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CGA6M3X7R2E224K200AE by TDK Corporation
Results Overview of CGA6M3X7R2E224K200AE by TDK Corporation
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
CGA6M3X7R2E224K200AE Information
CGA6M3X7R2E224K200AE by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CGA6M3X7R2E224K200AE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39AH0512
|
Newark | Cap, Aec-Q200, 0.22Uf, 250V, Mlcc, 1210 Rohs Compliant: Yes |Tdk CGA6M3X7R2E224K200AE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 0 |
|
$0.2900 / $0.7540 | Buy Now |
|
DISTI #
445-8776-1-ND
|
DigiKey | CAP CER 0.22UF 250V X7R 1210 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
3313 In Stock |
|
$0.1910 / $0.7200 | Buy Now |
|
DISTI #
CGA6M3X7R2E224K200AE
|
Avnet Americas | Multilayer Ceramic Capacitor, 0.22 uF, 250 V, ? 10%, X7R, 1210 [3225 Metric] - Tape and Reel (Alt: CGA6M3X7R2E224K200AE) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.1539 / $0.1755 | Buy Now |
|
DISTI #
810-CGA6M3X7R2E224KS
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 1210 250V 0.22uF SOFT 10% AEC-Q200 RoHS: Compliant | 1214 |
|
$0.1960 / $0.6100 | Buy Now |
|
DISTI #
V72:2272_06586028
|
Arrow Electronics | Cap Ceramic 0.22uF 250V X7R 10% Pad SMD 1210 Soft Termination 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2230 Container: Cut Strips | Americas - 47 |
|
$0.1732 | Buy Now |
|
|
Bristol Electronics | Min Qty: 12 | 2000 |
|
$0.1260 / $0.4500 | Buy Now |
|
|
Quest Components | 1600 |
|
$0.1560 / $0.6000 | Buy Now | |
|
DISTI #
CGA6M3X7R2E224KAE
|
TME | Capacitor: ceramic, MLCC, 220nF, 250V, X7R, ±10%, SMD, 1210 Min Qty: 1000 | 0 |
|
$0.1900 | RFQ |
|
DISTI #
CGA6M3X7R2E224K200AE
|
Avnet Abacus | Multilayer Ceramic Capacitor 022 uF 250 V 10 X7R 1210 3225 Metric - Tape and Reel (Alt: CGA6M3X7R2E224K200AE) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for CGA6M3X7R2E224K200AE
CGA6M3X7R2E224K200AE CAD Models
CGA6M3X7R2E224K200AE Part Data Attributes
|
|
CGA6M3X7R2E224K200AE
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CGA6M3X7R2E224K200AE
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 250V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.22uF, Surface Mount, 1210, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 0.22 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 2 mm | |
| JESD-609 Code | e3 | |
| Length | 3.2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 250 V | |
| Reference Standard | AEC-Q200 | |
| Size Code | 1210 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 2.5 mm |
CGA6M3X7R2E224K200AE Frequently Asked Questions (FAQ)
-
TDK recommends a soldering temperature profile with a peak temperature of 260°C for 10-30 seconds, and a maximum of 3 reflows.
-
The ESR of the CGA6M3X7R2E224K200AE is 0.015Ω, which is relatively low. This means it can handle high-frequency applications and has low power loss.
-
Yes, the CGA6M3X7R2E224K200AE is a high-reliability capacitor that meets the requirements of various industries, including aerospace and automotive, due to its high-quality materials and manufacturing process.
-
Yes, the CGA6M3X7R2E224K200AE has a maximum operating temperature of 125°C, making it suitable for use in high-temperature applications.
-
The capacitance of the CGA6M3X7R2E224K200AE decreases by approximately 10% at 125°C compared to its value at 20°C.
