CGA6M1C0G3A152J200AE Information
CGA6M1C0G3A152J200AE by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CGA6M1C0G3A152J200AE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39AH0502
|
Newark | Cap, Aec-Q200, 1500Pf, 1Kv, Mlcc, 1210 Rohs Compliant: Yes |Tdk CGA6M1C0G3A152J200AE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 190 |
|
$0.8590 / $1.8100 | Buy Now |
|
DISTI #
445-175246-1-ND
|
DigiKey | CAP CER 1500PF 1000V C0GNP0 1210 Min Qty: 1 Lead time: 12 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
520 In Stock |
|
$0.5444 / $1.5400 | Buy Now |
|
DISTI #
CGA6M1C0G3A152J200AE
|
Avnet Americas | Multilayer Ceramic Capacitor, 1500 pF, 1000 V, ? 5%, C0G (NP0), 1210 [3225 Metric] - Tape and Reel (Alt: CGA6M1C0G3A152J200AE) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.4332 / $0.4940 | Buy Now |
|
DISTI #
810-CGA6M1C0G3A152J2
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT 1210 1000V 1.5nF C0G 5% AEC-Q200 RoHS: Compliant | 200 |
|
$0.5410 / $1.5400 | Buy Now |
|
DISTI #
V72:2272_18973025
|
Arrow Electronics | Cap Ceramic 0.0015uF 1000V C0G 5% Pad SMD 1210 Soft Termination 125°C Automotive T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 1802 Container: Cut Strips | Americas - 612 |
|
$0.0207 / $0.0616 | Buy Now |
|
DISTI #
84866029
|
Verical | Cap Ceramic 0.0015uF 1000V C0G 5% Pad SMD 1210 Soft Termination 125°C Automotive T/R RoHS: Compliant Min Qty: 56 Package Multiple: 1 | Americas - 1000 |
|
$0.4590 / $0.4640 | Buy Now |
|
DISTI #
CGA6M1C0G3A152J200AE
|
TTI | Multilayer Ceramic Capacitors MLCC - SMD/SMT 1210 1000V 1.5nF C0G 5% AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Americas - 2000 In Stock |
|
$0.5570 / $0.6140 | Buy Now |
|
DISTI #
CGA6M1C0G3A152JAE
|
TME | Capacitor: ceramic, MLCC, 1.5nF, 1kV, C0G (NP0), ±5%, SMD, 1210 Min Qty: 1000 | 0 |
|
$0.6400 | RFQ |
|
DISTI #
CGA6M1C0G3A152J200AE
|
Avnet Abacus | Multilayer Ceramic Capacitor 1500 pF 1000 V 5 C0G NP0 1210 3225 Metric (Alt: CGA6M1C0G3A152J200AE) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
CGA6M1C0G3A152J200AE
|
Chip One Stop | Passives RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 1000 |
|
$0.4480 / $0.4620 | Buy Now |
Part Details for CGA6M1C0G3A152J200AE

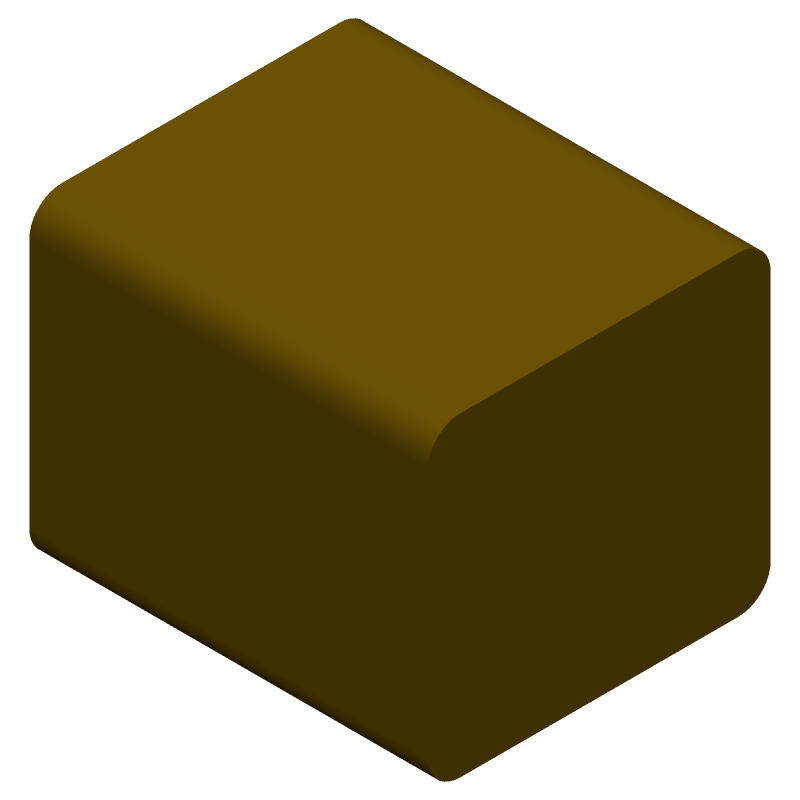

CGA6M1C0G3A152J200AE CAD Models
