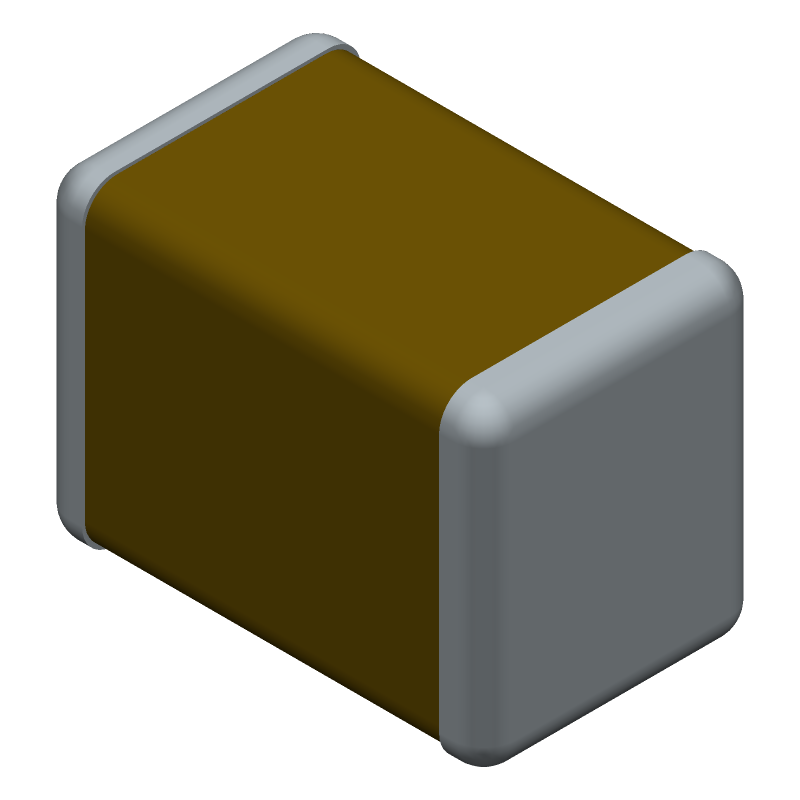

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CGA4J3X7S2A105M125AB by TDK Corporation
Results Overview of CGA4J3X7S2A105M125AB by TDK Corporation
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
CGA4J3X7S2A105M125AB Information
CGA4J3X7S2A105M125AB by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CGA4J3X7S2A105M125AB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
71AH2835
|
Newark | Cap, 1Uf, 100V, Mlcc, 0805, Capacitance:1Μf, Voltage(Dc):100V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 20%, Dielectric Characteristic:X7S, Product Range:Cga Series, Product Length:2.01Mm Rohs Compliant: Yes |Tdk CGA4J3X7S2A105M125AB RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 19592 |
|
$0.0990 / $0.1260 | Buy Now |
|
DISTI #
445-12788-1-ND
|
DigiKey | CAP CER 1UF 100V X7S 0805 Min Qty: 1 Lead time: 24 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
11770 In Stock |
|
$0.0929 / $0.4300 | Buy Now |
|
DISTI #
71AH2835
|
Avnet Americas | Multilayer Ceramic Capacitor, 1 uF, 100 V, ? 20%, X7S, 0805 [2012 Metric] - Product that comes on tape, but is not reeled (Alt: 71AH2835) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 5153 Partner Stock |
|
$0.1540 / $0.4850 | Buy Now |
|
DISTI #
CGA4J3X7S2A105M125AB
|
Avnet Americas | Multilayer Ceramic Capacitor, 1 uF, 100 V, ? 20%, X7S, 0805 [2012 Metric] - Tape and Reel (Alt: CGA4J3X7S2A105M125AB) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$0.0747 / $0.0951 | Buy Now |
|
DISTI #
810-CGA4J3X7S2A105MB
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT CGA 0805 100V 1uF X7S 20% AEC-Q200 RoHS: Compliant | 7661 |
|
$0.0920 / $0.4400 | Buy Now |
|
DISTI #
69097020
|
Verical | Cap Ceramic 1uF 100V X7S 20% Pad SMD 0805 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 366 Package Multiple: 1 | Americas - 1600 |
|
$0.1580 / $0.2380 | Buy Now |
|
DISTI #
CGA4J3X7S2A105MAB
|
TME | Capacitor: ceramic, MLCC, 1uF, 100V, X7S, ±20%, SMD, 0805 Min Qty: 2000 | 0 |
|
$0.0840 / $0.0970 | RFQ |
|
DISTI #
CGA4J3X7S2A105M125AB
|
Avnet Abacus | Multilayer Ceramic Capacitor 1 uF 100 V 20 X7S 0805 2012 Metric - Tape and Reel (Alt: CGA4J3X7S2A105M125AB) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for CGA4J3X7S2A105M125AB
CGA4J3X7S2A105M125AB CAD Models
CGA4J3X7S2A105M125AB Part Data Attributes
|
|
CGA4J3X7S2A105M125AB
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CGA4J3X7S2A105M125AB
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 100V, 20% +Tol, 20% -Tol, X7S, 22% TC, 1uF, Surface Mount, 0805, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 1 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 1.25 mm | |
| JESD-609 Code | e3 | |
| Length | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 20% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 20% | |
| Rated (DC) Voltage (URdc) | 100 V | |
| Reference Standard | AEC-Q200 | |
| Size Code | 0805 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X7S | |
| Temperature Coefficient | 22% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 1.25 mm |
CGA4J3X7S2A105M125AB Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CGA4J3X7S2A105M125AB capacitor is between 250°C to 260°C for a maximum of 3 seconds.
-
Yes, the CGA4J3X7S2A105M125AB capacitor is designed to withstand high vibrations and is suitable for use in applications where vibration is a concern.
-
The maximum allowable DC voltage for the CGA4J3X7S2A105M125AB capacitor is 50V.
-
Yes, the CGA4J3X7S2A105M125AB capacitor is AEC-Q200 qualified and suitable for use in automotive applications.
-
The ESR of the CGA4J3X7S2A105M125AB capacitor is 0.015 ohms maximum at 100 kHz.
