Capacitors / Ceramic Capacitors / CGA3EAC0G2A103J080AC
Datasheets
CGA3EAC0G2A103J080AC by: TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

Part Details for CGA3EAC0G2A103J080AC by TDK Corporation

Results Overview of CGA3EAC0G2A103J080AC by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

CGA3EAC0G2A103J080AC Information

CGA3EAC0G2A103J080AC by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CGA3EAC0G2A103J080AC

Part # Distributor Description Stock Price Buy
DISTI # 71AH2787
Newark Cap, 10000Pf, 100V, Mlcc, 0603, Capacitance:0.01Μf, Voltage(Dc):100V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 5%, Dielectric Characteristic:C0G/Np0, Product Range:Cga Series, Product Length:1.6Mm Rohs Compliant: Yes |Tdk CGA3EAC0G2A103J080AC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 86368
  • 1 $0.0870
  • 10 $0.0870
  • 25 $0.0870
  • 50 $0.0870
  • 100 $0.0870
  • 250 $0.0800
  • 1,000 $0.0740
$0.0740 / $0.0870 Buy Now
DISTI # 445-16158-1-ND
DigiKey CAP CER 10000PF 100V C0G 0603 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 882113
In Stock
  • 1 $0.3300
  • 10 $0.1970
  • 100 $0.1284
  • 1,000 $0.0927
  • 4,000 $0.0706
  • 8,000 $0.0613
  • 12,000 $0.0589
  • 20,000 $0.0586
  • 28,000 $0.0584
  • 40,000 $0.0574
  • 100,000 $0.0563
$0.0563 / $0.3300 Buy Now
DISTI # CGA3EAC0G2A103J080AC
Avnet Americas SMD Multilayer Ceramic Capacitor, 0.01 ?F, 100 V, 0603 [1608 Metric], ? 5%, C0G / NP0 - Tape and Reel (Alt: CGA3EAC0G2A103J080AC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days Container: Reel 12000
  • 4,000 $0.0554
  • 8,000 $0.0544
  • 16,000 $0.0536
  • 24,000 $0.0527
  • 32,000 $0.0517
$0.0517 / $0.0554 Buy Now
DISTI # 71AH2787
Avnet Americas SMD Multilayer Ceramic Capacitor, 0.01 ?F, 100 V, 0603 [1608 Metric], ? 5%, C0G / NP0 - Product that comes on tape, but is not reeled (Alt: 71AH2787) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 23 Weeks, 4 Days Container: Ammo Pack 22093 Partner Stock
  • 1 $0.3250
  • 10 $0.1590
  • 25 $0.1430
  • 50 $0.1270
  • 100 $0.1110
$0.1110 / $0.3250 Buy Now
DISTI # 810-CGA3EAC0G2A103JC
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT ESD 0603 100V 0.01uF C0G 5% AEC-Q200 RoHS: Compliant 277269
  • 1 $0.3300
  • 10 $0.1640
  • 100 $0.1260
  • 500 $0.1200
  • 1,000 $0.0930
  • 4,000 $0.0670
  • 8,000 $0.0580
  • 24,000 $0.0560
$0.0560 / $0.3300 Buy Now
DISTI # V72:2272_06585097
Arrow Electronics Cap Ceramic 0.01uF 100V C0G 5% Pad SMD 0603 150°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 52 Package Multiple: 1 Lead time: 16 Weeks Date Code: 2149 Container: Cut Strips Americas - 52
  • 52 $0.0766
$0.0766 Buy Now
Future Electronics CGA Series 0603 0.01 uF 100 V ±5 %Tolerance C0G/NP0 Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks Container: Reel 40000
Reel
  • 4,000 $0.0938
$0.0938 Buy Now
DISTI # 87978095
Verical Cap Ceramic 0.01uF 100V C0G 5% Pad SMD 0603 150°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 489 Package Multiple: 1 Americas - 8000
  • 489 $0.1434
  • 612 $0.1145
  • 1,000 $0.1054
  • 2,000 $0.0977
  • 4,000 $0.0913
  • 20,000 $0.0861
$0.0861 / $0.1434 Buy Now
Quest Components CERAMIC CAPACITOR, MULTILAYER, CERAMIC, 100V, 5% +TOL, 5% -TOL, C0G, 30PPM/CEL TC, 0.01UF, SURFACE MOUNT, 0603 113
  • 1 $0.1712
  • 30 $0.1284
  • 79 $0.1070
$0.1070 / $0.1712 Buy Now
DISTI # CGA3EAC0G2A103J080AC
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT ESD 0603 100V 0.01uF C0G 5% AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 4000 Package Multiple: 4000 Container: Reel Americas - 16000
In Stock
  • 4,000 $0.0650
  • 8,000 $0.0610
  • 12,000 $0.0600
  • 20,000 $0.0590
  • 32,000 $0.0570
  • 40,000 $0.0560
$0.0560 / $0.0650 Buy Now
Future Electronics CGA Series 0603 0.01 uF 100 V �5 %Tolerance C0G/NP0 Multilayer Ceramic Capacitor Min Qty: 4000 Package Multiple: 4000 124000
null
  • 4,000 $0.0938
$0.0938 Buy Now
DISTI # CGA3EAC0G2A103JAC
TME Capacitor: ceramic, MLCC, 10nF, 100V, C0G (NP0), ±5%, SMD, 0603 Min Qty: 1 0
  • 1 $0.2965
  • 10 $0.1385
  • 50 $0.1149
  • 100 $0.1057
  • 500 $0.0841
  • 1,000 $0.0749
  • 2,000 $0.0657
  • 4,000 $0.0605
$0.0605 / $0.2965 RFQ
DISTI # CGA3EAC0G2A103J080AC
Avnet Abacus SMD Multilayer Ceramic Capacitor 001 F 100 V 0603 1608 Metric 5 C0G NP0 - Tape and Reel (Alt: CGA3EAC0G2A103J080AC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
DISTI # CGA3EAC0G2A103J080AC
Avnet Asia SMD Multilayer Ceramic Capacitor, 0.01 ?F, 100 V, 0603 [1608 Metric], ? 5%, C0G / NP0 (Alt: CGA3EAC0G2A103J080AC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 24 Weeks, 0 Days 20000
  • 4,000 $0.0338
  • 8,000 $0.0315
$0.0315 / $0.0338 Buy Now
New Advantage Corporation   RoHS: Compliant Min Qty: 1 Package Multiple: 4000 100000
  • 4,000 $0.1563
  • 100,000 $0.1443
$0.1443 / $0.1563 Buy Now

Part Details for CGA3EAC0G2A103J080AC

CGA3EAC0G2A103J080AC CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

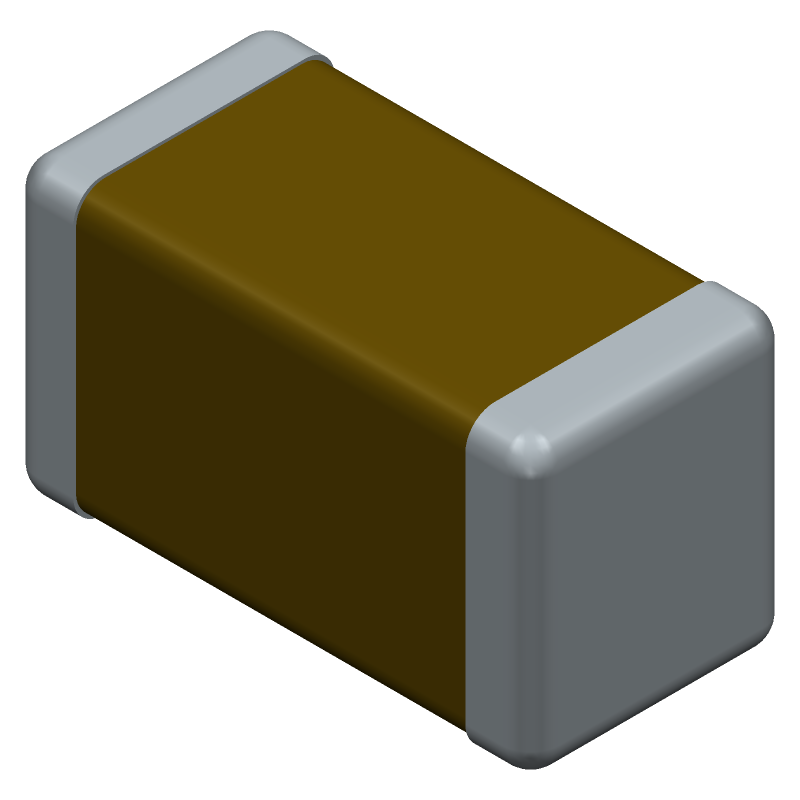

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CGA3EAC0G2A103J080AC Part Data Attributes

Parametric Data
CGA3EAC0G2A103J080AC TDK Corporation
Buy Now Datasheet
Compare Parts:
CGA3EAC0G2A103J080AC TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.01uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TDK CORP
Package Description CHIP, ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 23 Weeks, 4 Days
Samacsys Manufacturer TDK
Capacitance 0.01 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 5%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Packing Method TR, 7 INCH
Positive Tolerance 5%
Rated (DC) Voltage (URdc) 100 V
Size Code 0603
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND

CGA3EAC0G2A103J080AC Related Parts

CGA3EAC0G2A103J080AC Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the CGA3EAC0G2A103J080AC is 260°C for 10 seconds or less.

  • Yes, the CGA3EAC0G2A103J080AC is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.

  • The maximum operating temperature for the CGA3EAC0G2A103J080AC is 125°C.

  • Yes, the CGA3EAC0G2A103J080AC is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.

  • The ESR of the CGA3EAC0G2A103J080AC is 0.1 ohms or less at 100 MHz.
