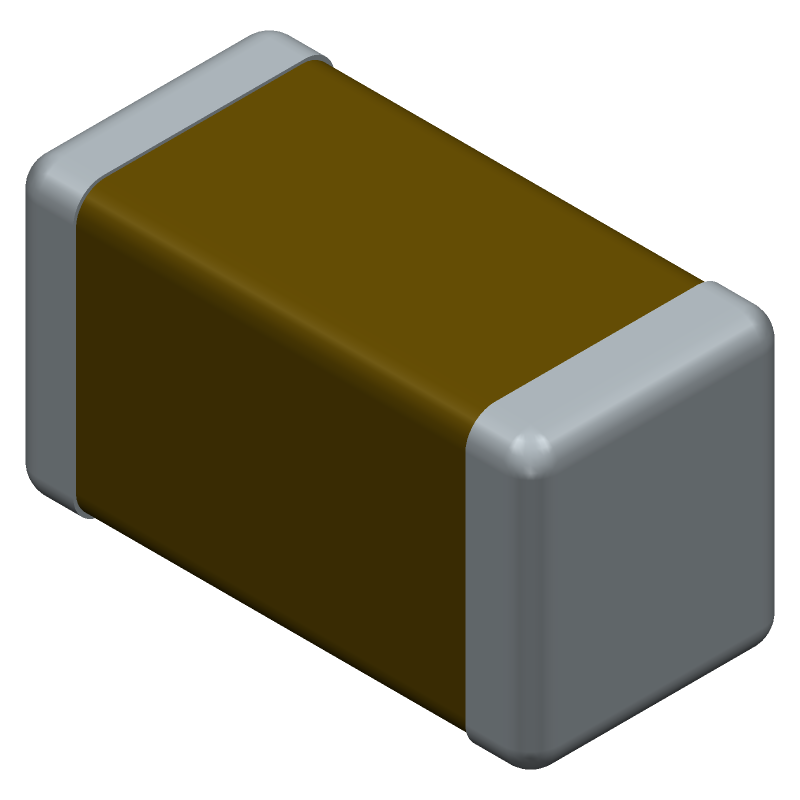

Part Details for CGA3E1X5R1C225K080AC by TDK Corporation
Results Overview of CGA3E1X5R1C225K080AC by TDK Corporation
- Distributor Offerings: (17 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Industrial Automation
Healthcare
Renewable Energy
Robotics and Drones
CGA3E1X5R1C225K080AC Information
CGA3E1X5R1C225K080AC by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for CGA3E1X5R1C225K080AC
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
52W9635
|
Newark | Cap, 2.2Uf, 16V, Mlcc, 0603, Capacitance:2.2Μf, Voltage(Dc):16V, Capacitor Case/Package:0603 [1608 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X5R, Product Range:Cga Series, Product Length:1.6Mm Rohs Compliant: Yes |Tdk CGA3E1X5R1C225K080AC RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape | 17580 |
|
$0.0360 / $0.0390 | Buy Now |
|
DISTI #
445-6932-1-ND
|
DigiKey | CAP CER 2.2UF 16V X5R 0603 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
29873 In Stock |
|
$0.0289 / $0.1900 | Buy Now |
|
DISTI #
52W9635
|
Avnet Americas | Multilayer Ceramic Capacitor, 2.2 uF, 16 V, ? 10%, X5R, 0603 [1608 Metric] - Product that comes on tape, but is not reeled (Alt: 52W9635) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack | 9980 Partner Stock |
|
$0.0510 / $0.1760 | Buy Now |
|
DISTI #
CGA3E1X5R1C225K080AC
|
Avnet Americas | Multilayer Ceramic Capacitor, 2.2 uF, 16 V, ? 10%, X5R, 0603 [1608 Metric] - Tape and Reel (Alt: CGA3E1X5R1C225K080AC) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 16 Weeks, 0 Days Container: Reel | 0 |
|
$0.0230 / $0.0246 | Buy Now |
|
DISTI #
810-CGA3E1X5R1C225K
|
Mouser Electronics | Multilayer Ceramic Capacitors MLCC - SMD/SMT CGA 0603 16V 2.2uF X5R 10% AEC-Q200 RoHS: Compliant | 45196 |
|
$0.0280 / $0.2000 | Buy Now |
|
DISTI #
V36:1790_06584259
|
Arrow Electronics | Cap Ceramic 2.2uF 16V X5R 10% Pad SMD 0603 85°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks Date Code: 2235 | Americas - 28000 |
|
$0.0238 | Buy Now |
|
DISTI #
V72:2272_06584259
|
Arrow Electronics | Cap Ceramic 2.2uF 16V X5R 10% Pad SMD 0603 85°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 456 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2229 Container: Cut Strips | Americas - 456 |
|
$0.0289 | Buy Now |
|
|
Future Electronics | CGA Series 0603 2.2 uF 16 V ±10% X5R Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Container: Cut Tape/Mini-Reel | 1095Cut Tape/Mini-Reel |
|
$0.0834 / $0.2450 | Buy Now |
|
|
Future Electronics | CGA Series 0603 2.2 uF 16 V ±10% X5R Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 4000 Package Multiple: 4000 Lead time: 12 Weeks Container: Reel | 0Reel |
|
$0.0393 / $0.0410 | Buy Now |
|
DISTI #
87996452
|
Verical | Cap Ceramic 2.2uF 16V X5R 10% Pad SMD 0603 85°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Date Code: 2235 | Americas - 28000 |
|
$0.0238 | Buy Now |
Part Details for CGA3E1X5R1C225K080AC
CGA3E1X5R1C225K080AC CAD Models
CGA3E1X5R1C225K080AC Part Data Attributes
|
|
CGA3E1X5R1C225K080AC
TDK Corporation
Buy Now
Datasheet
|
Compare Parts:
CGA3E1X5R1C225K080AC
TDK Corporation
Ceramic Capacitor, Multilayer, Ceramic, 16V, 10% +Tol, 10% -Tol, X5R, 15% TC, 2.2uF, Surface Mount, 0603, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TDK CORP | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.24.00.20 | |
| Factory Lead Time | 16 Weeks, 3 Days | |
| Samacsys Manufacturer | TDK | |
| Capacitance | 2.2 µF | |
| Capacitor Type | CERAMIC CAPACITOR | |
| Dielectric Material | CERAMIC | |
| Height | 0.8 mm | |
| JESD-609 Code | e3 | |
| Length | 1.6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Multilayer | Yes | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Packing Method | TR, 7 INCH | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 16 V | |
| Reference Standard | AEC-Q200 | |
| Size Code | 0603 | |
| Surface Mount | YES | |
| Temperature Characteristics Code | X5R | |
| Temperature Coefficient | 15% ppm/°C | |
| Terminal Finish | MATTE TIN OVER NICKEL | |
| Terminal Shape | WRAPAROUND | |
| Width | 0.8 mm |
CGA3E1X5R1C225K080AC Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for the CGA3E1X5R1C225K080AC is 260°C for 10 seconds or less.
-
Yes, the CGA3E1X5R1C225K080AC is a high-frequency capacitor with a self-resonant frequency of 1.5 GHz, making it suitable for high-frequency applications.
-
The maximum operating temperature for the CGA3E1X5R1C225K080AC is 125°C.
-
Yes, the CGA3E1X5R1C225K080AC is RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
-
The ESR of the CGA3E1X5R1C225K080AC is 0.08 ohms at 100 kHz.
