Capacitors / Ceramic Capacitors / CGA2B2C0G1H080D050BA
Datasheets
CGA2B2C0G1H080D050BA by: TDK Corporation

Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0402, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT

Part Details for CGA2B2C0G1H080D050BA by TDK Corporation

Results Overview of CGA2B2C0G1H080D050BA by TDK Corporation

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Industrial Automation Healthcare Renewable Energy Robotics and Drones

CGA2B2C0G1H080D050BA Information

CGA2B2C0G1H080D050BA by TDK Corporation is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for CGA2B2C0G1H080D050BA

Part # Distributor Description Stock Price Buy
DISTI # 52W9560
Newark Cap, 8Pf, 50V, Mlcc, 0402, Capacitance:8Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 0.5Pf, Dielectric Characteristic:C0G/Np0, Product Range:Cga Series, Product Length:1.02Mm Rohs Compliant: Yes |Tdk CGA2B2C0G1H080D050BA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Cut Tape 9517
  • 1 $0.0060
  • 25 $0.0060
  • 100 $0.0060
$0.0060 Buy Now
DISTI # 40Y2196
Newark Cap, 8Pf, 50V, Mlcc, 0402, Capacitance:8Pf, Voltage(Dc):50V, Capacitor Case/Package:0402 [1005 Metric], Capacitance Tolerance:± 0.5Pf, Dielectric Characteristic:C0G/Np0, Product Range:Cga Series, Product Length:1.02Mm Rohs Compliant: Yes |Tdk CGA2B2C0G1H080D050BA RoHS: Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 1 Container: Reel 0
  • 10,000 $0.0090
$0.0090 Buy Now
DISTI # 445-5582-1-ND
DigiKey CAP CER 8PF 50V C0G 0402 Min Qty: 1 Lead time: 16 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) 104629
In Stock
  • 1 $0.1000
  • 10 $0.0420
  • 100 $0.0243
  • 1,000 $0.0155
  • 2,500 $0.0133
  • 5,000 $0.0120
  • 10,000 $0.0087
  • 20,000 $0.0080
  • 30,000 $0.0080
  • 50,000 $0.0074
  • 70,000 $0.0074
  • 100,000 $0.0074
  • 250,000 $0.0073
  • 500,000 $0.0073
  • 1,000,000 $0.0072
$0.0072 / $0.1000 Buy Now
DISTI # 52W9560
Avnet Americas SMD Multilayer Ceramic Capacitor, 8 pF, 50 V, 0402 [1005 Metric], ? 0.5pF, C0G / NP0 - Product that comes on tape, but is not reeled (Alt: 52W9560) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 3 Days Container: Ammo Pack 9517 Partner Stock
  • 1 $0.0980
  • 25 $0.0280
  • 100 $0.0170
  • 250 $0.0160
  • 500 $0.0150
$0.0150 / $0.0980 Buy Now
DISTI # CGA2B2C0G1H080D050
Avnet Americas SMD Multilayer Ceramic Capacitor, 8 pF, 50 V, 0402 [1005 Metric], ? 0.5pF, C0G / NP0 - Tape and Reel (Alt: CGA2B2C0G1H080D050) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks, 0 Days Container: Reel 0
  • 10,000 $0.0062
  • 20,000 $0.0060
  • 40,000 $0.0060
  • 60,000 $0.0059
  • 80,000 $0.0057
$0.0057 / $0.0062 Buy Now
DISTI # 810-CGA2B2C0G1H080D
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT CGA 0402 50V 8pF C0G 0.50pF AEC-Q200 RoHS: Compliant 52238
  • 1 $0.1000
  • 10 $0.0360
  • 100 $0.0200
  • 500 $0.0170
  • 1,000 $0.0160
  • 2,500 $0.0130
  • 10,000 $0.0080
  • 50,000 $0.0070
$0.0070 / $0.1000 Buy Now
DISTI # E02:0323_06887481
Arrow Electronics Cap Ceramic 8pF 50V C0G 0.5pF Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 12 Weeks Date Code: 2418 Europe - 690000
  • 10,000 $0.0061
$0.0061 Buy Now
DISTI # V72:2272_06583674
Arrow Electronics Cap Ceramic 8pF 50V C0G 0.5pF Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks Container: Cut Strips Americas - 689
  • 689 $0.0071
$0.0071 Buy Now
Future Electronics CGA Series 0402 8 pF 50 V ±0.5 %Tolerance C0G/NP0 Multilayer Ceramic Capacitor RoHS: Compliant pbFree: Yes Min Qty: 10000 Package Multiple: 10000 Lead time: 16 Weeks Container: Reel 60000
Reel
  • 10,000 $0.0110
  • 20,000 $0.0109
  • 30,000 $0.0108
  • 40,000 $0.0107
  • 50,000 $0.0105
$0.0105 / $0.0110 Buy Now
DISTI # 84858635
Verical Cap Ceramic 8pF 50V C0G 0.5pF Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Date Code: 2418 Americas - 690000
  • 10,000 $0.0061
$0.0061 Buy Now
DISTI # 87481776
Verical Cap Ceramic 8pF 50V C0G 0.5pF Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 4951 Package Multiple: 1 Americas - 9990
  • 4,951 $0.0141
  • 5,377 $0.0130
  • 10,000 $0.0118
  • 50,000 $0.0111
$0.0111 / $0.0141 Buy Now
DISTI # 79005372
Verical Cap Ceramic 8pF 50V C0G 0.5pF Pad SMD 0402 125°C T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 8334 Package Multiple: 1 Americas - 9517
  • 8,334 $0.0083
$0.0083 Buy Now
DISTI # CGA2B2C0G1H080D050BA
TTI Multilayer Ceramic Capacitors MLCC - SMD/SMT CGA 0402 50V 8pF C0G 0.50pF AEC-Q200 RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 10000 Container: Reel Americas - 360000
In Stock
  • 10,000 $0.0064
$0.0064 Buy Now
Future Electronics CGA Series 0402 8 pF 50 V �0.5 %Tolerance C0G/NP0 Multilayer Ceramic Capacitor Min Qty: 10000 Package Multiple: 10000 60000
null
  • 10,000 $0.0110
  • 20,000 $0.0109
  • 30,000 $0.0108
  • 40,000 $0.0107
  • 50,000 $0.0105
$0.0105 / $0.0110 Buy Now
DISTI # CGA2B2C0G1H080DBA
TME Capacitor: ceramic, MLCC, 8pF, 50V, C0G (NP0), ±0.5pF, SMD, 0402 Min Qty: 10000 0
  • 10,000 $0.0074
  • 20,000 $0.0070
  • 50,000 $0.0065
  • 70,000 $0.0064
  • 100,000 $0.0063
$0.0063 / $0.0074 RFQ
DISTI # CGA2B2C0G1H080D050BA
Avnet Abacus SMD Multilayer Ceramic Capacitor 8 pF 50 V 0402 1005 Metric 05pF C0G NP0 - Tape and Reel (Alt: CGA2B2C0G1H080D050BA) RoHS: Compliant Min Qty: 10000 Package Multiple: 10000 Lead time: 13 Weeks, 0 Days Container: Reel Abacus - 0
Buy Now
Vyrian Capacitors 261483
RFQ

Part Details for CGA2B2C0G1H080D050BA

CGA2B2C0G1H080D050BA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

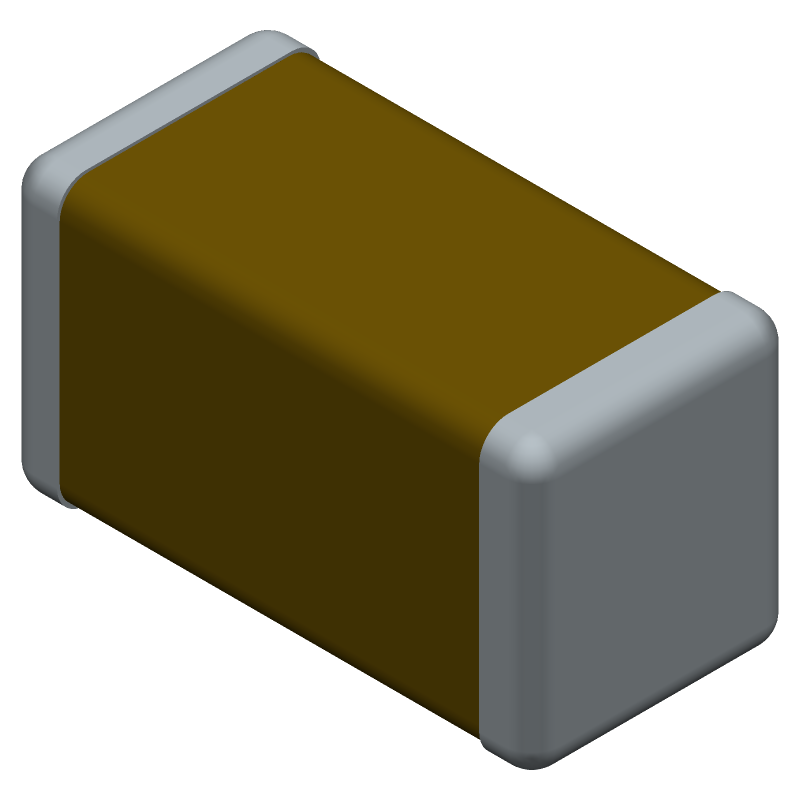

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CGA2B2C0G1H080D050BA Part Data Attributes

Parametric Data
CGA2B2C0G1H080D050BA TDK Corporation
Buy Now Datasheet
Compare Parts:
CGA2B2C0G1H080D050BA TDK Corporation Ceramic Capacitor, Multilayer, Ceramic, 50V, 6.25% +Tol, 6.25% -Tol, C0G, 30ppm/Cel TC, 0.000008uF, Surface Mount, 0402, CHIP, HALOGEN FREE, ROHS AND REACH COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TDK CORP
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 16 Weeks, 3 Days
Samacsys Manufacturer TDK
Capacitance 0.000008 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.5 mm
JESD-609 Code e3
Length 1 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 6.25%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, 7 INCH
Positive Tolerance 6.25%
Rated (DC) Voltage (URdc) 50 V
Reference Standard AEC-Q200
Size Code 0402
Surface Mount YES
Temperature Characteristics Code C0G
Temperature Coefficient 30ppm/Cel ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 0.5 mm

CGA2B2C0G1H080D050BA Related Parts

CGA2B2C0G1H080D050BA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the CGA2B2C0G1H080D050BA capacitor is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the CGA2B2C0G1H080D050BA capacitor is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The maximum operating temperature range for the CGA2B2C0G1H080D050BA capacitor is -55°C to 125°C.

  • Yes, the CGA2B2C0G1H080D050BA capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.

  • The recommended storage condition for the CGA2B2C0G1H080D050BA capacitor is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%.
