CFR25J100K Information
CFR25J100K by TE Connectivity is a Carbon Film Resistor.
Carbon Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CFR25J100K
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
20R0643
|
Newark | Res, 100K, 0.33W, Carbon, Axial, Resistance:100Kohm, Product Range:Cfr Series, Power Rating:330Mw, Resistance Tolerance:± 5%, Resistor Case/Package:Axial Leaded, Voltage Rating:250V, Resistor Technology:Carbon Film, Product Width:-Rohs Compliant: Yes |Neohm Te Connectivity CFR25J100K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 15452 |
|
$0.0070 | Buy Now |
|
DISTI #
95W5837
|
Newark | Through Hole Carbon Film Resistor, Cfr Series, 100 Kohm, 330 Mw, - 5%, 250 V, Axial Leaded Rohs Compliant: Yes |Neohm Te Connectivity CFR25J100K RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 6150 |
|
$0.0040 | Buy Now |
|
DISTI #
A105984CT-ND
|
DigiKey | RES 100K OHM 5% 1/3W AXIAL Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Tape & Box (TB) |
6246 In Stock |
|
$0.0101 / $0.1000 | Buy Now |
|
DISTI #
20R0643
|
Avnet Americas | - Bulk (Alt: 20R0643) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 1 Days Container: Bulk | 10342 Partner Stock |
|
$0.0210 / $0.1110 | Buy Now |
|
DISTI #
1623930-1
|
Avnet Americas | - Tape and Reel (Alt: 1623930-1) RoHS: Not Compliant Min Qty: 12000 Package Multiple: 12000 Lead time: 12 Weeks, 1 Days Container: Reel | 0 |
|
$0.0090 / $0.0093 | Buy Now |
|
DISTI #
279-CFR25J100K
|
Mouser Electronics | Carbon Film Resistors - Through Hole 100KOhm 1/3W 1200PPM RoHS: Compliant | 6596 |
|
$0.0130 / $0.1000 | Buy Now |
|
DISTI #
V72:2272_11783126
|
Arrow Electronics | Res Carbon Film 100K Ohm 5% 0.33W(1/3W) -700ppm/°C to 0ppm/°C AXL Ammo RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2144 Container: Cut Strips | Americas - 9150 |
|
$0.0088 / $0.0099 | Buy Now |
|
|
Onlinecomponents.com | Thin Film Resistor - 100 Kohm (+/-) 5% - 0.33W - 250V - Through Hole - -55°C to +155°C - Ammo Box RoHS: Compliant |
11425 In Stock |
|
$0.0091 / $0.0143 | Buy Now |
|
DISTI #
86234102
|
Verical | Res Carbon Film 100K Ohm 5% 0.33W(1/3W) -700ppm/°C to 0ppm/°C AXL Ammo RoHS: Compliant Min Qty: 7143 Package Multiple: 1 | Americas - 10342 |
|
$0.0094 / $0.0097 | Buy Now |
|
DISTI #
60302647
|
Verical | Res Carbon Film 100K Ohm 5% 0.33W(1/3W) -700ppm/°C to 0ppm/°C AXL Ammo RoHS: Compliant Min Qty: 725 Package Multiple: 1 Date Code: 2144 | Americas - 9150 |
|
$0.0088 / $0.0090 | Buy Now |
Part Details for CFR25J100K

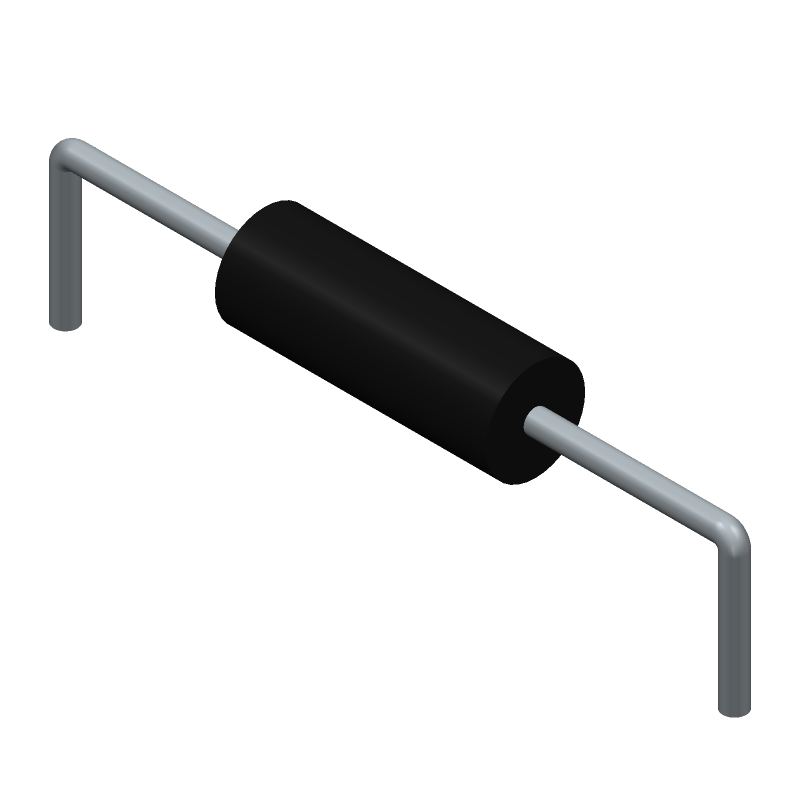

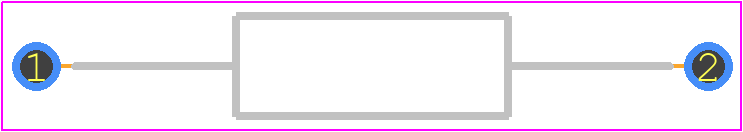

CFR25J100K CAD Models
CFR25J100K Part Data Attributes
|
|
CFR25J100K
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
CFR25J100K
TE Connectivity
Fixed Resistor, Carbon Film, 0.33W, 100000ohm, 250V, 5% +/-Tol, 700ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.90 | |
| Factory Lead Time | 14 Weeks, 1 Day | |
| Samacsys Manufacturer | TE Connectivity | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.54 mm | |
| Lead Length | 28 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 2.5 mm | |
| Package Length | 6.8 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | AMMO PACK | |
| Physical Dimension | 6.8mm x 2.5mm | |
| Rated Power Dissipation (P) | 0.33 W | |
| Rated Temperature | 70 °C | |
| Resistance | 100000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | THIN FILM | |
| Temperature Coefficient | -1200, 0 ppm/°C | |
| Terminal Finish | Tin (Sn) | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 250 V |
