CFM12JT91R0 Information

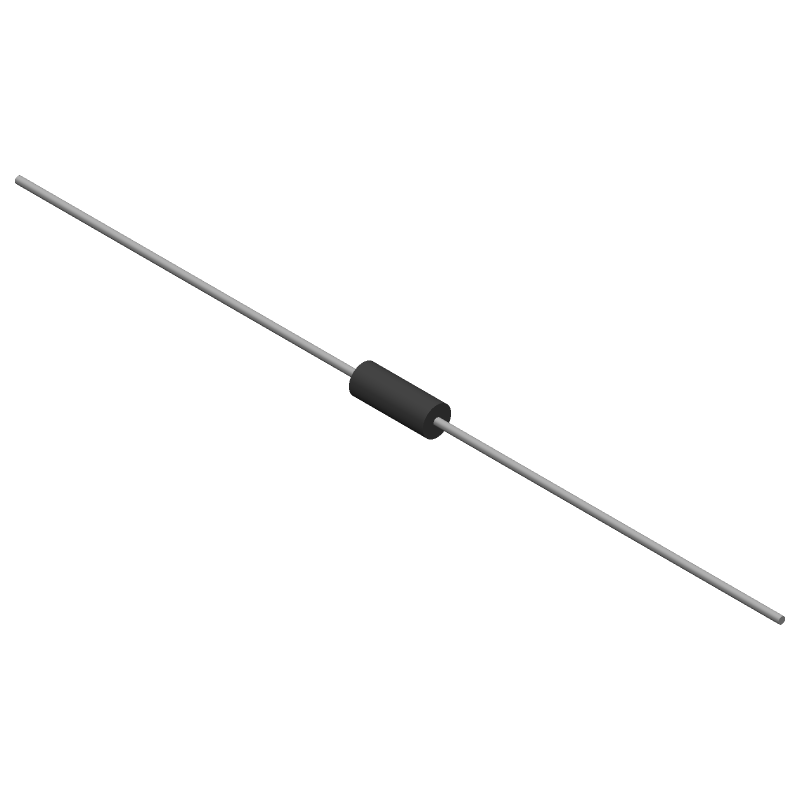

CFM12JT91R0 by SEI Stackpole Electronics Inc is a Carbon Film Resistor.
Carbon Film Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CFM12JT91R0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
S91HCT-ND
|
DigiKey | RES 91 OHM 5% 1/2W AXIAL Min Qty: 1 Lead time: 22 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
12870 In Stock |
|
$0.0061 / $0.1000 | Buy Now |
|
DISTI #
CFM12JT91R0
|
Avnet Americas | Res Carbon Film 91 Ohm 5% 1/2W -400ppm/?C to 0ppm/?C Conformal AXL Thru-Hole T/R - Tape and Reel (Alt: CFM12JT91R0) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 22 Weeks, 0 Days Container: Reel | 20000 Factory Stock |
|
$0.0080 / $0.0083 | Buy Now |
|
DISTI #
708-CFM12JT91R0
|
Mouser Electronics | Carbon Film Resistors - Through Hole RES, CF, 1/2W, 91 ohm, 5% RoHS: Compliant | 0 |
|
$0.0060 / $0.0090 | Order Now |
|
|
Onlinecomponents.com | Carbon Film Resistor - 91 ohm ±5% - 0.5W - Body: 6.00 x 2.30mm Dia - Axial Thru Hole - Tape&Reel RoHS: Compliant | 20000 Factory Stock |
|
$0.0067 / $0.0079 | Buy Now |
|
DISTI #
29569868
|
Verical | Res Carbon Film 91 Ohm 5% 0.5W(1/2W) -400ppm/°C to 0ppm/°C Conformal Coated AXL T/R RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 | Americas - 20000 |
|
$0.0281 / $0.0308 | Buy Now |
|
|
NAC | RESISTOR, CARBON FILM, 1/2W, 91 ohm, 5% - Carbon Film - Mini RoHS: Compliant Min Qty: 1 Package Multiple: 5000 | 20000 |
|
$0.0138 / $0.0180 | Buy Now |
|
|
Master Electronics | Carbon Film Resistor - 91 ohm ±5% - 0.5W - Body: 6.00 x 2.30mm Dia - Axial Thru Hole - Tape&Reel RoHS: Compliant | 20000 Factory Stock |
|
$0.0067 / $0.0079 | Buy Now |
Part Details for CFM12JT91R0
CFM12JT91R0 CAD Models
CFM12JT91R0 Part Data Attributes
|
|
CFM12JT91R0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
CFM12JT91R0
SEI Stackpole Electronics Inc
Fixed Resistor, Carbon Film, 0.5W, 91ohm, 350V, 5% +/-Tol, -400,0ppm/Cel, Through Hole Mount, AXIAL LEADED
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.10.00.65 | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Construction | Tubular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.55 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 155 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Diameter | 2.3 mm | |
| Package Length | 6 mm | |
| Package Shape | TUBULAR PACKAGE | |
| Package Style | Axial | |
| Packing Method | TR, 13.5 INCH | |
| Rated Power Dissipation (P) | 0.5 W | |
| Rated Temperature | 70 °C | |
| Resistance | 91 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | CARBON FILM | |
| Temperature Coefficient | -400,0 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 350 V |
