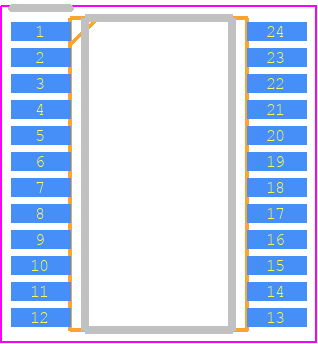

Footprint
-

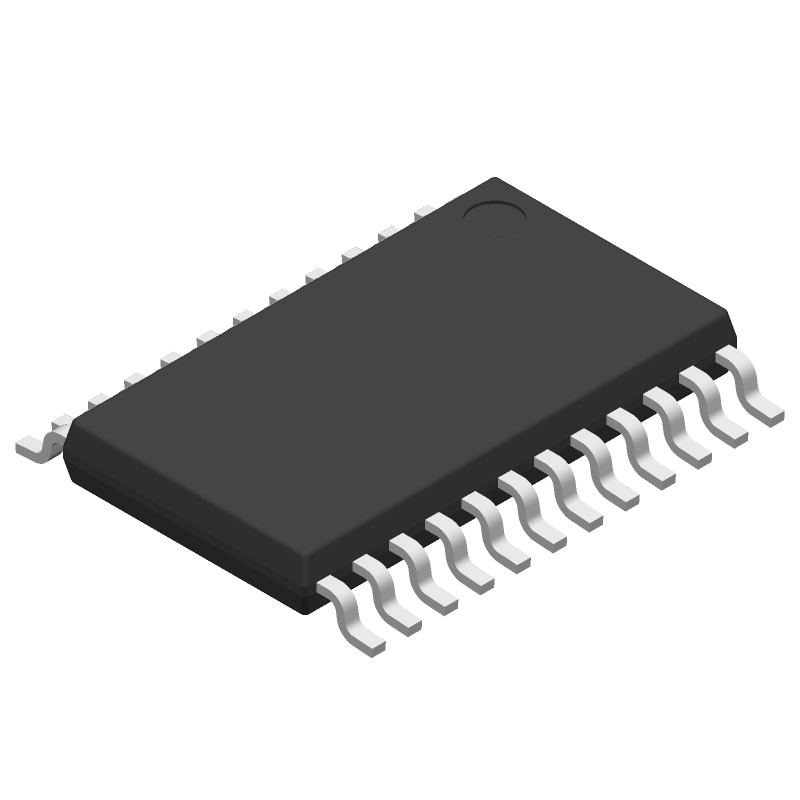

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CDCF2509PWR by Texas Instruments
Results Overview of CDCF2509PWR by Texas Instruments
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
CDCF2509PWR Information
CDCF2509PWR by Texas Instruments is a Clock Driver.
Clock Drivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CDCF2509PWR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-CDCF2509PWR-ND
|
DigiKey | IC 3.3V PLL CLOCK-DRVR 24-TSSOP Min Qty: 33 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
30030 In Stock |
|
$9.1200 | Buy Now |
|
DISTI #
CDCF2509PWR-ND
|
DigiKey | IC 3.3V PLL CLOCK-DRVR 24-TSSOP Min Qty: 33 Lead time: 18 Weeks Container: Tape & Reel (TR) | Limited Supply - Call |
|
$10.2288 | Buy Now |
|
DISTI #
595-CDCF2509PWR
|
Mouser Electronics | Clock Drivers & Distribution 3.3V Phase-Lock Loop Clock Driver RoHS: Compliant | 0 |
|
Order Now | |
|
DISTI #
85973033
|
Verical | Clock Generator 25MHz to 140MHz-IN 24-Pin TSSOP T/R RoHS: Compliant Min Qty: 35 Package Multiple: 1 | Americas - 16000 |
|
$10.9625 | Buy Now |
|
DISTI #
85973228
|
Verical | Clock Generator 25MHz to 140MHz-IN 24-Pin TSSOP T/R RoHS: Compliant Min Qty: 35 Package Multiple: 1 Date Code: 0301 | Americas - 10000 |
|
$10.9625 | Buy Now |
|
DISTI #
85979687
|
Verical | Clock Generator 25MHz to 140MHz-IN 24-Pin TSSOP T/R RoHS: Compliant Min Qty: 35 Package Multiple: 1 Date Code: 0601 | Americas - 2000 |
|
$10.9625 | Buy Now |
|
DISTI #
85973659
|
Verical | Clock Generator 25MHz to 140MHz-IN 24-Pin TSSOP T/R RoHS: Compliant Min Qty: 35 Package Multiple: 1 Date Code: 0201 | Americas - 2000 |
|
$10.9625 | Buy Now |
|
|
Bristol Electronics | 20000 |
|
RFQ | ||
|
|
Bristol Electronics | 3405 |
|
RFQ | ||
|
|
Quest Components | 2509 SERIES, PLL BASED CLOCK DRIVER, 9 TRUE OUTPUT(S), 0 INVERTED OUTPUT(S), PDSO24 | 3434 |
|
$6.2175 / $12.4350 | Buy Now |
Part Details for CDCF2509PWR
CDCF2509PWR CAD Models
CDCF2509PWR Part Data Attributes
|
|
CDCF2509PWR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CDCF2509PWR
Texas Instruments
3.3-V PLL clock driver with support for PC133 SDRAM registered DIMM specification rev. 0.9 24-TSSOP 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1996-10-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | 2509 | |
| Input Conditioning | STANDARD | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 7.8 mm | |
| Load Capacitance (CL) | 25 pF | |
| Logic IC Type | PLL BASED CLOCK DRIVER | |
| Max I(ol) | 0.014 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Inverted Outputs | ||
| Number of Terminals | 24 | |
| Number of True Outputs | 9 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Characteristics | 3-STATE WITH SERIES RESISTOR | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP24,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Same Edge Skew-Max (tskwd) | 0.2 ns | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Technology | BICMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm | |
| fmax-Min | 140 MHz |
