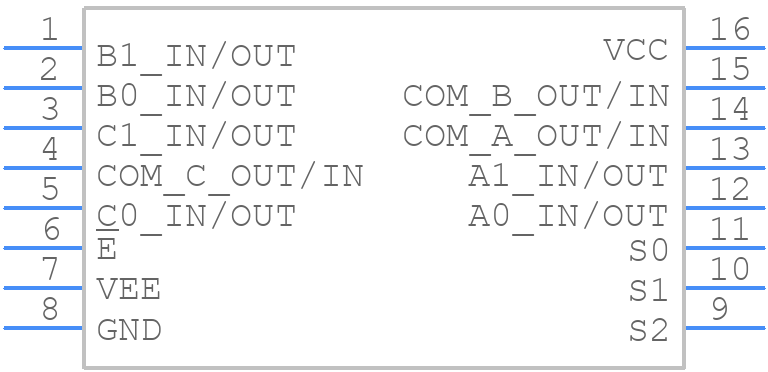

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HCT4053MT by Texas Instruments
Results Overview of CD74HCT4053MT by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Entertainment and Gaming
Automotive
CD74HCT4053MT Information
CD74HCT4053MT by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for CD74HCT4053MT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-CD74HCT4053MT-ND
|
DigiKey | IC SWITCH SPDT X 3 130OHM 16SOIC Min Qty: 1 Lead time: 20 Weeks Container: Bulk MARKETPLACE PRODUCT |
4000 In Stock |
|
$0.5600 | Buy Now |
|
DISTI #
296-CD74HCT4053MTCT-ND
|
DigiKey | IC SWITCH SPDT X 3 130OHM 16SOIC Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1320 In Stock |
|
$0.4776 / $0.9600 | Buy Now |
|
DISTI #
86276712
|
Verical | Analog Multiplexer Triple 2:1 16-Pin SOIC T/R RoHS: Compliant Min Qty: 617 Package Multiple: 1 Date Code: 1101 | Americas - 4000 |
|
$0.4188 / $0.6079 | Buy Now |
|
|
Rochester Electronics | CD74HCT4053 High Speed CMOS Triple 2-Channel Analog Multiplexer/Demultiplexer with TTL inputs RoHS: Compliant Status: Obsolete Min Qty: 1 | 4000 |
|
$0.3350 / $0.5403 | Buy Now |
Part Details for CD74HCT4053MT
CD74HCT4053MT CAD Models
CD74HCT4053MT Part Data Attributes
|
|
CD74HCT4053MT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HCT4053MT
Texas Instruments
5-V, 2:1 (SPDT), 3-channel analog switch with TTL inputs 16-SOIC -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER | |
| Bandwidth-Nom | 200 MHz | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | ||
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 64 dB | |
| On-state Resistance Match-Nom | 10 Ω | |
| On-state Resistance-Max (Ron) | 270 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output | COMMON OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 10 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 66 ns | |
| Switch-on Time-Max | 72 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD74HCT4053MT
This table gives cross-reference parts and alternative options found for CD74HCT4053MT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HCT4053MT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HCT4053D,118 | NXP Semiconductors | Check for Price | 74HC(T)4053 - Triple 2-channel analog multiplexer/demultiplexer SOP 16-Pin | CD74HCT4053MT vs 74HCT4053D,118 |
| 74HCT4053D | Toshiba America Electronic Components | Check for Price | Single-Ended Multiplexer | CD74HCT4053MT vs 74HCT4053D |
CD74HCT4053MT Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the CD74HCT4053MT is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
-
To ensure proper power sequencing, it's recommended to power up the VCC pin before the analog signal inputs, and power down the VCC pin after the analog signal inputs. This helps prevent latch-up and ensures proper operation of the device.
-
For optimal performance, it's recommended to follow good analog layout practices, such as keeping analog signal traces short and away from digital signal traces, using a solid ground plane, and minimizing parasitic capacitance. It's also recommended to use a bypass capacitor between VCC and GND to reduce noise and improve stability.
-
The CD74HCT4053MT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected package.
-
The maximum analog signal voltage that can be applied to the CD74HCT4053MT is typically around 6 V, but it's recommended to consult the datasheet and ensure that the signal voltage does not exceed the maximum rating to prevent damage to the device.
