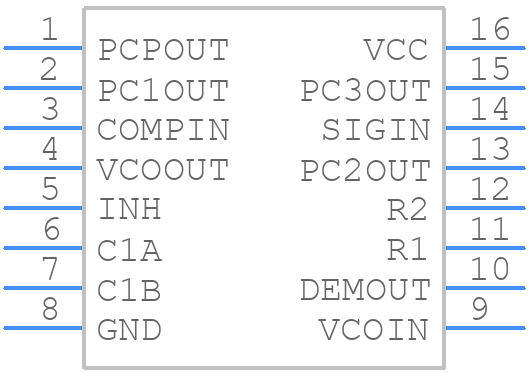

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HCT4046AM by Texas Instruments
Results Overview of CD74HCT4046AM by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Aerospace and Defense
CD74HCT4046AM Information
CD74HCT4046AM by Texas Instruments is a PLL or Frequency Synthesis Circuit.
PLL or Frequency Synthesis Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD74HCT4046AMT | Texas Instruments | High Speed CMOS Logic Phase-Locked-Loop with VCO 16-SOIC -55 to 125 | |
| CD74HCT4046AM | Texas Instruments | High Speed CMOS Logic Phase-Locked-Loop with VCO 16-SOIC -55 to 125 | |
| CD74HCT4046AM96 | Texas Instruments | High Speed CMOS Logic Phase-Locked-Loop with VCO 16-SOIC -55 to 125 |
Price & Stock for CD74HCT4046AM
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-9275-5-ND
|
DigiKey | IC PHASE LOCK LOOP 16SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
424 In Stock |
|
$0.5448 / $1.1600 | Buy Now |
|
DISTI #
595-CD74HCT4046AM
|
Mouser Electronics | Phase Locked Loops - PLL PLL w/ VCO A 595-CD74HCT4046AMT RoHS: Compliant | 569 |
|
$0.5270 / $1.1600 | Buy Now |
|
DISTI #
J56:1989_00096543
|
Arrow Electronics | High-Speed CMOS Logic Phase-Locked Loop with VCO RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 12 Weeks | Europe - 1120 |
|
$0.4770 / $0.6949 | Buy Now |
|
DISTI #
86277324
|
Verical | High-Speed CMOS Logic Phase-Locked Loop with VCO RoHS: Compliant Min Qty: 442 Package Multiple: 1 | Americas - 3930 |
|
$0.8490 | Buy Now |
|
|
Bristol Electronics | 363 |
|
RFQ | ||
|
|
Quest Components | IC,PHASE-LOCKED LOOP,HCT-CMOS,SOP,16PIN,PLASTIC | 1048 |
|
$0.4311 / $1.0347 | Buy Now |
|
|
Quest Components | IC,PHASE-LOCKED LOOP,HCT-CMOS,SOP,16PIN,PLASTIC | 336 |
|
$0.4750 / $0.9500 | Buy Now |
|
|
Quest Components | IC,PHASE-LOCKED LOOP,HCT-CMOS,SOP,16PIN,PLASTIC | 80 |
|
$0.5748 / $0.9580 | Buy Now |
|
|
Rochester Electronics | CD74HCT4046A High Speed CMOS Logic Phase-Locked-Loop with VCO RoHS: Compliant Status: Active Min Qty: 1 | 4095 |
|
$0.4211 / $0.6792 | Buy Now |
Part Details for CD74HCT4046AM
CD74HCT4046AM CAD Models
CD74HCT4046AM Part Data Attributes
|
|
CD74HCT4046AM
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HCT4046AM
Texas Instruments
High Speed CMOS Logic Phase-Locked-Loop with VCO 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | PHASE LOCKED LOOP | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.16 mA | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD74HCT4046AM
This table gives cross-reference parts and alternative options found for CD74HCT4046AM. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HCT4046AM, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HCT4046AD,118 | Nexperia | $0.5263 | 74HC4046A; 74HCT4046A - Phase-locked loop with VCO@en-us SOP 16-Pin | CD74HCT4046AM vs 74HCT4046AD,118 |
| 74HCT4046AD,112 | NXP Semiconductors | Check for Price | 74HC(T)4046A - Phase-locked-loop with VCO SOP 16-Pin | CD74HCT4046AM vs 74HCT4046AD,112 |
| CD74HCT4046AMTE4 | Texas Instruments | Check for Price | PHASE LOCKED LOOP, 38MHz, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD74HCT4046AM vs CD74HCT4046AMTE4 |
| CD74HCT4046AMT | Texas Instruments | Check for Price | High Speed CMOS Logic Phase-Locked-Loop with VCO 16-SOIC -55 to 125 | CD74HCT4046AM vs CD74HCT4046AMT |
| CD74HCT4046AM96E4 | Texas Instruments | Check for Price | High Speed CMOS Logic Phase-Locked-Loop with VCO 16-SOIC -55 to 125 | CD74HCT4046AM vs CD74HCT4046AM96E4 |
| CD74HCT4046AM96 | Texas Instruments | Check for Price | High Speed CMOS Logic Phase-Locked-Loop with VCO 16-SOIC -55 to 125 | CD74HCT4046AM vs CD74HCT4046AM96 |
| CD74HCT4046AM | Rochester Electronics LLC | Check for Price | PHASE LOCKED LOOP, PDSO16 | CD74HCT4046AM vs CD74HCT4046AM |
| 74HCT4046AD | Nexperia | Check for Price | PLL Frequency Synthesizer, CMOS, PDSO16 | CD74HCT4046AM vs 74HCT4046AD |
CD74HCT4046AM Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CD74HCT4046AM is 4.5V to 5.5V, with a typical voltage of 5V.
-
To ensure the PLL is properly locked, the VCO (Voltage-Controlled Oscillator) input voltage should be within the recommended range, and the loop filter components should be selected according to the datasheet guidelines. Additionally, the input clock signal should be stable and within the specified frequency range.
-
The maximum clock frequency that the CD74HCT4046AM can handle is 20 MHz, but this may vary depending on the specific application and operating conditions.
-
The loop filter component values can be calculated using the equations provided in the datasheet, or by using online calculators and simulation tools. The values should be selected based on the desired PLL bandwidth, phase margin, and stability requirements.
-
The VCO input voltage (VIN) is used to control the frequency of the VCO, which in turn controls the output frequency of the PLL. The VIN voltage should be within the recommended range to ensure proper PLL operation.
