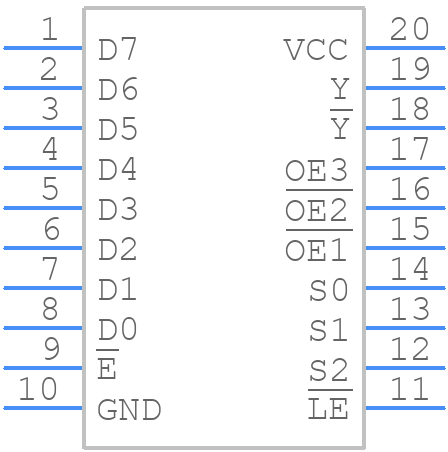

Part Symbol
-

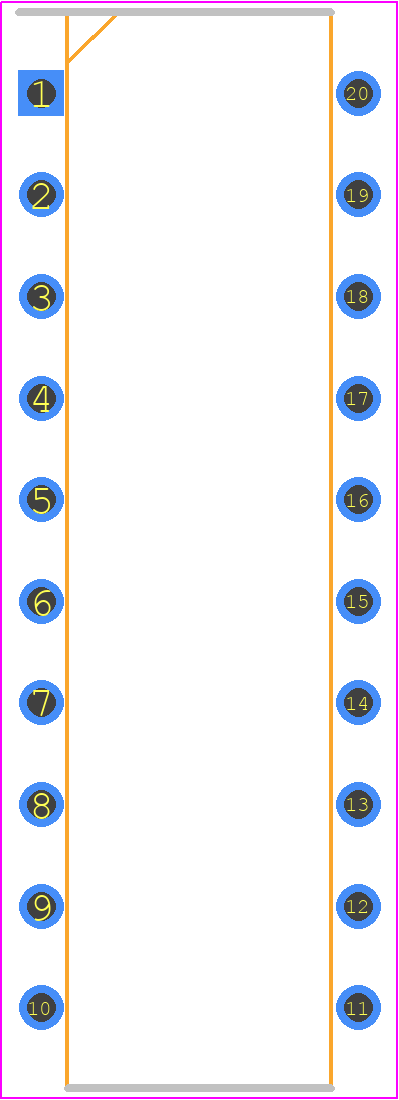

Footprint
-

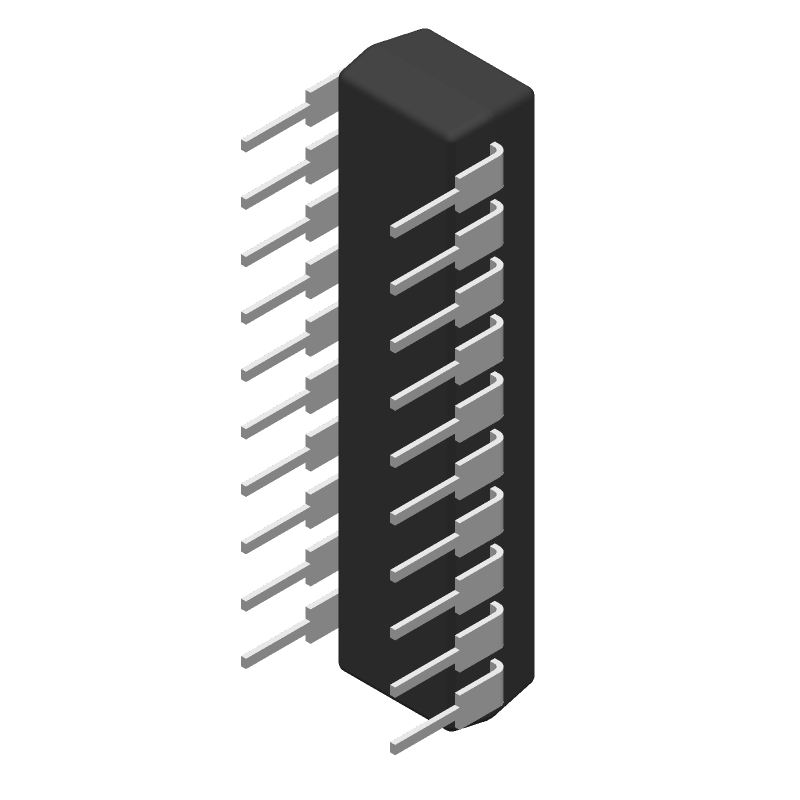

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HCT354E by Texas Instruments
Results Overview of CD74HCT354E by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Industrial Automation
Healthcare
Renewable Energy
Medical Imaging
Robotics and Drones
CD74HCT354E Information
CD74HCT354E by Texas Instruments is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD74HCT354E | Texas Instruments | High Speed CMOS Logic 8-Input Multiplexer/Register with 3-State Outputs 20-PDIP -55 to 125 |
Price & Stock for CD74HCT354E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-33147-5-ND
|
DigiKey | IC MULTIPLEXER 1 X 8:1 20-PDIP Min Qty: 1 Lead time: 18 Weeks Container: Tube |
311 In Stock |
|
$0.8232 / $1.6800 | Buy Now |
|
DISTI #
595-CD74HCT354E
|
Mouser Electronics | Encoders, Decoders, Multiplexers & Demultiplexers Hi-Sp CMOS 8-Input M ltplx/Reg W/3St Otp RoHS: Compliant | 311 |
|
$0.9430 / $1.6800 | Buy Now |
|
DISTI #
85971326
|
Verical | Multiplexer/Latch 1-Element CMOS 3-ST 8-IN 20-Pin PDIP Tube RoHS: Compliant Min Qty: 226 Package Multiple: 1 Date Code: 1301 | Americas - 1980 |
|
$1.6625 | Buy Now |
|
DISTI #
88041823
|
Verical | Multiplexer/Latch 1-Element CMOS 3-ST 8-IN 20-Pin PDIP Tube RoHS: Compliant Min Qty: 226 Package Multiple: 1 Date Code: 0501 | Americas - 260 |
|
$1.6625 | Buy Now |
|
|
Rochester Electronics | CD74HCT354 High Speed CMOS Logic 8-Input Multiplexer/Register with 3-State Outputs RoHS: Not Compliant Status: Active Min Qty: 1 | 2443 |
|
$0.8243 / $1.3300 | Buy Now |
Part Details for CD74HCT354E
CD74HCT354E CAD Models
CD74HCT354E Part Data Attributes
|
|
CD74HCT354E
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HCT354E
Texas Instruments
High Speed CMOS Logic 8-Input Multiplexer/Register with 3-State Outputs 20-PDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, DIP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | TRANSPARENT ADDRESS LATCHES; REGISTERED DATA INPUTS | |
| Family | HCT | |
| JESD-30 Code | R-PDIP-T20 | |
| JESD-609 Code | e4 | |
| Length | 25.4 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | MULTIPLEXER | |
| Max I(ol) | 0.004 A | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Inputs | 8 | |
| Number of Outputs | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP20,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 0.16 mA | |
| Prop. Delay@Nom-Sup | 20 ns | |
| Propagation Delay (tpd) | 89 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
Alternate Parts for CD74HCT354E
This table gives cross-reference parts and alternative options found for CD74HCT354E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HCT354E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| GD54HCT354J | Goldstar Electron Co Ltd | Check for Price | Multiplexer, HCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, CDIP20, | CD74HCT354E vs GD54HCT354J |
| CD74HCT354EE4 | Texas Instruments | Check for Price | HCT SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDIP20, ROHS COMPLIANT, PLASTIC, DIP-20 | CD74HCT354E vs CD74HCT354EE4 |
| CD54HCT354F3A | Texas Instruments | Check for Price | HCT SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, CDIP20, CERAMIC, DIP-20 | CD74HCT354E vs CD54HCT354F3A |
| CD74HCT354EX | Harris Semiconductor | Check for Price | Multiplexer, HCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, PDIP20 | CD74HCT354E vs CD74HCT354EX |
| CD54HCT354F3A | Harris Semiconductor | Check for Price | Multiplexer, HCT Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, CMOS, CDIP20 | CD74HCT354E vs CD54HCT354F3A |
| 74HCT354N | NXP Semiconductors | Check for Price | IC HCT SERIES, 8 LINE TO 1 LINE MULTIPLEXER, COMPLEMENTARY OUTPUT, PDIP20, Multiplexer/Demultiplexer | CD74HCT354E vs 74HCT354N |
CD74HCT354E Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the CD74HCT354E is typically 40 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure signal integrity, use proper PCB layout techniques, such as using short signal traces, minimizing impedance mismatches, and adding termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
-
Yes, the CD74HCT354E is compatible with 5V systems, but it's essential to ensure that the input signals do not exceed the maximum rating of 5.5V to prevent damage to the device.
-
To ensure proper operation, power up the VCC pin before applying any input signals, and power down the VCC pin after removing all input signals. Additionally, consider using a power sequencing controller or a voltage supervisor to manage the power-up and power-down sequences.
-
The recommended operating temperature range for the CD74HCT354E is -40°C to 125°C, but it's essential to consider the specific application and operating conditions to ensure reliable operation.
