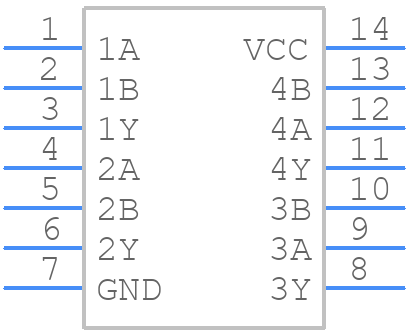

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HCT32E by Texas Instruments
Results Overview of CD74HCT32E by Texas Instruments
- Distributor Offerings: (18 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD74HCT32E Information
CD74HCT32E by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD74HCT32EE4 | Texas Instruments | High Speed CMOS Logic Quad Two-Input OR Gates 14-PDIP -55 to 125 | |
| CD74HCT32E | Texas Instruments | High Speed CMOS Logic Quad Two-Input OR Gates 14-PDIP -55 to 125 |
Price & Stock for CD74HCT32E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
3120236
|
Farnell | 74HCT CMOS, 74HCT32, DIP14, 5.5V RoHS: Compliant Min Qty: 1 Lead time: 53 Weeks, 2 Days Container: Each | 465 |
|
$0.6662 / $0.6768 | Buy Now |
|
DISTI #
296-2112-5-ND
|
DigiKey | IC GATE OR 4CH 2-INP 14DIP Min Qty: 1 Lead time: 12 Weeks Container: Tube |
1247 In Stock |
|
$0.3138 / $0.7000 | Buy Now |
|
DISTI #
595-CD74HCT32E
|
Mouser Electronics | Logic Gates Quad 2-Input A 595-CD74HC32E RoHS: Compliant | 1453 |
|
$0.2960 / $0.6700 | Buy Now |
|
DISTI #
V99:2348_07247527
|
Arrow Electronics | OR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2233 | Americas - 775 |
|
$0.2801 / $0.6584 | Buy Now |
|
DISTI #
85972914
|
Verical | OR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 865 Package Multiple: 1 Date Code: 0301 | Americas - 3300 |
|
$0.4339 | Buy Now |
|
DISTI #
85977640
|
Verical | OR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 865 Package Multiple: 1 Date Code: 1001 | Americas - 1773 |
|
$0.4339 | Buy Now |
|
DISTI #
85973932
|
Verical | OR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 865 Package Multiple: 1 | Americas - 973 |
|
$0.4339 | Buy Now |
|
DISTI #
84026652
|
Verical | OR Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 21 Package Multiple: 1 Date Code: 2233 | Americas - 775 |
|
$0.2801 | Buy Now |
|
|
Bristol Electronics | 313 |
|
RFQ | ||
|
|
Bristol Electronics | 125 |
|
RFQ |
Part Details for CD74HCT32E
CD74HCT32E CAD Models
CD74HCT32E Part Data Attributes
|
|
CD74HCT32E
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HCT32E
Texas Instruments
4-ch 2-input 4.5-V to 5.5-V OR gate with TTL-compatible inputs 14-PDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, DIP-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | HCT | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e4 | |
| Length | 19.305 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | OR GATE | |
| Max I(ol) | 0.004 A | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 0.04 mA | |
| Prop. Delay@Nom-Sup | 36 ns | |
| Propagation Delay (tpd) | 36 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 6.35 mm |
