Logic / Counters / CD74HCT161M96
Datasheets
CD74HCT161M96 by:

High Speed CMOS Logic 4-Bit Binary Counter with Asynchronous Reset 16-SOIC -55 to 125

Part Details for CD74HCT161M96 by Texas Instruments

Results Overview of CD74HCT161M96 by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Space Technology Aerospace and Defense Automotive

CD74HCT161M96 Information

CD74HCT161M96 by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for CD74HCT161M96

Part # Distributor Description Stock Price Buy
DISTI # 2156-CD74HCT161M96-ND
DigiKey IC BINARY COUNTER 4-BIT 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT 87236
In Stock
  • 1,494 $0.2000
$0.2000 Buy Now
DISTI # 296-38073-1-ND
DigiKey IC BINARY COUNTER 4-BIT 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 4235
In Stock
  • 1 $0.4200
  • 10 $0.2930
  • 25 $0.2612
  • 100 $0.2262
  • 250 $0.2095
  • 500 $0.1994
  • 1,000 $0.1913
  • 2,500 $0.1823
  • 5,000 $0.1771
  • 7,500 $0.1744
  • 12,500 $0.1715
  • 17,500 $0.1698
  • 25,000 $0.1681
$0.1681 / $0.4200 Buy Now
DISTI # 595-CD74HCT161M96
Mouser Electronics Counter ICs Hi-Sp CMOS 4-Bit Bin ary w/Sync Reset A 595-CD74HCT161M RoHS: Compliant 3295
  • 1 $0.4200
  • 10 $0.2930
  • 25 $0.2620
  • 100 $0.2270
  • 250 $0.2000
  • 1,000 $0.1920
  • 2,500 $0.1740
  • 10,000 $0.1690
  • 20,000 $0.1680
$0.1680 / $0.4200 Buy Now
DISTI # 86277273
Verical Counter Single 4-Bit Sync Binary UP 16-Pin SOIC T/R RoHS: Compliant Min Qty: 1872 Package Multiple: 1 Date Code: 0001 Americas - 85000
  • 1,872 $0.2004
  • 10,000 $0.1786
  • 100,000 $0.1496
$0.1496 / $0.2004 Buy Now
DISTI # 86276949
Verical Counter Single 4-Bit Sync Binary UP 16-Pin SOIC T/R RoHS: Compliant Min Qty: 1872 Package Multiple: 1 Date Code: 1101 Americas - 2236
  • 1,872 $0.2004
  • 10,000 $0.1786
  • 100,000 $0.1496
$0.1496 / $0.2004 Buy Now
Bristol Electronics   690
RFQ
Quest Components BINARY COUNTER, HCT SERIES, SYNCHRONOUS, POSITIVE EDGE TRIGGERED, 4-BIT, UP DIRECTION, CMOS, PDSO16 552
  • 1 $0.5400
  • 47 $0.3240
  • 186 $0.2700
$0.2700 / $0.5400 Buy Now
Rochester Electronics CD74HCT161 High Speed CMOS Logic 4-Bit Binary Counter with Asynchronous Reset RoHS: Compliant Status: Active Min Qty: 1 87236
  • 100 $0.1931
  • 500 $0.1738
  • 1,000 $0.1603
  • 10,000 $0.1429
  • 100,000 $0.1197
$0.1197 / $0.1931 Buy Now

Part Details for CD74HCT161M96

CD74HCT161M96 CAD Models

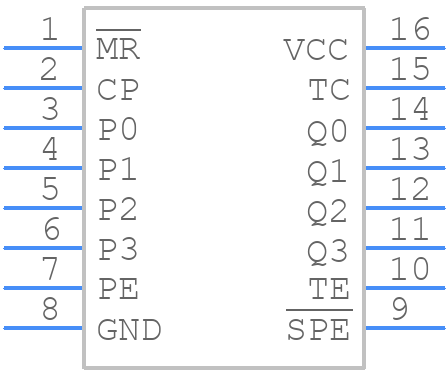

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CD74HCT161M96 Part Data Attributes

Parametric Data
CD74HCT161M96 Texas Instruments
Buy Now Datasheet
Compare Parts:
CD74HCT161M96 Texas Instruments High Speed CMOS Logic 4-Bit Binary Counter with Asynchronous Reset 16-SOIC -55 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description SOIC-16
Pin Count 16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature TCO OUTPUT
Count Direction UP
Family HCT
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 9.9 mm
Load Capacitance (CL) 50 pF
Load/Preset Input YES
Logic IC Type BINARY COUNTER
Max Frequency@Nom-Sup 20000000 Hz
Max I(ol) 0.004 A
Mode of Operation SYNCHRONOUS
Moisture Sensitivity Level 1
Number of Bits 4
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.08 mA
Prop. Delay@Nom-Sup 49 ns
Propagation Delay (tpd) 59 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Trigger Type POSITIVE EDGE
Width 3.9 mm
fmax-Min 20 MHz
