Part Details for CD74HCT11E by Texas Instruments

Results Overview of CD74HCT11E by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Security and Surveillance Audio and Video Systems

CD74HCT11E Information

CD74HCT11E by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
CD74HCT11E Texas Instruments High Speed CMOS Logic Triple 3-Input AND Gates 14-PDIP -55 to 125

Price & Stock for CD74HCT11E

Part # Distributor Description Stock Price Buy
DISTI # 33AH3835
Newark And Gate, Triple, 3 I/P, Dip-14, Logic Family/Base Number:74Hct11, Logic Type:And Gate, Output Current:-, No. Of Inputs:3, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Logic Case Style:Dip, No. Of Pins:14Pins, Logic Ic Rohs Compliant: Yes |Texas Instruments CD74HCT11E RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 931
  • 1 $1.1700
  • 10 $1.0900
  • 100 $1.0100
  • 500 $0.9640
  • 1,000 $0.9210
  • 2,500 $0.8780
  • 5,000 $0.8650
$0.8650 / $1.1700 Buy Now
DISTI # 296-2087-5-ND
DigiKey IC GATE AND 3CH 3-INP 14DIP Min Qty: 1 Lead time: 18 Weeks Container: Tube 1556
In Stock
  • 1 $0.8300
  • 10 $0.5920
  • 25 $0.5324
  • 100 $0.4674
  • 250 $0.4364
  • 500 $0.4176
  • 1,000 $0.4022
  • 2,500 $0.3860
  • 5,000 $0.3762
$0.3762 / $0.8300 Buy Now
DISTI # 595-CD74HCT11E
Mouser Electronics Logic Gates Triple 3-Input A 595-CD74HC11E RoHS: Compliant 1607
  • 1 $0.8300
  • 10 $0.5920
  • 25 $0.5320
  • 100 $0.4670
  • 250 $0.4360
  • 500 $0.4170
  • 4,000 $0.3760
$0.3760 / $0.8300 Buy Now
DISTI # 85976201
Verical AND Gate 3-Element 3-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 655 Package Multiple: 1 Date Code: 0001 Americas - 4625
  • 655 $0.5730
$0.5730 Buy Now
DISTI # 85976679
Verical AND Gate 3-Element 3-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 655 Package Multiple: 1 Date Code: 0401 Americas - 1608
  • 655 $0.5730
$0.5730 Buy Now
DISTI # 85972120
Verical AND Gate 3-Element 3-IN CMOS 14-Pin PDIP Tube RoHS: Compliant Min Qty: 655 Package Multiple: 1 Americas - 902
  • 655 $0.5730
$0.5730 Buy Now
Bristol Electronics   125
RFQ
Bristol Electronics   13
RFQ
Quest Components IC,LOGIC GATE,3 3-INPUT AND,HCT-CMOS,DIP,14PIN,PLASTIC 100
  • 1 $1.1065
  • 24 $0.6639
  • 91 $0.5533
$0.5533 / $1.1065 Buy Now
Quest Components IC,LOGIC GATE,3 3-INPUT AND,HCT-CMOS,DIP,14PIN,PLASTIC 10
  • 1 $0.5250
  • 11 $0.4200
$0.4200 / $0.5250 Buy Now
Rochester Electronics CD74HCT11 High Speed CMOS Logic Triple 3-Input AND Gates RoHS: Compliant Status: Active Min Qty: 1 7634
  • 100 $0.4584
  • 500 $0.4126
  • 1,000 $0.3805
  • 10,000 $0.3392
  • 100,000 $0.2842
$0.2842 / $0.4584 Buy Now

Part Details for CD74HCT11E

CD74HCT11E CAD Models

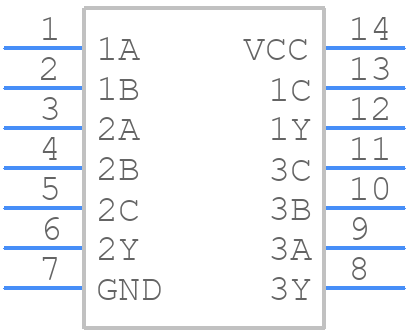

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CD74HCT11E Part Data Attributes

Parametric Data
CD74HCT11E Texas Instruments
Buy Now Datasheet
Compare Parts:
CD74HCT11E Texas Instruments 3-ch 3-input 4.5-V to 5.5-V AND gate with TTL-compatible inputs 14-PDIP -55 to 125
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code DIP
Package Description ROHS COMPLIANT, PLASTIC, DIP-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family HCT
JESD-30 Code R-PDIP-T14
JESD-609 Code e4
Length 19.305 mm
Load Capacitance (CL) 50 pF
Logic IC Type AND GATE
Max I(ol) 0.004 A
Number of Functions 3
Number of Inputs 3
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Packing Method TUBE
Power Supply Current-Max (ICC) 0.04 mA
Prop. Delay@Nom-Sup 42 ns
Propagation Delay (tpd) 42 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 5.08 mm
Supply Voltage-Max (Vsup) 5.5 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Nom (Vsup) 5 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm
