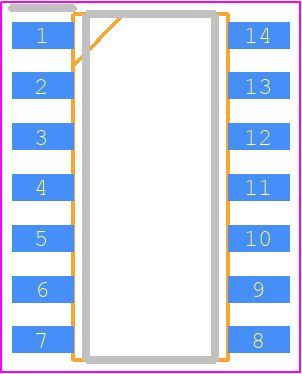

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC4075M by Texas Instruments
Results Overview of CD74HC4075M by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (7 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Electronic Manufacturing
CD74HC4075M Information
CD74HC4075M by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC4075M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-9227-5-ND
|
DigiKey | IC GATE OR 3CH 3-INP 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
570 In Stock |
|
$0.5323 / $1.0300 | Buy Now |
|
DISTI #
85976095
|
Verical | OR Gate 3-Element 3-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 508 Package Multiple: 1 Date Code: 1101 | Americas - 5633 |
|
$0.7389 | Buy Now |
|
DISTI #
85976593
|
Verical | OR Gate 3-Element 3-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 508 Package Multiple: 1 Date Code: 1301 | Americas - 3345 |
|
$0.7389 | Buy Now |
|
DISTI #
85972031
|
Verical | OR Gate 3-Element 3-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 508 Package Multiple: 1 Date Code: 1501 | Americas - 1550 |
|
$0.7389 | Buy Now |
|
|
Bristol Electronics | 357 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 9 | 170 |
|
$0.2109 / $0.5625 | Buy Now |
|
|
Quest Components | IC,LOGIC GATE,TRIPLE 3-INPUT OR,HC-CMOS,SOP,14PIN,PLASTIC | 192 |
|
$0.4868 / $1.6225 | Buy Now |
|
|
Quest Components | IC,LOGIC GATE,TRIPLE 3-INPUT OR,HC-CMOS,SOP,14PIN,PLASTIC | 136 |
|
$0.3750 / $0.7500 | Buy Now |
|
|
Rochester Electronics | CD74HC4075 High Speed CMOS Logic Triple 3-Input OR Gates RoHS: Compliant Status: Obsolete Min Qty: 1 | 11674 |
|
$0.3665 / $0.5911 | Buy Now |
|
DISTI #
CD74HC4075M
|
TME | IC: digital, OR, Ch: 3, IN: 3, SMD, SO14, 2÷6VDC, HC Min Qty: 3 | 14 |
|
$0.4560 / $0.8240 | Buy Now |
Part Details for CD74HC4075M
CD74HC4075M CAD Models
CD74HC4075M Part Data Attributes
|
|
CD74HC4075M
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC4075M
Texas Instruments
3-ch, 3-input, 2-V to 6-V 5.2-mA drive strength OR gate 14-SOIC -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | OR GATE | |
| Max I(ol) | 0.0052 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 3 | |
| Number of Inputs | 3 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.04 mA | |
| Prop. Delay@Nom-Sup | 30 ns | |
| Propagation Delay (tpd) | 150 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
Alternate Parts for CD74HC4075M
This table gives cross-reference parts and alternative options found for CD74HC4075M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC4075M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74HC4075M | Intersil Corporation | Check for Price | OR GATE | CD74HC4075M vs CD74HC4075M |
| CD74HC4075M96 | Rochester Electronics LLC | Check for Price | OR Gate, HC/UH Series, 3-Func, 3-Input, CMOS, PDSO14 | CD74HC4075M vs CD74HC4075M96 |
CD74HC4075M Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the CD74HC4075M is 10 MHz.
-
To ensure that the CD74HC4075M operates within the recommended operating conditions, make sure to operate it within the recommended voltage range of 2V to 6V, and maintain a stable clock signal with a duty cycle of 45% to 55%.
-
The propagation delay time for the CD74HC4075M is typically around 10ns to 15ns, depending on the operating voltage and temperature.
-
Yes, the CD74HC4075M can be used in a 3.3V system, as it is specified to operate from 2V to 6V. However, ensure that the input signals are compatible with the 3.3V logic levels.
-
To ensure proper operation, it is recommended to power up the CD74HC4075M in the following sequence: VCC, then clock signal, then input signals. During power-down, reverse the sequence: input signals, then clock signal, then VCC.
