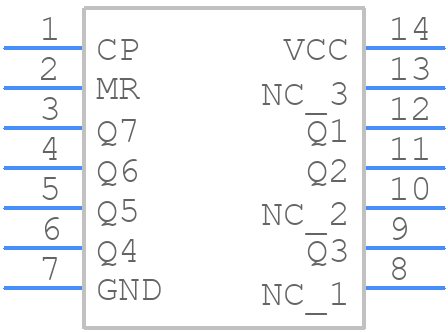

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC4024E by Texas Instruments
Results Overview of CD74HC4024E by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Industrial Automation
Aerospace and Defense
Automotive
CD74HC4024E Information
CD74HC4024E by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC4024E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-9206-5-ND
|
DigiKey | IC BINARY COUNTER 7-BIT 14DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
237 In Stock |
|
$0.3355 / $0.7500 | Buy Now |
|
DISTI #
595-CD74HC4024E
|
Mouser Electronics | Counter ICs 7-Stge Binary Ripple RoHS: Compliant | 510 |
|
$0.2960 / $0.6900 | Buy Now |
|
DISTI #
J56:1989_00097723
|
Arrow Electronics | Counter Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 6 Weeks Date Code: 2140 | Europe - 1000 |
|
$0.2814 / $0.2853 | Buy Now |
|
DISTI #
85976376
|
Verical | Counter Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 737 Package Multiple: 1 Date Code: 0601 | Americas - 7000 |
|
$0.5093 | Buy Now |
|
DISTI #
85976026
|
Verical | Counter Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 737 Package Multiple: 1 Date Code: 0701 | Americas - 4450 |
|
$0.5093 | Buy Now |
|
DISTI #
85972190
|
Verical | Counter Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 737 Package Multiple: 1 Date Code: 1001 | Americas - 3621 |
|
$0.5093 | Buy Now |
|
DISTI #
85972455
|
Verical | Counter Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 737 Package Multiple: 1 Date Code: 1101 | Americas - 2700 |
|
$0.5093 | Buy Now |
|
DISTI #
85971339
|
Verical | Counter Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 737 Package Multiple: 1 Date Code: 0501 | Americas - 2210 |
|
$0.5093 | Buy Now |
|
DISTI #
85975557
|
Verical | Counter Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 737 Package Multiple: 1 | Americas - 983 |
|
$0.5093 | Buy Now |
|
|
Bristol Electronics | 382 |
|
RFQ |
Part Details for CD74HC4024E
CD74HC4024E CAD Models
CD74HC4024E Part Data Attributes
|
|
CD74HC4024E
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC4024E
Texas Instruments
High Speed CMOS Logic 7-Stage Binary Ripple Counter 14-PDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Count Direction | UP | |
| Family | HC/UH | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e4 | |
| Length | 19.305 mm | |
| Load Capacitance (CL) | 50 pF | |
| Load/Preset Input | NO | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 20000000 Hz | |
| Max I(ol) | 0.0052 A | |
| Mode of Operation | ASYNCHRONOUS | |
| Number of Bits | 7 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 30 ns | |
| Propagation Delay (tpd) | 210 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Trigger Type | NEGATIVE EDGE | |
| Width | 7.62 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for CD74HC4024E
This table gives cross-reference parts and alternative options found for CD74HC4024E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC4024E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TC74HC4024AP | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 7-BIT UP BINARY COUNTER, PDIP14, 0.300 INCH, 2.54 MM PITCH, LEAD FREE, PLASTIC, DIP-14, Counter | CD74HC4024E vs TC74HC4024AP |
| 8601201CX | Harris Semiconductor | Check for Price | Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 7-Bit, Up Direction, CMOS, CDIP14, CERAMIC, DIP-14 | CD74HC4024E vs 8601201CX |
| SNJ54HC4024J-00 | Texas Instruments | Check for Price | HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 7-BIT UP BINARY COUNTER, CDIP14 | CD74HC4024E vs SNJ54HC4024J-00 |
| MC54HC4024JDS | Motorola Semiconductor Products | Check for Price | Binary Counter, Asynchronous, Up Direction, CMOS, CDIP14, | CD74HC4024E vs MC54HC4024JDS |
| SN74HC4024N1 | Rochester Electronics LLC | Check for Price | Binary Counter, | CD74HC4024E vs SN74HC4024N1 |
| SN74HC4024J | Texas Instruments | Check for Price | IC,COUNTER,UP,7-BIT BINARY,HC-CMOS,DIP,14PIN,CERAMIC | CD74HC4024E vs SN74HC4024J |
| 8601201CA | Motorola Semiconductor Products | Check for Price | Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 7-Bit, Up Direction, CMOS, CDIP14, CERAMIC, DIP-16 | CD74HC4024E vs 8601201CA |
| CD54HC4024F | Texas Instruments | Check for Price | High Speed CMOS Logic 7-Stage Binary Ripple Counter 14-CDIP -55 to 125 | CD74HC4024E vs CD54HC4024F |
CD74HC4024E Frequently Asked Questions (FAQ)
-
The CD74HC4024E can handle clock frequencies up to 25 MHz.
-
The CD74HC4024E requires a single 2-V to 6-V power supply, and it's recommended to use a decoupling capacitor of 0.1 μF to 1 μF between VCC and GND to ensure proper power supply decoupling.
-
The CD74HC4024E can tolerate input voltages up to 6.5 V, but it's recommended to keep input voltages within the recommended operating range of 2 V to 6 V to ensure proper operation.
-
The asynchronous reset input (MR) should be tied to VCC through a pull-up resistor (e.g., 1 kΩ) to ensure that the device is not inadvertently reset. A pulldown resistor is not recommended as it may cause the device to malfunction.
-
The propagation delay of the CD74HC4024E is typically around 10 ns to 20 ns, depending on the operating frequency and voltage.
