CD74HC393M by:

High Speed CMOS Logic Dual 4-Stage Binary Counters 14-SOIC -55 to 125

Part Details for CD74HC393M by Texas Instruments

Results Overview of CD74HC393M by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Space Technology Aerospace and Defense Automotive

CD74HC393M Information

CD74HC393M by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for CD74HC393M

Part # Distributor Description Stock Price Buy
DISTI # 85975997
Verical Counter/Divider Dual 4-Bit Binary UP 14-Pin SOIC Tube RoHS: Compliant Min Qty: 436 Package Multiple: 1 Date Code: 1401 Americas - 2037
  • 436 $0.8618
  • 500 $0.7756
  • 1,000 $0.7153
  • 10,000 $0.6378
  • 100,000 $0.5343
$0.5343 / $0.8618 Buy Now
DISTI # 85971775
Verical Counter/Divider Dual 4-Bit Binary UP 14-Pin SOIC Tube RoHS: Compliant Min Qty: 436 Package Multiple: 1 Date Code: 1101 Americas - 2000
  • 436 $0.8618
  • 500 $0.7756
  • 1,000 $0.7153
  • 10,000 $0.6378
  • 100,000 $0.5343
$0.5343 / $0.8618 Buy Now
DISTI # 85972022
Verical Counter/Divider Dual 4-Bit Binary UP 14-Pin SOIC Tube RoHS: Compliant Min Qty: 436 Package Multiple: 1 Date Code: 1001 Americas - 1781
  • 436 $0.8618
  • 500 $0.7756
  • 1,000 $0.7153
  • 10,000 $0.6378
  • 100,000 $0.5343
$0.5343 / $0.8618 Buy Now
DISTI # 88041537
Verical Counter/Divider Dual 4-Bit Binary UP 14-Pin SOIC Tube RoHS: Compliant Min Qty: 436 Package Multiple: 1 Date Code: 1301 Americas - 501
  • 436 $0.8618
  • 500 $0.7756
  • 1,000 $0.7153
  • 10,000 $0.6378
  • 100,000 $0.5343
$0.5343 / $0.8618 Buy Now
Bristol Electronics   134
RFQ
Rochester Electronics CD74HC393 High Speed CMOS Logic Dual 4-Stage Binary Counters RoHS: Compliant Status: Obsolete Min Qty: 1 9970
  • 100 $0.6894
  • 500 $0.6205
  • 1,000 $0.5722
  • 10,000 $0.5102
  • 100,000 $0.4274
$0.4274 / $0.6894 Buy Now
LCSC Falling Edge 2V6V 2 35MHz SOIC-14 Counters Dividers ROHS 1
  • 1 $1.2977
  • 10 $1.1561
  • 30 $1.0205
  • 100 $0.9215
  • 500 $0.8804
  • 1,000 $0.8591
$0.8591 / $1.2977 Buy Now

Part Details for CD74HC393M

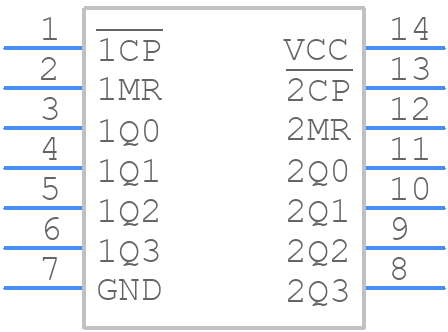

CD74HC393M CAD Models

CD74HC393M Part Data Attributes

CD74HC393M Texas Instruments
Buy Now Datasheet
Compare Parts:
CD74HC393M Texas Instruments High Speed CMOS Logic Dual 4-Stage Binary Counters 14-SOIC -55 to 125
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, PLASTIC, MS-012AB, SOIC-14
Pin Count 14
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Count Direction UP
Family HC/UH
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Length 8.65 mm
Load Capacitance (CL) 50 pF
Load/Preset Input NO
Logic IC Type BINARY COUNTER
Max Frequency@Nom-Sup 20000000 Hz
Max I(ol) 0.0052 A
Mode of Operation ASYNCHRONOUS
Moisture Sensitivity Level 1
Number of Bits 4
Number of Functions 2
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TUBE
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.08 mA
Prop. Delay@Nom-Sup 60 ns
Propagation Delay (tpd) 430 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 4.5 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Trigger Type NEGATIVE EDGE
Width 3.9 mm
fmax-Min 24 MHz

Alternate Parts for CD74HC393M

This table gives cross-reference parts and alternative options found for CD74HC393M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC393M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MM54HC393W Rochester Electronics LLC Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP14, CERAMIC, FP-14 CD74HC393M vs MM54HC393W
CD74HC393M Intersil Corporation Check for Price BINARY COUNTER CD74HC393M vs CD74HC393M
CD74HC393M96E4 Texas Instruments Check for Price High Speed CMOS Logic Dual 4-Stage Binary Counters 14-SOIC -55 to 125 CD74HC393M vs CD74HC393M96E4
SN74HC393DTE4 Rochester Electronics LLC Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO14, GREEN, PLASTIC, SOIC-14 CD74HC393M vs SN74HC393DTE4
5962-01-423-8645 Renesas Electronics Corporation Check for Price Counter CD74HC393M vs 5962-01-423-8645
CD74HC393MG4 Texas Instruments Check for Price High Speed CMOS Logic Dual 4-Stage Binary Counters 14-SOIC -55 to 125 CD74HC393M vs CD74HC393MG4
SN74HC393DTG4 Rochester Electronics LLC Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO14, GREEN, PLASTIC, SOIC-14 CD74HC393M vs SN74HC393DTG4
MC74HC393DR2 Rochester Electronics LLC Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO14, PLASTIC, SOIC-14 CD74HC393M vs MC74HC393DR2
SN74HC393DE4 Rochester Electronics LLC Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 CD74HC393M vs SN74HC393DE4
CD74HC393ME4 Rochester Electronics LLC Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 CD74HC393M vs CD74HC393ME4
Part Number Manufacturer Composite Price Description Compare
MC74HC393AFEL Rochester Electronics LLC Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO14, EIAJ, SO-14 CD74HC393M vs MC74HC393AFEL
M38510/66309B2A Texas Instruments Check for Price HC/UH SERIES, ASYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, QCC20, 0.350 X 0.350 INCH, LCC-20 CD74HC393M vs M38510/66309B2A
HD74HC393RP Renesas Electronics Corporation Check for Price IC,COUNTER,UP,4-BIT BINARY,HC-CMOS,SOP,14PIN,PLASTIC CD74HC393M vs HD74HC393RP
SN74HC393FN3 Rochester Electronics LLC Check for Price Binary Counter, CD74HC393M vs SN74HC393FN3
JM38510/66309BCA Texas Instruments Check for Price Dual 4-Bit Binary Counters 14-CDIP -55 to 125 CD74HC393M vs JM38510/66309BCA
5962-8410001CX Intersil Corporation Check for Price HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP14, FRIT SEALED, CERDIP-14 CD74HC393M vs 5962-8410001CX
MC54HC393J Motorola Semiconductor Products Check for Price Binary Counter, HC/UH Series, Asynchronous, Negative Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP14, CERAMIC, DIP-14 CD74HC393M vs MC54HC393J
SN74HC393N-10 Texas Instruments Check for Price HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP14 CD74HC393M vs SN74HC393N-10
933669090652 NXP Semiconductors Check for Price HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP14, SOT-27-1, DIP-14 CD74HC393M vs 933669090652
SN54HC393J-00 Texas Instruments Check for Price HC/UH SERIES, ASYN NEGATIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP14 CD74HC393M vs SN54HC393J-00

CD74HC393M Related Parts

CD74HC393M Frequently Asked Questions (FAQ)

  • The CD74HC393M can handle clock frequencies up to 30 MHz.

  • The CD74HC393M requires a power supply voltage (VCC) of 2.0 V to 6.0 V, and it is recommended to decouple the power supply with a 0.1 μF capacitor.

  • The propagation delay time of the CD74HC393M is typically around 15 ns, but it can vary depending on the operating conditions and the specific application.

  • Yes, the CD74HC393M is compatible with 3.3 V systems, but it is recommended to check the voltage tolerance of the specific system and ensure that the CD74HC393M is operated within its recommended operating conditions.

  • The CD74HC393M has an asynchronous reset input (MR) that can be used to reset the counter. The reset input is active-low, meaning that it must be pulled low to reset the counter.
