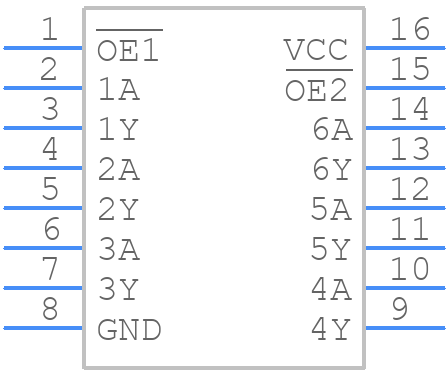

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC367M by Texas Instruments
Results Overview of CD74HC367M by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD74HC367M Information
CD74HC367M by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC367M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
86274221
|
Verical | Buffer/Line Driver 6-CH Non-Inverting 3-ST CMOS 16-Pin SOIC Tube RoHS: Compliant Min Qty: 597 Package Multiple: 1 Date Code: 1101 | Americas - 7905 |
|
$0.4331 / $0.6288 | Buy Now |
|
|
Bristol Electronics | 296 |
|
RFQ | ||
|
|
Quest Components | IC,BUFFER/DRIVER,DUAL,2-BIT/4-BIT,HC-CMOS,SOP,16PIN,PLASTIC | 236 |
|
$0.7670 / $1.5340 | Buy Now |
|
|
Quest Components | IC,BUFFER/DRIVER,DUAL,2-BIT/4-BIT,HC-CMOS,SOP,16PIN,PLASTIC | 97 |
|
$0.4295 / $0.9204 | Buy Now |
|
|
Rochester Electronics | CD74HC367 High Speed CMOS Logic Hex Buffers/Line Drivers with Non-Inverting 3-State Outputs RoHS: Compliant Status: Obsolete Min Qty: 1 | 7945 |
|
$0.3465 / $0.5589 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ |
Part Details for CD74HC367M
CD74HC367M CAD Models
CD74HC367M Part Data Attributes
|
|
CD74HC367M
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC367M
Texas Instruments
6-ch, 2-V to 6-V buffers with 3-state outputs 16-SOIC -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ONE FUNCTION WITH TWO BITS | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | HC | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.006 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 6 | |
| Number of Ports | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.16 mA | |
| Prop. Delay@Nom-Sup | 32 ns | |
| Propagation Delay (tpd) | 160 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.91 mm |
Alternate Parts for CD74HC367M
This table gives cross-reference parts and alternative options found for CD74HC367M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC367M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HC367D,652 | Nexperia | $0.2688 | 74HC367; 74HCT367 - Hex buffer/line driver; 3-state@en-us SOP 16-Pin | CD74HC367M vs 74HC367D,652 |
| CD74HC367M96E4 | Rochester Electronics LLC | Check for Price | Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD74HC367M vs CD74HC367M96E4 |
| SN74HC367DE4 | Texas Instruments | Check for Price | HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD74HC367M vs SN74HC367DE4 |
| SN74HC367D-00 | Texas Instruments | Check for Price | HC/UH SERIES, 6-BIT DRIVER, TRUE OUTPUT, PDSO16 | CD74HC367M vs SN74HC367D-00 |
| CD74HC367MT | Texas Instruments | Check for Price | 6-ch, 2-V to 6-V buffers with 3-state outputs 16-SOIC -55 to 125 | CD74HC367M vs CD74HC367MT |
| SN74HC367DTE4 | Texas Instruments | Check for Price | HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD74HC367M vs SN74HC367DTE4 |
CD74HC367M Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the CD74HC367M is 30 MHz, but it can vary depending on the specific application and operating conditions.
-
It is recommended to power up the VCC pin before the input signals and power down the VCC pin after the input signals to prevent unwanted output states.
-
The recommended termination scheme is to use a 50-ohm pull-up resistor to VCC for each output, and a 50-ohm pull-down resistor to GND for each input.
-
Yes, the CD74HC367M is compatible with 5V systems, but it is recommended to use a voltage regulator to ensure a stable 5V supply.
-
The CD74HC367M has a maximum junction temperature of 150°C. It is recommended to use a heat sink or thermal pad to dissipate heat, especially in high-power applications.
