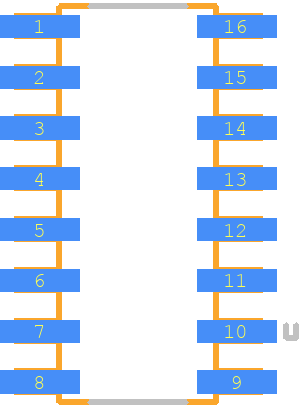

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC366M by Texas Instruments
Results Overview of CD74HC366M by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Audio and Video Systems
Renewable Energy
Automotive
CD74HC366M Information
CD74HC366M by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC366M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-33071-5-ND
|
DigiKey | IC BUFFER INVERT 6V 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
388 In Stock |
|
$0.6771 / $1.2500 | Buy Now |
|
DISTI #
86276650
|
Verical | Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin SOIC Tube RoHS: Compliant Min Qty: 410 Package Multiple: 1 Date Code: 0401 | Americas - 2520 |
|
$0.5683 / $0.9165 | Buy Now |
|
DISTI #
86277089
|
Verical | Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin SOIC Tube RoHS: Compliant Min Qty: 410 Package Multiple: 1 Date Code: 0001 | Americas - 880 |
|
$0.5683 / $0.9165 | Buy Now |
|
DISTI #
86277216
|
Verical | Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin SOIC Tube RoHS: Compliant Min Qty: 410 Package Multiple: 1 Date Code: 1101 | Americas - 640 |
|
$0.5683 / $0.9165 | Buy Now |
|
DISTI #
88041811
|
Verical | Buffer/Line Driver 6-CH Inverting 3-ST CMOS 16-Pin SOIC Tube RoHS: Compliant Min Qty: 410 Package Multiple: 1 Date Code: 0701 | Americas - 440 |
|
$0.5683 / $0.9165 | Buy Now |
|
|
Rochester Electronics | CD74HC366 High Speed CMOS Logic Hex Buffers/Line Drivers with Inverting 3-State Outputs RoHS: Compliant Status: Obsolete Min Qty: 1 | 4775 |
|
$0.4546 / $0.7332 | Buy Now |
Part Details for CD74HC366M
CD74HC366M CAD Models
CD74HC366M Part Data Attributes
|
|
CD74HC366M
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC366M
Texas Instruments
6-ch, 2-V to 6-V inverters with 3-state outputs 16-SOIC -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AC, SOIC-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | WITH DUAL OUTPUT ENABLE | |
| Control Type | ENABLE LOW | |
| Count Direction | UNIDIRECTIONAL | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BUS DRIVER | |
| Max I(ol) | 0.006 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 6 | |
| Number of Functions | 6 | |
| Number of Ports | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | INVERTED | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.16 mA | |
| Prop. Delay@Nom-Sup | 33 ns | |
| Propagation Delay (tpd) | 165 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Width | 3.9 mm |
Alternate Parts for CD74HC366M
This table gives cross-reference parts and alternative options found for CD74HC366M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC366M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HC366D,653 | Nexperia | $0.3708 | 74HC366; 74HCT366 - Hex buffer/line driver; 3-state; inverting@en-us SOP 16-Pin | CD74HC366M vs 74HC366D,653 |
| 933714680653 | Nexperia | Check for Price | Bus Driver, HC/UH Series, 6-Func, 1-Bit, Inverted Output, CMOS, PDSO16 | CD74HC366M vs 933714680653 |
| CD74HC366M96G4 | Texas Instruments | Check for Price | High Speed CMOS Logic Hex Buffers/Line Drivers with Inverting 3-State Outputs 16-SOIC -55 to 125 | CD74HC366M vs CD74HC366M96G4 |
| SN74HC366DR-00 | Texas Instruments | Check for Price | HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16 | CD74HC366M vs SN74HC366DR-00 |
| 74HC366D-T | NXP Semiconductors | Check for Price | IC HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16, 3.90 MM, PLASTIC, MS-012, SOT-109-1, SOP-16, Bus Driver/Transceiver | CD74HC366M vs 74HC366D-T |
| CD74HC366M | Rochester Electronics LLC | Check for Price | HC/UH SERIES, 6-BIT DRIVER, INVERTED OUTPUT, PDSO16 | CD74HC366M vs CD74HC366M |
| GD74HC366D | MagnaChip Semiconductor Ltd | Check for Price | Bus Driver, HC/UH Series, 1-Func, 6-Bit, Inverted Output, CMOS, PDSO16, DSO-16 | CD74HC366M vs GD74HC366D |
