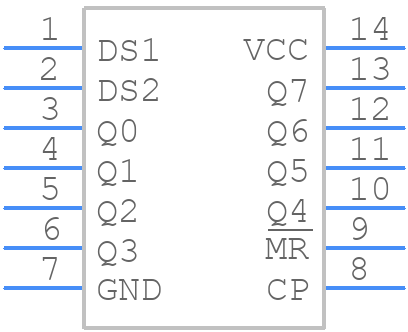

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC164M96G4 by Texas Instruments
Results Overview of CD74HC164M96G4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
CD74HC164M96G4 Information
CD74HC164M96G4 by Texas Instruments is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC164M96G4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-CD74HC164M96G4
|
Mouser Electronics | Counter Shift Registers High Speed CMOS 8-Bi t Shift Register ALT 595-CD74HC164M96 RoHS: Compliant | 1400 |
|
$0.2390 / $1.3800 | Buy Now |
Part Details for CD74HC164M96G4
CD74HC164M96G4 CAD Models
CD74HC164M96G4 Part Data Attributes
|
|
CD74HC164M96G4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC164M96G4
Texas Instruments
High Speed CMOS Logic 8-Bit Serial-In/Parallel-Out Shift Register 14-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AB, SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Count Direction | RIGHT | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | SERIAL IN PARALLEL OUT | |
| Max Frequency@Nom-Sup | 20000000 Hz | |
| Max I(ol) | 0.0052 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.16 mA | |
| Prop. Delay@Nom-Sup | 38 ns | |
| Propagation Delay (tpd) | 255 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for CD74HC164M96G4
This table gives cross-reference parts and alternative options found for CD74HC164M96G4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC164M96G4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74HC164M | RCA | Check for Price | Shift Register, 8-Bit, CMOS, PDSO14, | CD74HC164M96G4 vs CD74HC164M |
| SN74HC164DTE4 | Texas Instruments | Check for Price | HC/UH SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO14, GREEN, PLASTIC, MS-012AB, SOIC-14 | CD74HC164M96G4 vs SN74HC164DTE4 |
| 935300442118 | Nexperia | Check for Price | Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, PDSO14 | CD74HC164M96G4 vs 935300442118 |
| TC74HC164AFN | Toshiba America Electronic Components | Check for Price | IC HC/UH SERIES, 8-BIT RIGHT SERIAL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO14, 0.150 INCH, 1.27 MM PITCH, LEAD FREE, PLASTIC, SOL-14, Shift Register | CD74HC164M96G4 vs TC74HC164AFN |
CD74HC164M96G4 Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the CD74HC164M96G4 is 25 MHz, but it can vary depending on the operating voltage and temperature.
-
To ensure reliable data transfer, make sure to meet the setup and hold time requirements, use a stable clock signal, and minimize noise and jitter on the data and clock lines.
-
No, the CD74HC164M96G4 is a 2-V to 6-V VCC device, but it is not recommended to operate it at 5V. The recommended operating voltage range is 2V to 3.6V.
-
The output enable (OE) pin is active-low, meaning that the outputs are enabled when OE is low and disabled when OE is high. Make sure to connect OE to a valid logic level to avoid output contention.
-
The propagation delay (tPD) for the CD74HC164M96G4 is typically around 15 ns, but it can vary depending on the operating voltage, temperature, and load capacitance.
