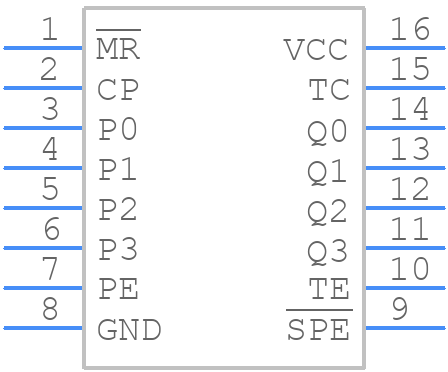

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC163M by Texas Instruments
Results Overview of CD74HC163M by Texas Instruments
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Environmental Monitoring
Industrial Automation
Agriculture Technology
CD74HC163M Information
CD74HC163M by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD74HC163M96 | Texas Instruments | High Speed CMOS Logic 4-Bit Binary Counter with Synchronous Reset 16-SOIC -55 to 125 | |
| CD74HC163M | Texas Instruments | High Speed CMOS Logic 4-Bit Binary Counter with Synchronous Reset 16-SOIC -55 to 125 | |
| CD74HC163MT | Texas Instruments | High Speed CMOS Logic 4-Bit Binary Counter with Synchronous Reset 16-SOIC -55 to 125 |
Price & Stock for CD74HC163M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-33034-5-ND
|
DigiKey | IC BINARY COUNTER 4-BIT 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
308 In Stock |
|
$0.7413 / $1.3600 | Buy Now |
|
DISTI #
85954883
|
Verical | Counter Single 4-Bit Sync Binary UP 16-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 1501 | Americas - 6120 |
|
$1.0076 | Buy Now |
|
DISTI #
85954401
|
Verical | Counter Single 4-Bit Sync Binary UP 16-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 0101 | Americas - 5380 |
|
$1.0076 | Buy Now |
|
DISTI #
85953713
|
Verical | Counter Single 4-Bit Sync Binary UP 16-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 1101 | Americas - 5188 |
|
$1.0076 | Buy Now |
|
DISTI #
85954349
|
Verical | Counter Single 4-Bit Sync Binary UP 16-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 0701 | Americas - 1000 |
|
$1.0076 | Buy Now |
|
DISTI #
85954326
|
Verical | Counter Single 4-Bit Sync Binary UP 16-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 | Americas - 880 |
|
$1.0076 | Buy Now |
|
DISTI #
85954075
|
Verical | Counter Single 4-Bit Sync Binary UP 16-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 0401 | Americas - 720 |
|
$1.0076 | Buy Now |
|
DISTI #
85953992
|
Verical | Counter Single 4-Bit Sync Binary UP 16-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 1001 | Americas - 720 |
|
$1.0076 | Buy Now |
|
|
Bristol Electronics | 2160 |
|
RFQ | ||
|
|
Bristol Electronics | 56 |
|
RFQ |
Part Details for CD74HC163M
CD74HC163M CAD Models
CD74HC163M Part Data Attributes
|
|
CD74HC163M
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC163M
Texas Instruments
High Speed CMOS Logic 4-Bit Binary Counter with Synchronous Reset 16-SOIC -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | TCO OUTPUT | |
| Count Direction | UP | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Load/Preset Input | YES | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 20000000 Hz | |
| Max I(ol) | 0.0052 A | |
| Mode of Operation | SYNCHRONOUS | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 39 ns | |
| Propagation Delay (tpd) | 280 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for CD74HC163M
This table gives cross-reference parts and alternative options found for CD74HC163M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC163M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MM74HC163M | Fairchild Semiconductor Corporation | Check for Price | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16 | CD74HC163M vs MM74HC163M |
| MC74HC163D | Motorola Mobility LLC | Check for Price | HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, SOIC-16 | CD74HC163M vs MC74HC163D |
| SN74HC163DTG4 | Rochester Electronics LLC | Check for Price | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD74HC163M vs SN74HC163DTG4 |
| CD74HC163MT | Texas Instruments | Check for Price | High Speed CMOS Logic 4-Bit Binary Counter with Synchronous Reset 16-SOIC -55 to 125 | CD74HC163M vs CD74HC163MT |
| CD74HC163M96G4 | Texas Instruments | Check for Price | HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD74HC163M vs CD74HC163M96G4 |
| 74HC163D,652 | Nexperia | Check for Price | 74HC(T)163 - Presettable synchronous 4-bit binary counter; synchronous reset@en-us SOP 16-Pin | CD74HC163M vs 74HC163D,652 |
| MM74HC163M | Rochester Electronics LLC | Check for Price | Binary Counter, HC/UH Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, PDSO16, 0.150 INCH, MS-012, SOIC-16 | CD74HC163M vs MM74HC163M |
| SN74HC163DG4 | Texas Instruments | Check for Price | 4-Bit Synchronous Binary Counters 16-SOIC -40 to 85 | CD74HC163M vs SN74HC163DG4 |
| SN74HC163D3 | Texas Instruments | Check for Price | IC IC,COUNTER,UP,4-BIT BINARY,HC-CMOS,SOP,16PIN,PLASTIC, Counter | CD74HC163M vs SN74HC163D3 |
CD74HC163M Frequently Asked Questions (FAQ)
-
The maximum clock frequency for the CD74HC163M is 25 MHz, but it can vary depending on the operating voltage and temperature. It's recommended to check the timing diagrams and electrical characteristics in the datasheet to ensure the desired clock frequency meets the setup and hold time requirements.
-
The asynchronous reset (RST) input should be asserted low to reset the counter. When RST is low, the counter is reset to zero, and the output (Q0-Q3) is set to zero. The RST input should be synchronized with the clock (CLK) input to avoid metastability issues.
-
The Enable (EN) input allows the counter to be enabled or disabled. When EN is high, the counter is enabled and counts up or down based on the clock (CLK) and load (LD) inputs. When EN is low, the counter is disabled, and the output (Q0-Q3) remains unchanged.
-
To load a preset value into the counter, assert the Load (LD) input low, and apply the desired value to the parallel data inputs (D0-D3). The counter will load the preset value when LD returns high.
-
The output (Q0-Q3) is a binary-coded decimal (BCD) format, where each output represents a 4-bit binary code (0000 to 1001) that corresponds to a decimal value from 0 to 9.
