High Speed CMOS Logic 10-to-4 Line Priority Encoder 16-SOIC -55 to 125

Part Details for CD74HC147MT by Texas Instruments

Results Overview of CD74HC147MT by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation Robotics and Drones

CD74HC147MT Information

CD74HC147MT by Texas Instruments is an Arithmetic Circuit.
Arithmetic Circuits are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for CD74HC147MT

Part # Distributor Description Stock Price Buy
DISTI # 2156-CD74HC147MT-ND
DigiKey IC PRIORITY ENCOD 1X10:4 16-SOIC Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT 8000
In Stock
  • 499 $0.6000
$0.6000 Buy Now
DISTI # 296-CD74HC147MTCT-ND
DigiKey IC PRIORITY ENCOD 1X10:4 16-SOIC Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 123
In Stock
  • 1 $1.0200
  • 10 $0.7320
  • 25 $0.6604
  • 100 $0.5819
  • 750 $0.5107
  • 1,250 $0.4982
  • 1,750 $0.4909
  • 2,500 $0.4839
  • 6,250 $0.4687
  • 12,500 $0.4596
$0.4596 / $1.0200 Buy Now
DISTI # 86276545
Verical Encoder 9 to 4 Priority CMOS 16-Pin SOIC T/R RoHS: Compliant Min Qty: 518 Package Multiple: 1 Date Code: 1501 Americas - 4500
  • 518 $0.7240
$0.7240 Buy Now
DISTI # 86277280
Verical Encoder 9 to 4 Priority CMOS 16-Pin SOIC T/R RoHS: Compliant Min Qty: 518 Package Multiple: 1 Date Code: 1001 Americas - 3500
  • 518 $0.7240
$0.7240 Buy Now
Rochester Electronics 74HC147 High Speed CMOS Logic 10-to-4 Line Priority Encoder RoHS: Compliant Status: Obsolete Min Qty: 1 8000
  • 100 $0.5792
  • 500 $0.5213
  • 1,000 $0.4807
  • 10,000 $0.4286
  • 100,000 $0.3591
$0.3591 / $0.5792 Buy Now
Win Source Electronics IC 10-4LN PRIORITY ENC 16SOIC 880
  • 185 $0.3128
  • 455 $0.2566
  • 700 $0.2487
  • 960 $0.2407
  • 1,245 $0.2326
  • 1,665 $0.2086
$0.2086 / $0.3128 Buy Now

Part Details for CD74HC147MT

CD74HC147MT CAD Models

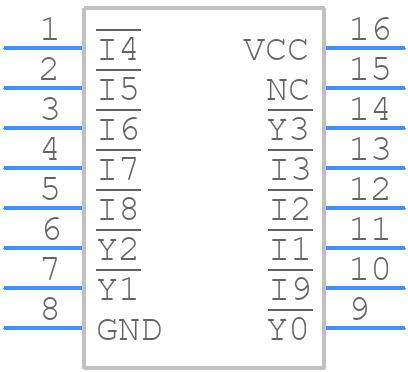

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CD74HC147MT Part Data Attributes

Parametric Data
CD74HC147MT Texas Instruments
Buy Now Datasheet
Compare Parts:
CD74HC147MT Texas Instruments High Speed CMOS Logic 10-to-4 Line Priority Encoder 16-SOIC -55 to 125
Rohs Code No
Part Life Cycle Code Obsolete
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code SOIC
Package Description GREEN, PLASTIC, MS-012AC, SOIC-16
Pin Count 16
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature 9 TO 4 LINE PRIORITY ENCODER
Family HC/UH
JESD-30 Code R-PDSO-G16
JESD-609 Code e4
Length 9.9 mm
Load Capacitance (CL) 50 pF
Logic IC Type ENCODER
Max I(ol) 0.0052 A
Moisture Sensitivity Level 1
Number of Bits 9
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method TR
Peak Reflow Temperature (Cel) 260
Power Supply Current-Max (ICC) 0.16 mA
Prop. Delay@Nom-Sup 32 ns
Propagation Delay (tpd) 240 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 4.5 V
Surface Mount YES
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 3.9 mm
