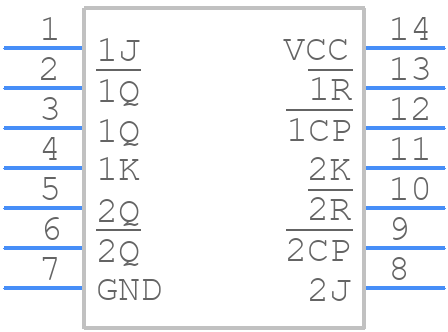

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74HC107M by Texas Instruments
Results Overview of CD74HC107M by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (6 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
CD74HC107M Information
CD74HC107M by Texas Instruments is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74HC107M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-CD74HC107M-ND
|
DigiKey | IC FF JK TYPE DBL 1-BIT 14-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
7434 In Stock |
|
$0.8400 | Buy Now |
|
DISTI #
296-25969-5-ND
|
DigiKey | IC FF JK TYPE DBL 1-BIT 14-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
91 In Stock |
|
$0.8412 / $1.3600 | Buy Now |
|
DISTI #
86276483
|
Verical | Flip Flop JK-Type Neg-Edge Push-Pull 2-Element 14-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 | Americas - 2700 |
|
$0.8364 / $1.0076 | Buy Now |
|
DISTI #
86276451
|
Verical | Flip Flop JK-Type Neg-Edge Push-Pull 2-Element 14-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 1401 | Americas - 1000 |
|
$0.8364 / $1.0076 | Buy Now |
|
DISTI #
86276565
|
Verical | Flip Flop JK-Type Neg-Edge Push-Pull 2-Element 14-Pin SOIC Tube RoHS: Compliant Min Qty: 373 Package Multiple: 1 Date Code: 1001 | Americas - 500 |
|
$0.9069 / $1.0076 | Buy Now |
|
|
Bristol Electronics | 8 |
|
RFQ | ||
|
|
Quest Components | J-K FLIP-FLOP, HC SERIES, 2-FUNC, NEGATIVE EDGE TRIGGERED, 2-BIT, COMPLEMENTARY OUTPUT, CMOS, PDSO14 | 60 |
|
$0.7500 / $1.2500 | Buy Now |
|
|
Quest Components | J-K FLIP-FLOP, HC SERIES, 2-FUNC, NEGATIVE EDGE TRIGGERED, 2-BIT, COMPLEMENTARY OUTPUT, CMOS, PDSO14 | 10 |
|
$1.1068 / $1.3281 | Buy Now |
|
|
Quest Components | J-K FLIP-FLOP, HC SERIES, 2-FUNC, NEGATIVE EDGE TRIGGERED, 2-BIT, COMPLEMENTARY OUTPUT, CMOS, PDSO14 | 6 |
|
$0.7050 | Buy Now |
|
|
Rochester Electronics | CD74HC107 High Speed CMOS Logic Dual Negative-Edge-Triggered J-K Flip-Flops with Reset RoHS: Compliant Status: Obsolete Min Qty: 1 | 7434 |
|
$0.4998 / $0.8061 | Buy Now |
Part Details for CD74HC107M
CD74HC107M CAD Models
CD74HC107M Part Data Attributes
|
|
CD74HC107M
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74HC107M
Texas Instruments
High Speed CMOS Logic Dual Negative-Edge-Triggered J-K Flip-Flops with Reset 14-SOIC -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | J-K FLIP-FLOP | |
| Max Frequency@Nom-Sup | 20000000 Hz | |
| Max I(ol) | 0.006 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 2 | |
| Number of Functions | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Polarity | COMPLEMENTARY | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.04 mA | |
| Prop. Delay@Nom-Sup | 51 ns | |
| Propagation Delay (tpd) | 255 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 4.5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | NEGATIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for CD74HC107M
This table gives cross-reference parts and alternative options found for CD74HC107M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74HC107M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74HC107M | Intersil Corporation | Check for Price | J-K FLIP-FLOP | CD74HC107M vs CD74HC107M |
CD74HC107M Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the CD74HC107M is 25 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow, and ensuring that the device is operated within its specified temperature range (-40°C to 125°C).
-
The recommended power-on sequence for the CD74HC107M is to apply power to the VCC pin before applying any input signals, and to ensure that the power supply is stable and within the specified voltage range (2V to 6V) before applying any inputs.
-
Unused inputs on the CD74HC107M should be tied to a valid logic level (either VCC or GND) to prevent floating inputs and ensure reliable operation.
-
The maximum current that can be sourced or sunk by the CD74HC107M is 25 mA per output pin, but it is recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
