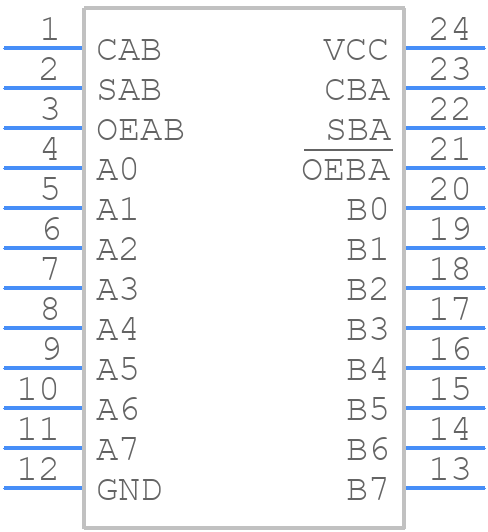

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74ACT652M96 by Texas Instruments
Results Overview of CD74ACT652M96 by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Renewable Energy
Robotics and Drones
CD74ACT652M96 Information
CD74ACT652M96 by Texas Instruments is a Bus Driver/Transceiver.
Bus Driver/Transceivers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74ACT652M96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-CD74ACT652M96-ND
|
DigiKey | IC TXRX NON-INVERT 5.5V 24SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
2637 In Stock |
|
$1.6400 | Buy Now |
|
DISTI #
296-29549-1-ND
|
DigiKey | IC TXRX NON-INVERT 5.5V 24SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$1.3756 / $2.4700 | Buy Now |
|
DISTI #
595-CD74ACT652M96
|
Mouser Electronics | Bus Transceivers Octal Non-Inv Bus Tr ansceiver A 595-CD74ACT652M RoHS: Compliant | 0 |
|
$1.3300 | Order Now |
|
DISTI #
86277929
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC T/R RoHS: Compliant Min Qty: 223 Package Multiple: 1 | Americas - 1950 |
|
$1.6875 | Buy Now |
|
DISTI #
86277797
|
Verical | Bus XCVR Single 8-CH 3-ST 24-Pin SOIC T/R RoHS: Compliant Min Qty: 223 Package Multiple: 1 Date Code: 0701 | Americas - 687 |
|
$1.6875 | Buy Now |
|
|
Rochester Electronics | CD74ACT652 Octal Non-Inverting Bus Transceivers/Registers with 3-State Outputs RoHS: Compliant Status: Active Min Qty: 1 | 2637 |
|
$0.8370 / $1.3500 | Buy Now |
Part Details for CD74ACT652M96
CD74ACT652M96 CAD Models
CD74ACT652M96 Part Data Attributes
|
|
CD74ACT652M96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74ACT652M96
Texas Instruments
Octal Non-Inverting Bus Transceivers/Registers with 3-State Outputs 24-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, SOIC-24 | |
| Pin Count | 24 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | |
| Control Type | INDEPENDENT CONTROL | |
| Count Direction | BIDIRECTIONAL | |
| Family | ACT | |
| JESD-30 Code | R-PDSO-G24 | |
| JESD-609 Code | e4 | |
| Length | 15.4 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | REGISTERED BUS TRANSCEIVER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 8 | |
| Number of Ports | 2 | |
| Number of Terminals | 24 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP24,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.16 mA | |
| Prop. Delay@Nom-Sup | 10 ns | |
| Propagation Delay (tpd) | 12.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 2.65 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 7.5 mm |
Alternate Parts for CD74ACT652M96
This table gives cross-reference parts and alternative options found for CD74ACT652M96. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74ACT652M96, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74ACT652M96 | Rochester Electronics LLC | Check for Price | ACT SERIES, 8-BIT REGISTERED TRANSCEIVER, TRUE OUTPUT, PDSO24, GREEN, SOIC-24 | CD74ACT652M96 vs CD74ACT652M96 |
CD74ACT652M96 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the CD74ACT652M96 is 100 MHz.
-
Yes, the CD74ACT652M96 is 5V tolerant, meaning it can accept 5V input signals while operating at a lower supply voltage (VCC).
-
The propagation delay of the CD74ACT652M96 is typically around 3.5 ns (maximum) at 25°C and 4.5V VCC.
-
Yes, the CD74ACT652M96 can operate with a supply voltage (VCC) as low as 2.0V, making it suitable for 3.3V systems.
-
Yes, the CD74ACT652M96 is available in a lead-free (RoHS-compliant) package, making it suitable for environmentally friendly designs.
