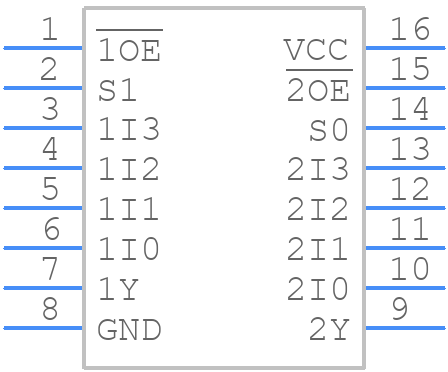

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74ACT253M96 by Texas Instruments
Results Overview of CD74ACT253M96 by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
CD74ACT253M96 Information
CD74ACT253M96 by Texas Instruments is a Multiplexer/Demultiplexer.
Multiplexer/Demultiplexers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74ACT253M96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-CD74ACT253M96-ND
|
DigiKey | IC MULTIPLEXER 2 X 4:1 16-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
4500 In Stock |
|
$0.6700 | Buy Now |
|
DISTI #
296-CD74ACT253M96CT-ND
|
DigiKey | IC MULTIPLEXER 2 X 4:1 16-SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1997 In Stock |
|
$0.5526 / $1.2100 | Buy Now |
|
DISTI #
595-CD74ACT253M96
|
Mouser Electronics | Encoders, Decoders, Multiplexers & Demultiplexers Dual 4-Input Mltplxr With 3-State Output A 595-CD74ACT253M RoHS: Compliant | 3622 |
|
$0.5400 / $1.2100 | Buy Now |
|
DISTI #
86274251
|
Verical | Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SOIC T/R RoHS: Compliant Min Qty: 467 Package Multiple: 1 Date Code: 1301 | Americas - 2500 |
|
$0.4988 / $0.8044 | Buy Now |
|
DISTI #
86274274
|
Verical | Multiplexer 1-Element CMOS 3-ST 8-IN 16-Pin SOIC T/R RoHS: Compliant Min Qty: 467 Package Multiple: 1 Date Code: 1101 | Americas - 2000 |
|
$0.4988 / $0.8044 | Buy Now |
|
|
Rochester Electronics | CD74ACT253 Dual 4-Input Multiplexers with 3-State Outputs RoHS: Compliant Status: Active Min Qty: 1 | 4500 |
|
$0.3990 / $0.6435 | Buy Now |
Part Details for CD74ACT253M96
CD74ACT253M96 CAD Models
CD74ACT253M96 Part Data Attributes
|
|
CD74ACT253M96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74ACT253M96
Texas Instruments
Dual 4-Input Multiplexers with 3-State Outputs 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | ACT | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | MULTIPLEXER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Inputs | 4 | |
| Number of Outputs | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | 3-STATE | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.16 mA | |
| Prop. Delay@Nom-Sup | 20 ns | |
| Propagation Delay (tpd) | 18 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
CD74ACT253M96 Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the CD74ACT253M96 is 100 MHz.
-
Yes, the CD74ACT253M96 is 5V tolerant, meaning it can accept input voltages up to 5.5V even when powered at 3.3V.
-
The propagation delay of the CD74ACT253M96 is typically around 3.5 ns at 3.3V and 25°C.
-
Yes, the CD74ACT253M96 can be used for 3.3V to 5V level translation, but it's recommended to use an external pull-up resistor to ensure proper voltage translation.
-
Yes, the CD74ACT253M96 is available in a lead-free (RoHS-compliant) package, which is suitable for use in environmentally friendly designs.
