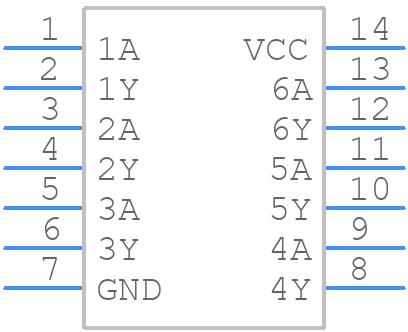

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74ACT14MG4 by Texas Instruments
Results Overview of CD74ACT14MG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (5 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD74ACT14MG4 Information
CD74ACT14MG4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74ACT14MG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 59 |
|
RFQ | ||
|
|
Vyrian | Logic ICs | 437 |
|
RFQ |
Part Details for CD74ACT14MG4
CD74ACT14MG4 CAD Models
CD74ACT14MG4 Part Data Attributes
|
|
CD74ACT14MG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74ACT14MG4
Texas Instruments
6-ch, 4.5-V to 5.5-V inverters with Schmitt-Trigger inputs 14-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | ACT | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 14.5 ns | |
| Propagation Delay (tpd) | 14.5 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD74ACT14MG4
This table gives cross-reference parts and alternative options found for CD74ACT14MG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74ACT14MG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD74ACT14M | General Electric Solid State | Check for Price | Gate, | CD74ACT14MG4 vs CD74ACT14M |
| CD74ACT14M96 | Intersil Corporation | Check for Price | INVERT GATE | CD74ACT14MG4 vs CD74ACT14M96 |
| CD74ACT14M | Intersil Corporation | Check for Price | INVERT GATE | CD74ACT14MG4 vs CD74ACT14M |
| CD74ACT14M96 | RCA | Check for Price | Inverter, CMOS, PDSO14, | CD74ACT14MG4 vs CD74ACT14M96 |
CD74ACT14MG4 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CD74ACT14MG4 is 4.5V to 5.5V, although it can operate as low as 2V with reduced performance.
-
When the input pins are not in use, they should be tied to a valid logic level (VCC or GND) to prevent them from floating and causing unwanted switching.
-
The maximum frequency of operation for the CD74ACT14MG4 is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
-
To ensure proper powering, the CD74ACT14MG4 should be powered from a clean, stable voltage source with adequate decoupling capacitors (e.g., 0.1uF ceramic capacitors) placed close to the device.
-
Yes, the CD74ACT14MG4 can be used in a 3.3V system, but the output voltage levels may not be as high as those in a 5V system, and the device may not be as fast.
