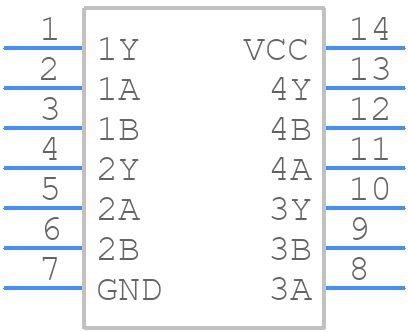

Part Symbol
-

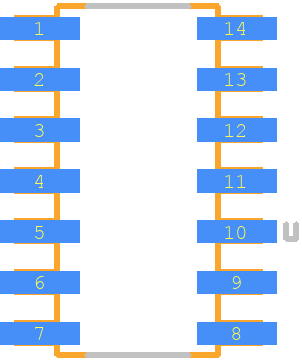

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD74ACT02M by Texas Instruments
Results Overview of CD74ACT02M by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Internet of Things (IoT)
Environmental Monitoring
Financial Technology (Fintech)
Smart Cities
Transportation and Logistics
Agriculture Technology
Telecommunications
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Education and Research
Consumer Electronics
Security and Surveillance
Audio and Video Systems
Computing and Data Storage
Healthcare
Entertainment and Gaming
CD74ACT02M Information
CD74ACT02M by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD74ACT02M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH3585
|
Newark | 74Act Cmos, Smd, 74Act02, Soic14, Logic Family/Base Number:74Act02, Logic Type:Nor, Output Current:24Ma, No. Of Inputs:2, Supply Voltage Min:4.5V, Supply Voltage Max:5.5V, Logic Case Style:Soic, No. Of Pins:14Pins, Logic Ic Rohs Compliant: Yes |Texas Instruments CD74ACT02M RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
296-4251-5-ND
|
DigiKey | IC GATE NOR 4CH 2-INP 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
484 In Stock |
|
$0.5930 / $1.1000 | Buy Now |
|
DISTI #
V99:2348_07241776
|
Arrow Electronics | NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 20 Weeks Date Code: 1740 | Americas - 839 |
|
$0.4331 / $0.4643 | Buy Now |
|
DISTI #
85954315
|
Verical | NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 474 Package Multiple: 1 Date Code: 1201 | Americas - 2150 |
|
$0.4909 / $0.7918 | Buy Now |
|
DISTI #
85954347
|
Verical | NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 474 Package Multiple: 1 Date Code: 1101 | Americas - 2092 |
|
$0.4909 / $0.7918 | Buy Now |
|
DISTI #
70728064
|
Verical | NOR Gate 4-Element 2-IN CMOS 14-Pin SOIC Tube RoHS: Compliant Min Qty: 13 Package Multiple: 1 Date Code: 1740 | Americas - 839 |
|
$0.5918 | Buy Now |
|
|
Bristol Electronics | 800 |
|
RFQ | ||
|
|
Bristol Electronics | 51 |
|
RFQ | ||
|
|
Quest Components | IC,LOGIC GATE,QUAD 2-INPUT NOR,ACT-CMOS,SOP,14PIN,PLASTIC | 368 |
|
$0.2700 / $0.9000 | Buy Now |
|
|
Quest Components | IC,LOGIC GATE,QUAD 2-INPUT NOR,ACT-CMOS,SOP,14PIN,PLASTIC | 148 |
|
$0.8693 / $1.7385 | Buy Now |
Part Details for CD74ACT02M
CD74ACT02M CAD Models
CD74ACT02M Part Data Attributes
|
|
CD74ACT02M
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD74ACT02M
Texas Instruments
4-ch, 2-input, 4.5-V to 5.5-V NOR gates with TTL-compatible CMOS inputs 14-SOIC -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-14 | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | ACT | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NOR GATE | |
| Max I(ol) | 0.024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.08 mA | |
| Prop. Delay@Nom-Sup | 12.2 ns | |
| Propagation Delay (tpd) | 12.2 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 5.5 V | |
| Supply Voltage-Min (Vsup) | 4.5 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.91 mm |
Alternate Parts for CD74ACT02M
This table gives cross-reference parts and alternative options found for CD74ACT02M. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD74ACT02M, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74ACT02SC | National Semiconductor Corporation | Check for Price | NOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14 | CD74ACT02M vs 74ACT02SC |
| CD74ACT02M96 | RCA | Check for Price | NOR Gate, CMOS, PDSO14, | CD74ACT02M vs CD74ACT02M96 |
| 74ACT02SC | Fairchild Semiconductor Corporation | Check for Price | NOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14, 0.150 INCH, MS-012, SOIC-14 | CD74ACT02M vs 74ACT02SC |
| CD74ACT02M | General Electric Solid State | Check for Price | Gate, | CD74ACT02M vs CD74ACT02M |
| 74ACT02D | Philips Semiconductors | Check for Price | NOR Gate, CMOS, PDSO14, | CD74ACT02M vs 74ACT02D |
| MC74ACT02DC | Motorola Semiconductor Products | Check for Price | NOR Gate, ACT Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOIC-14 | CD74ACT02M vs MC74ACT02DC |
CD74ACT02M Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the CD74ACT02M is typically around 100 MHz, but this can vary depending on the specific application and operating conditions.
-
To ensure proper operation, the CD74ACT02M should be powered with a stable voltage supply between 4.5V and 5.5V, with a maximum current draw of 20mA per gate.
-
The propagation delay for the CD74ACT02M is typically around 10-15ns, but this can vary depending on the specific operating conditions and load capacitance.
-
While the CD74ACT02M is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage levels may not be compatible with 3.3V logic, and the noise margin may be reduced.
-
To prevent damage to the device, it's recommended to tie the input pins to a valid logic level during power-up and power-down, and to ensure that the output pins are not driven during these transitions.
