Logic / Gates / CD54HC7266F3A
Datasheets
CD54HC7266F3A by:

Military 4-ch, 2-input, 2-V to 6-V 5.2 mA drive strength XNOR (exclusive NOR) gate 14-CDIP -55 to 125

Part Details for CD54HC7266F3A by Texas Instruments

Results Overview of CD54HC7266F3A by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Consumer Electronics Financial Technology (Fintech) Computing and Data Storage Telecommunications Communication and Networking

CD54HC7266F3A Information

CD54HC7266F3A by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Part Details for CD54HC7266F3A

CD54HC7266F3A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

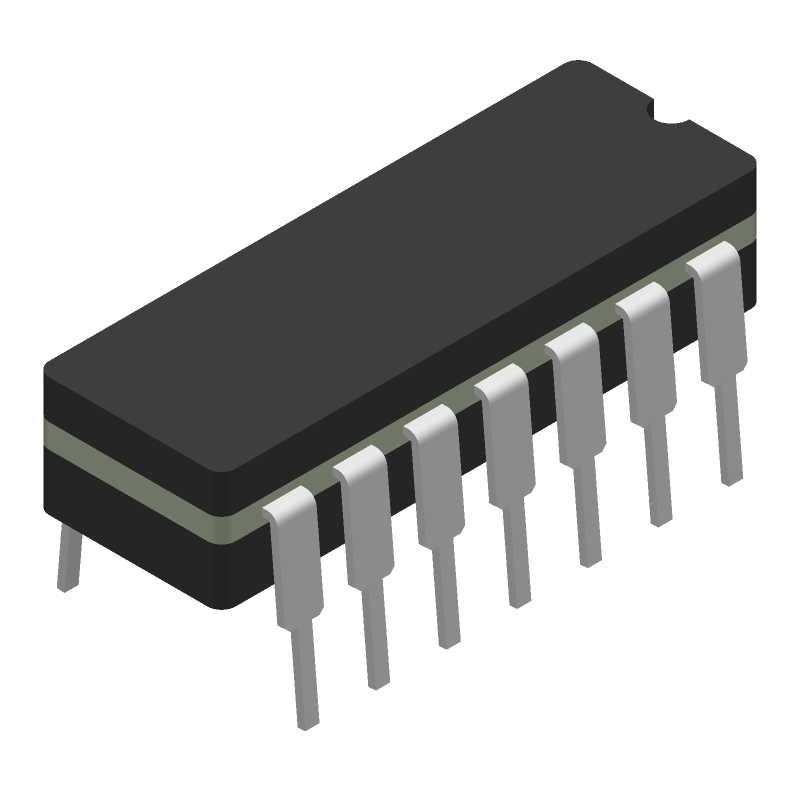

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CD54HC7266F3A Part Data Attributes

Parametric Data
CD54HC7266F3A Texas Instruments
Buy Now Datasheet
Compare Parts:
CD54HC7266F3A Texas Instruments Military 4-ch, 2-input, 2-V to 6-V 5.2 mA drive strength XNOR (exclusive NOR) gate 14-CDIP -55 to 125
Pbfree Code Yes
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code DIP
Package Description CERAMIC, DIP-14
Pin Count 14
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family HC/UH
JESD-30 Code R-CDIP-T14
JESD-609 Code e0
Length 19.56 mm
Load Capacitance (CL) 50 pF
Logic IC Type XNOR GATE
Max I(ol) 0.0052 A
Number of Functions 4
Number of Inputs 2
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Packing Method TUBE
Power Supply Current-Max (ICC) 0.04 mA
Prop. Delay@Nom-Sup 35 ns
Propagation Delay (tpd) 150 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 5.08 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 4.5 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm

Alternate Parts for CD54HC7266F3A

This table gives cross-reference parts and alternative options found for CD54HC7266F3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD54HC7266F3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
MC54HC7266JD Motorola Mobility LLC Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, CDIP14, CERAMIC, DIP-14 CD54HC7266F3A vs MC54HC7266JD
MC54HC7266J Motorola Semiconductor Products Check for Price XNOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14, 632-08 CD54HC7266F3A vs MC54HC7266J
CD54HC7266E Harris Semiconductor Check for Price XNOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14 CD54HC7266F3A vs CD54HC7266E
8404302CX Motorola Mobility LLC Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, CDIP14, CERAMIC, DIP-14 CD54HC7266F3A vs 8404302CX
8404302CX Motorola Semiconductor Products Check for Price XNOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14 CD54HC7266F3A vs 8404302CX
Part Number Manufacturer Composite Price Description Compare
MM74HC7266J Texas Instruments Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, CDIP14, DIP-14 CD54HC7266F3A vs MM74HC7266J
MM74HC7266N National Semiconductor Corporation Check for Price IC HC/UH SERIES, QUAD 2-INPUT XNOR GATE, PDIP14, DIP-14, Gate CD54HC7266F3A vs MM74HC7266N
SN74HC7266N Texas Instruments Check for Price Quadruple 2-Input Exclusive-NOR Gates 14-PDIP -40 to 85 CD54HC7266F3A vs SN74HC7266N
CD74HC7266EE4 Texas Instruments Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, PDIP14, ROHS COMPLIANT, PLASTIC, DIP-14 CD54HC7266F3A vs CD74HC7266EE4
74HC7266N NXP Semiconductors Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, PDIP14, DIP-14 CD54HC7266F3A vs 74HC7266N
M74HC7266F1 STMicroelectronics Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, CDIP14, FRIT SEALED, CERAMIC, DIP-14 CD54HC7266F3A vs M74HC7266F1
CD54HC7266F3A Harris Semiconductor Check for Price XNOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14 CD54HC7266F3A vs CD54HC7266F3A
SN74HC7266N-10 Texas Instruments Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, PDIP14 CD54HC7266F3A vs SN74HC7266N-10
8404302CX Harris Semiconductor Check for Price XNOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14 CD54HC7266F3A vs 8404302CX
HD74HC7266P Renesas Electronics Corporation Check for Price HC/UH SERIES, QUAD 2-INPUT XNOR GATE, PDIP14, 6.30 X 19.20 MM, 2.54 MM PITCH, PLASTIC, DIP-14 CD54HC7266F3A vs HD74HC7266P

CD54HC7266F3A Related Parts

CD54HC7266F3A Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for CD54HC7266F3A is 2V to 6V, with a typical voltage of 5V.

  • The output enable (OE) pin should be connected to GND to enable the outputs. When OE is high, the outputs are in a high-impedance state.

  • The maximum clock frequency supported by CD54HC7266F3A is 35 MHz.

  • Yes, CD54HC7266F3A can be used in a 3.3V system, but the output voltage will be limited to 3.3V. Ensure that the system can tolerate the reduced output voltage.

  • Ensure that the power supply (VCC) is applied before the clock signal (CLK) and that the power supply is stable before applying the clock signal.
