Part Details for CD54HC4002F3A by Texas Instruments

Results Overview of CD54HC4002F3A by Texas Instruments

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Education and Research Financial Technology (Fintech) Healthcare

CD54HC4002F3A Information

CD54HC4002F3A by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.

Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.

Price & Stock for CD54HC4002F3A

Part # Distributor Description Stock Price Buy
DISTI # 2156-CD54HC4002F3A-ND
DigiKey CD54HC4002 HIGH SPEED CMOS LOGIC Min Qty: 13 Lead time: 1 Weeks Container: Bulk MARKETPLACE PRODUCT 13
In Stock
  • 13 $11.7000
$11.7000 Buy Now
Rochester Electronics CD54HC4002 High Speed CMOS Logic Dual 4-Input NOR Gates RoHS: Not Compliant Status: Active Min Qty: 1 13
  • 25 $11.2800
  • 100 $10.7200
  • 500 $10.1500
  • 1,000 $9.5900
  • 10,000 $9.0200
$9.0200 / $11.2800 Buy Now

Part Details for CD54HC4002F3A

CD54HC4002F3A CAD Models

  • Part Symbol

    Part Symbol

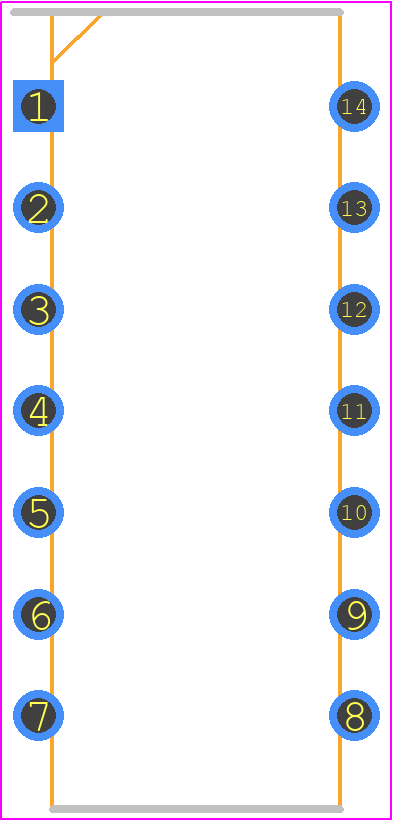

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

CD54HC4002F3A Part Data Attributes

Parametric Data
CD54HC4002F3A Texas Instruments
Buy Now Datasheet
Compare Parts:
CD54HC4002F3A Texas Instruments Military 2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength NOR gate 14-CDIP -55 to 125
Pbfree Code Yes
Rohs Code No
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code DIP
Package Description CERAMIC, DIP-14
Pin Count 14
Reach Compliance Code not_compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Family HC/UH
JESD-30 Code R-GDIP-T14
JESD-609 Code e0
Length 19.56 mm
Load Capacitance (CL) 50 pF
Logic IC Type NOR GATE
Max I(ol) 0.0052 A
Number of Functions 2
Number of Inputs 4
Number of Terminals 14
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Packing Method TUBE
Power Supply Current-Max (ICC) 0.04 mA
Prop. Delay@Nom-Sup 30 ns
Propagation Delay (tpd) 150 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 5.08 mm
Supply Voltage-Max (Vsup) 6 V
Supply Voltage-Min (Vsup) 2 V
Supply Voltage-Nom (Vsup) 4.5 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Width 7.62 mm

Alternate Parts for CD54HC4002F3A

This table gives cross-reference parts and alternative options found for CD54HC4002F3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD54HC4002F3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
74HC4002N NXP Semiconductors Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDIP14, SOT-27-1, DIP-14 CD54HC4002F3A vs 74HC4002N
933668840652 NXP Semiconductors Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDIP14, SOT-27-1, DIP-14 CD54HC4002F3A vs 933668840652
8404401CX National Semiconductor Corporation Check for Price NOR Gate, HC/UH Series, 2-Func, 4-Input, CMOS, CDIP14 CD54HC4002F3A vs 8404401CX
MC54HC4002JD Motorola Mobility LLC Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, CDIP14, CERAMIC, DIP-14 CD54HC4002F3A vs MC54HC4002JD
8404401CX Motorola Mobility LLC Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, CDIP14, CERAMIC, DIP-14 CD54HC4002F3A vs 8404401CX
SN74HC4002N-10 Texas Instruments Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, PDIP14 CD54HC4002F3A vs SN74HC4002N-10
MM54HC4002J Texas Instruments Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, CDIP14, CERAMIC, DIP-14 CD54HC4002F3A vs MM54HC4002J
SN74HC4002N Texas Instruments Check for Price Dual 4-Input Positive-NOR Gates 14-PDIP -40 to 85 CD54HC4002F3A vs SN74HC4002N
SN54HC4002J Texas Instruments Check for Price Military 2-ch, 4-input, 2-V to 6-V 5.2 mA drive strength NOR gate 14-CDIP -55 to 125 CD54HC4002F3A vs SN54HC4002J
M74HC4002F1 STMicroelectronics Check for Price HC/UH SERIES, DUAL 4-INPUT NOR GATE, CDIP14, FRIT SEALED, CERAMIC, DIP-14 CD54HC4002F3A vs M74HC4002F1
Part Number Manufacturer Composite Price Description Compare
SNJ54HC02J Texas Instruments Check for Price Military 4-ch, 2-input, 2-V to 6-V 5.2 mA drive strength NOR gate 14-CDIP -55 to 125 CD54HC4002F3A vs SNJ54HC02J
74F27PC Fairchild Semiconductor Corporation Check for Price NOR Gate, F/FAST Series, 3-Func, 3-Input, TTL, PDIP14, 0.300 INCH, PLASTIC, MS-001, DIP-14 CD54HC4002F3A vs 74F27PC
5962-8404101CX Intersil Corporation Check for Price HC/UH SERIES, QUAD 2-INPUT NOR GATE, CDIP14, FRIT SEALED, CERDIP-14 CD54HC4002F3A vs 5962-8404101CX
SNV54HC02J Texas Instruments Check for Price HC/UH SERIES, QUAD 2-INPUT NOR GATE, CDIP14, CERAMIC, DIP-14 CD54HC4002F3A vs SNV54HC02J
SN74HC02N Rochester Electronics LLC Check for Price NOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14, ROHS COMPLIANT, PLASTIC, DIP-14 CD54HC4002F3A vs SN74HC02N
CD54HC27F3A Harris Semiconductor Check for Price NOR Gate, HC/UH Series, 3-Func, 3-Input, CMOS, CDIP14 CD54HC4002F3A vs CD54HC27F3A
CD74HC4002EE4 Texas Instruments Check for Price High Speed CMOS Logic Dual 4-Input NOR Gates 14-PDIP -55 to 125 CD54HC4002F3A vs CD74HC4002EE4
DM54LS02J/883 Texas Instruments Check for Price LS SERIES, QUAD 2-INPUT NOR GATE, CDIP14 CD54HC4002F3A vs DM54LS02J/883
74F02N YAGEO Corporation Check for Price NOR Gate, F/FAST Series, 4-Func, 2-Input, TTL, PDIP14 CD54HC4002F3A vs 74F02N
8404201CA Texas Instruments Check for Price Military 3-ch, 3-input, 2-V to 6-V 5.2 mA drive strength NOR gate 14-CDIP -55 to 125 CD54HC4002F3A vs 8404201CA

CD54HC4002F3A Related Parts

CD54HC4002F3A Frequently Asked Questions (FAQ)

  • The recommended operating voltage range for CD54HC4002F3A is 2V to 6V, with a typical voltage of 5V.

  • The input voltage threshold for the CD54HC4002F3A is typically around 1.5V to 3.5V, depending on the supply voltage. Ensure that your input signals meet this threshold to ensure proper logic operation.

  • The CD54HC4002F3A can support clock frequencies up to 25 MHz, but this may vary depending on the specific application and operating conditions.

  • To ensure proper power sequencing, apply power to the VCC pin before applying any input signals. Also, ensure that the power supply is stable and within the recommended operating range before applying clock or input signals.

  • The typical propagation delay for the CD54HC4002F3A is around 15ns to 30ns, depending on the operating conditions and supply voltage.
