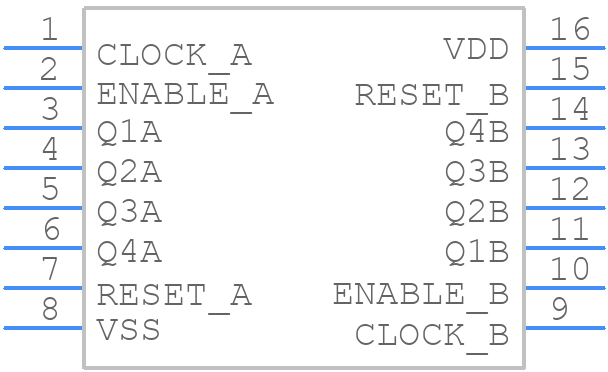

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4520BM96 by Texas Instruments
Results Overview of CD4520BM96 by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD4520BM96 Information
CD4520BM96 by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4520BM96 | Texas Instruments | CMOS Dual Binary Up-Counter 16-SOIC -55 to 125 |
Price & Stock for CD4520BM96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-41222-1-ND
|
DigiKey | IC BINARY COUNTR DL 4BIT 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
3901 In Stock |
|
$0.1542 / $0.4000 | Buy Now |
|
DISTI #
595-CD4520BM96
|
Mouser Electronics | Counter ICs CMOS Dual Binary Up- Counter A 595-CD4520BM RoHS: Compliant | 2472 |
|
$0.1530 / $0.4000 | Buy Now |
|
DISTI #
V72:2272_07240936
|
Arrow Electronics | Counter Dual 4-Bit Binary UP 16-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2318 Container: Cut Strips | Americas - 6 |
|
$0.1500 | Buy Now |
|
|
Bristol Electronics | 1496 |
|
RFQ | ||
|
|
Rochester Electronics | CD4520B CMOS Dual Binary Up-Counter RoHS: Compliant Status: Active Min Qty: 1 | 200 |
|
$0.1228 / $0.1981 | Buy Now |
|
DISTI #
CD4520BM96
|
TME | IC: digital, binary up counter, Ch: 2, CMOS, SMD, SO16, CD4000 Min Qty: 1 | 997 |
|
$0.2470 / $0.7700 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 2372 |
|
RFQ | |
|
|
Cytech Systems Limited | IC BINARY COUNTR DL 4BIT 16SOIC | 2500 |
|
RFQ | |
|
|
New Advantage Corporation | IC-4520 CMOS DUAL SYNCHRO.BINARY UP COU SOIC16 RoHS: Compliant Min Qty: 1 Package Multiple: 100 | 1425 |
|
$0.4400 / $0.4767 | Buy Now |
|
|
Vyrian | Logic ICs | 3358 |
|
RFQ |
Part Details for CD4520BM96
CD4520BM96 CAD Models
CD4520BM96 Part Data Attributes
|
|
CD4520BM96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4520BM96
Texas Instruments
CMOS Dual Binary Up-Counter 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | GATED CLOCK; SCHMITT TRIGGER ON CLOCK INPUT | |
| Count Direction | UP | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Load/Preset Input | NO | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 1500000 Hz | |
| Max I(ol) | 0.0015 A | |
| Mode of Operation | SYNCHRONOUS | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 4 | |
| Number of Functions | 2 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.03 mA | |
| Prop. Delay@Nom-Sup | 230 ns | |
| Propagation Delay (tpd) | 560 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 4 MHz |
