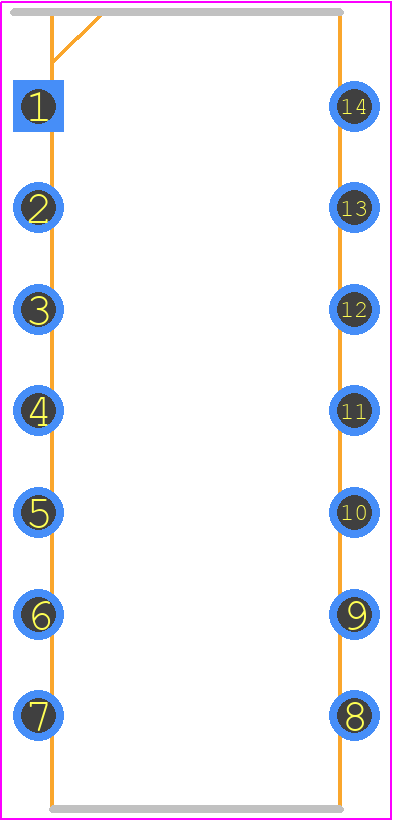

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4071BF3A by Texas Instruments
Results Overview of CD4071BF3A by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Industrial Automation
Financial Technology (Fintech)
Healthcare
Electronic Manufacturing
CD4071BF3A Information
CD4071BF3A by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Part Details for CD4071BF3A
CD4071BF3A CAD Models
CD4071BF3A Part Data Attributes
|
|
CD4071BF3A
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4071BF3A
Texas Instruments
Military, 4-ch 2-input 3-V to 18-V OR gate 14-CDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Pin Count | 14 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-GDIP-T14 | |
| JESD-609 Code | e0 | |
| Length | 19.56 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | OR GATE | |
| Max I(ol) | 0.0015 A | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Characteristics | OPEN-COLLECTOR | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 0.03 mA | |
| Prop. Delay@Nom-Sup | 250 ns | |
| Propagation Delay (tpd) | 250 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Screening Level | 38535Q/M;38534H;883B | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 6.67 mm |
Alternate Parts for CD4071BF3A
This table gives cross-reference parts and alternative options found for CD4071BF3A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4071BF3A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD4071BD3 | Harris Semiconductor | Check for Price | OR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, CDIP14 | CD4071BF3A vs CD4071BD3 |
| CD4071BF/3 | RCA | Check for Price | OR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, CDIP14, CERAMIC, DIP-14 | CD4071BF3A vs CD4071BF/3 |
CD4071BF3A Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CD4071BF3A is 3V to 15V.
-
To ensure the CD4071BF3A is properly powered, connect the VCC pin to a stable voltage source, and the GND pin to a reliable ground connection. Decouple the power supply with a 0.1uF capacitor to reduce noise.
-
The maximum frequency of operation for the CD4071BF3A is typically around 10MHz, but this can vary depending on the specific application and operating conditions.
-
The input impedance of the CD4071BF3A is typically high, so it can be driven by a wide range of sources. The output impedance is relatively low, so it can drive a wide range of loads. However, it's still important to consider the impedance of the surrounding circuitry to ensure proper operation.
-
The propagation delay of the CD4071BF3A is typically around 10-20ns, but this can vary depending on the specific application and operating conditions.
