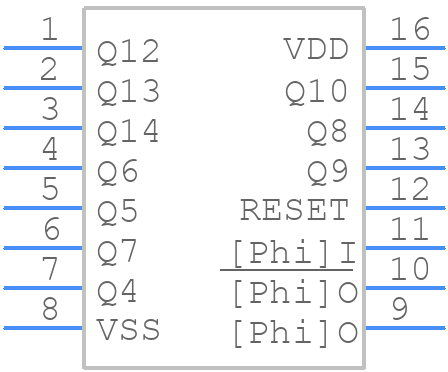

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4060BMG4 by Texas Instruments
Results Overview of CD4060BMG4 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Aerospace and Defense
Healthcare
Agriculture Technology
Automotive
CD4060BMG4 Information
CD4060BMG4 by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4060BMG4 | Texas Instruments | CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator 16-SOIC -55 to 125 |
Price & Stock for CD4060BMG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
595-CD4060BMG4
|
Mouser Electronics | Counter ICs CMOS 14-St Ripple- C arry Binary ALT 595-CD4060BM RoHS: Compliant | 3178 |
|
$0.4400 / $1.6700 | Buy Now |
|
|
Quest Components | IC,COUNTER,UP,14-BIT BINARY,CMOS,SOP,16PIN,PLASTIC, LEAD FREE | 155 |
|
$0.4599 / $0.9855 | Buy Now |
Part Details for CD4060BMG4
CD4060BMG4 CAD Models
CD4060BMG4 Part Data Attributes
|
|
CD4060BMG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4060BMG4
Texas Instruments
CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUTS FROM 10 STAGES AVAILABLE; BUILT-IN OSCILLATOR | |
| Count Direction | UP | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Load/Preset Input | NO | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 3500000 Hz | |
| Max I(ol) | 0.0015 A | |
| Mode of Operation | ASYNCHRONOUS | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.03 mA | |
| Prop. Delay@Nom-Sup | 300 ns | |
| Propagation Delay (tpd) | 740 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | NEGATIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 12 MHz |
Alternate Parts for CD4060BMG4
This table gives cross-reference parts and alternative options found for CD4060BMG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4060BMG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD4060BCMX | Rochester Electronics LLC | Check for Price | Binary Counter, 4000/14000/40000 Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, PDSO16, 0.150 INCH, MS-012, SOIC-16 | CD4060BMG4 vs CD4060BCMX |
| CD4060BME4 | Rochester Electronics LLC | Check for Price | Binary Counter, 4000/14000/40000 Series, Asynchronous, Negative Edge Triggered, 14-Bit, Up Direction, CMOS, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD4060BMG4 vs CD4060BME4 |
| CD4060BM | Texas Instruments | $0.3201 | CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator 16-SOIC -55 to 125 | CD4060BMG4 vs CD4060BM |
| CD4060BMTE4 | Texas Instruments | Check for Price | CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator 16-SOIC -55 to 125 | CD4060BMG4 vs CD4060BMTE4 |
| CD4060BM96E4 | Texas Instruments | Check for Price | CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator 16-SOIC -55 to 125 | CD4060BMG4 vs CD4060BM96E4 |
| CD4060BM96G4 | Texas Instruments | Check for Price | CMOS 14-Stage Ripple-Carry Binary Counter/Divider and Oscillator 16-SOIC -55 to 125 | CD4060BMG4 vs CD4060BM96G4 |
CD4060BMG4 Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the CD4060BMG4 is 3V to 18V.
-
To ensure the oscillator starts reliably, a 1-10uF capacitor should be connected between the oscillator pins (pins 11 and 12) and a 1kΩ to 10kΩ resistor should be connected between the oscillator pins and VCC.
-
The maximum clock frequency that the CD4060BMG4 can handle is approximately 1MHz.
-
The CD4060BMG4 counter can be reset by applying a low signal to the reset pin (pin 12) for at least 10ns.
-
The Q15 output pin (pin 3) is an output that goes high when the counter reaches its maximum count (15). It can be used to cascade multiple CD4060BMG4 devices or to trigger external circuits.
