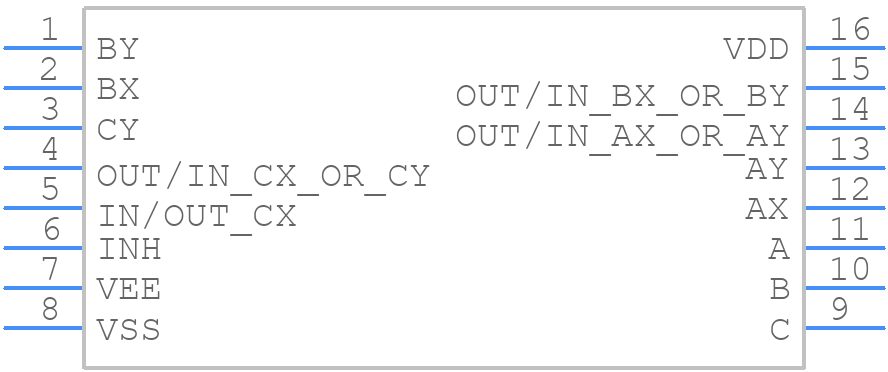

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4053BM96 by Texas Instruments
Results Overview of CD4053BM96 by Texas Instruments
- Distributor Offerings: (16 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Computing and Data Storage
Aerospace and Defense
Communication and Networking
Automotive
CD4053BM96 Information
CD4053BM96 by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4053BM96 | Texas Instruments | CMOS triple 2-channel analog multiplexer & demultiplexer with logic-level conversion 16-SOIC -55 to 125 | |
| CD4053BM96G3 | Texas Instruments | CMOS triple 2-channel analog multiplexer & demultiplexer with logic-level conversion 16-SOIC -55 to 125 | |
| CD4053BM96G4 | Texas Instruments | CMOS triple 2-channel analog multiplexer & demultiplexer with logic-level conversion 16-SOIC -55 to 125 |
Price & Stock for CD4053BM96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH3569
|
Newark | Analogue Mux/Demux, Triple, 2:1, Soic-16, Multiplexer Configuration:2:1, No. Of Circuits:3Circuits, On State Resistance Max:240Ohm, Supply Voltage Range:3V To 20V, Analogue Multiplexer Case:Soic, No. Of Pins:16Pins, Operating Rohs Compliant: Yes |Texas Instruments CD4053BM96 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 503 |
|
$0.6290 / $0.7450 | Buy Now |
|
DISTI #
296-14274-1-ND
|
DigiKey | IC SWITCH SPDT X 3 240OHM 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6260 In Stock |
|
$0.1708 / $0.4300 | Buy Now |
|
DISTI #
2156-CD4053BM96-ND
|
DigiKey | IC SWITCH SPDT X 3 240OHM 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
5843 In Stock |
|
$0.2000 | Buy Now |
|
DISTI #
595-CD4053BM96
|
Mouser Electronics | Multiplexer Switch ICs Triple 2-Ch Analog A 595-CD4053BM RoHS: Compliant | 7299 |
|
$0.1640 / $0.4300 | Buy Now |
|
DISTI #
85975034
|
Verical | Analog Multiplexer Triple 2:1 16-Pin SOIC T/R RoHS: Compliant Min Qty: 1541 Package Multiple: 1 Date Code: 0601 | Americas - 4747 |
|
$0.2435 | Buy Now |
|
|
Bristol Electronics | 1028 |
|
RFQ | ||
|
|
Quest Components | TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16 | 15443 |
|
$0.3330 / $1.1100 | Buy Now |
|
|
Quest Components | TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16 | 505 |
|
$0.2673 / $0.5345 | Buy Now |
|
|
Quest Components | TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16 | 160 |
|
$0.3207 / $0.5345 | Buy Now |
|
|
Quest Components | TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16 | 28 |
|
$0.2673 / $0.3207 | Buy Now |
Part Details for CD4053BM96
CD4053BM96 CAD Models
CD4053BM96 Part Data Attributes
|
|
CD4053BM96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4053BM96
Texas Instruments
20-V, 2:1 (SPDT), 3-channel analog multiplexer with logic-level conversion 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER | |
| Bandwidth-Nom | 30 MHz | |
| Input Voltage-Max | 20.5 V | |
| Input Voltage-Min | -0.5 V | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Normal Position | NC | |
| Number of Channels | 3 | |
| Number of Functions | 3 | |
| Number of Terminals | 16 | |
| Off-state Isolation-Nom | 40 dB | |
| On-state Resistance Match-Nom | 15 Ω | |
| On-state Resistance-Max (Ron) | 1050 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output | COMMON OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 20 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Switch-off Time-Max | 720 ns | |
| Switch-on Time-Max | 720 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD4053BM96
This table gives cross-reference parts and alternative options found for CD4053BM96. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4053BM96, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HCF4053BM1 | STMicroelectronics | Check for Price | TRIPLE 2-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, SO-16 | CD4053BM96 vs HCF4053BM1 |
| CD4053BM | Texas Instruments | $0.3025 | 20-V, 2:1 (SPDT), 3-channel analog multiplexer with logic-level conversion 16-SOIC -55 to 125 | CD4053BM96 vs CD4053BM |
| CD4053BM | National Semiconductor Corporation | Check for Price | Single-Ended Multiplexer, 3 Func, 2 Channel, PDIP16 | CD4053BM96 vs CD4053BM |
| CD4053BM96E4 | Texas Instruments | Check for Price | 20-V, 2:1 (SPDT), 3-channel analog multiplexer with logic-level conversion 16-SOIC -55 to 125 | CD4053BM96 vs CD4053BM96E4 |
