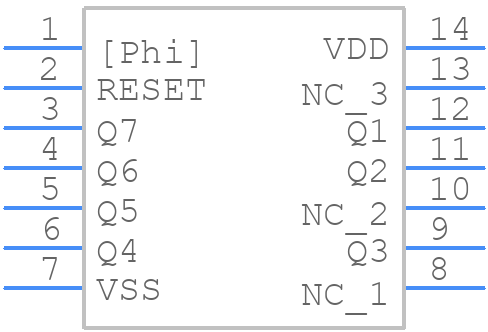

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4024BE by Texas Instruments
Results Overview of CD4024BE by Texas Instruments
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (7 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Aerospace and Defense
Automotive
CD4024BE Information
CD4024BE by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4024BE | Texas Instruments | CMOS 7-Stage Ripple-Carry Binary Counter/Divider 14-PDIP -55 to 125 | |
| CD4024BEE4 | Texas Instruments | CMOS 7-Stage Ripple-Carry Binary Counter/Divider 14-PDIP -55 to 125 |
Price & Stock for CD4024BE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
26AJ5402
|
Newark | Ic, Counter/Multiplier/Divider, Logic Family/Base Number:Cd4024, Counter Type:Ripple Carry Binary/Divider, Clock Frequency:24Mhz, Count Maximum:7, Logic Case Style:Dip, No. Of Pins:14Pins, Supply Voltage Min:3V, Supply Voltage Rohs Compliant: Yes |Texas Instruments CD4024BE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$0.8760 / $1.2300 | Buy Now |
|
DISTI #
296-2042-ND
|
DigiKey | IC BINARY COUNTER 7-BIT 14DIP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
3861 In Stock |
|
$0.3491 / $0.7700 | Buy Now |
|
DISTI #
595-CD4024BE
|
Mouser Electronics | Counter ICs 7-Bit Ripple-Carry RoHS: Compliant | 9202 |
|
$0.3250 / $0.7700 | Buy Now |
|
DISTI #
V99:2348_07236078
|
Arrow Electronics | Counter/Divider Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2317 | Americas - 750 |
|
$0.3044 / $0.4986 | Buy Now |
|
DISTI #
86310936
|
Verical | Counter/Divider Single 7-Bit Binary UP 14-Pin PDIP Tube RoHS: Compliant Min Qty: 19 Package Multiple: 1 Date Code: 2317 | Americas - 750 |
|
$0.3044 / $0.3148 | Buy Now |
|
|
Bristol Electronics | 300 |
|
RFQ | ||
|
|
Bristol Electronics | 161 |
|
RFQ | ||
|
|
Quest Components | IC,COUNTER,UP,7-BIT BINARY,CMOS,DIP,14PIN,PLASTIC | 160 |
|
$0.6320 / $1.2640 | Buy Now |
|
|
Quest Components | IC,COUNTER,UP,7-BIT BINARY,CMOS,DIP,14PIN,PLASTIC | 138 |
|
$0.2678 / $0.5355 | Buy Now |
|
|
Quest Components | IC,COUNTER,UP,7-BIT BINARY,CMOS,DIP,14PIN,PLASTIC | 14 |
|
$0.8800 / $1.1000 | Buy Now |
Part Details for CD4024BE
CD4024BE CAD Models
CD4024BE Part Data Attributes
|
|
CD4024BE
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4024BE
Texas Instruments
CMOS 7-Stage Ripple-Carry Binary Counter/Divider 14-PDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUTS FROM 12 STAGES AVAILABLE | |
| Count Direction | UP | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDIP-T14 | |
| JESD-609 Code | e4 | |
| Length | 19.305 mm | |
| Load Capacitance (CL) | 50 pF | |
| Load/Preset Input | NO | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 3500000 Hz | |
| Max I(ol) | 0.0015 A | |
| Mode of Operation | ASYNCHRONOUS | |
| Number of Bits | 7 | |
| Number of Functions | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP14,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power Supply Current-Max (ICC) | 0.03 mA | |
| Prop. Delay@Nom-Sup | 160 ns | |
| Propagation Delay (tpd) | 360 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Trigger Type | NEGATIVE EDGE | |
| Width | 7.62 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for CD4024BE
This table gives cross-reference parts and alternative options found for CD4024BE. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4024BE, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC14024BCLG | Motorola Semiconductor Products | Check for Price | Binary Counter, 4000/14000/40000 Series, Asynchronous, Negative Edge Triggered, 7-Bit, Up Direction, CMOS, CDIP14, LEAD FREE, CERAMIC, DIP-14 | CD4024BE vs MC14024BCLG |
| MC14024BALDS | Motorola Semiconductor Products | Check for Price | Binary Counter, 4000/14000/40000 Series, Asynchronous, Negative Edge Triggered, 7-Bit, Up Direction, CMOS, CDIP14, 632-08 | CD4024BE vs MC14024BALDS |
| M38510/05605BCA | Intersil Corporation | Check for Price | 4000/14000/40000 SERIES, ASYN NEGATIVE EDGE TRIGGERED 7-BIT UP BINARY COUNTER, CDIP14 | CD4024BE vs M38510/05605BCA |
| M38510/05655BCA | Intersil Corporation | Check for Price | 4000/14000/40000 SERIES, ASYN NEGATIVE EDGE TRIGGERED 7-BIT UP BINARY COUNTER, CDIP14, CERAMIC, DIP-14 | CD4024BE vs M38510/05655BCA |
| MC14024BCL | Motorola Semiconductor Products | Check for Price | Binary Counter, 4000/14000/40000 Series, Asynchronous, Negative Edge Triggered, 7-Bit, Up Direction, CMOS, CDIP14, CERAMIC, DIP-14 | CD4024BE vs MC14024BCL |
| HEF4024BDB | NXP Semiconductors | Check for Price | IC 4000/14000/40000 SERIES, ASYN NEGATIVE EDGE TRIGGERED 7-BIT UP BINARY COUNTER, CDIP14, Counter | CD4024BE vs HEF4024BDB |
| TC4024BP | Toshiba America Electronic Components | Check for Price | IC 4000/14000/40000 SERIES, ASYN NEGATIVE EDGE TRIGGERED 7-BIT UP BINARY COUNTER, PDIP14, 0.300 INCH, 2.54 MM PITCH, LEAD FREE, PLASTIC, DIP-14, Counter | CD4024BE vs TC4024BP |
CD4024BE Frequently Asked Questions (FAQ)
-
The CD4024BE can handle clock frequencies up to 10 MHz.
-
The CD4024BE has an asynchronous reset input (R) that can be used to reset the counter. When the reset input is low, the counter is reset to zero.
-
The CD4024BE is a 7-stage binary counter, which means it can count up to 2^7 - 1 = 127.
-
Yes, the CD4024BE can be used as a frequency divider. By connecting the Q7 output to the clock input, the CD4024BE can divide the input clock frequency by 128.
-
The CD4024BE has a typical power consumption of 10 mW at 5V and 1 MHz clock frequency.
