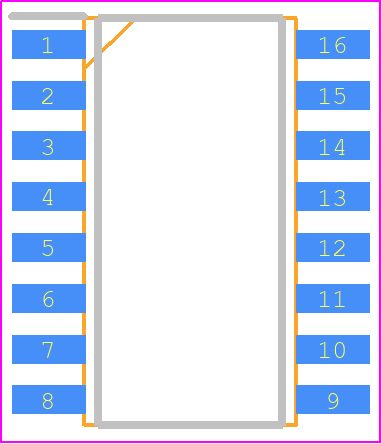

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4020BNSRG4 by Texas Instruments
Results Overview of CD4020BNSRG4 by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Space Technology
Computing and Data Storage
Aerospace and Defense
Automotive
CD4020BNSRG4 Information
CD4020BNSRG4 by Texas Instruments is a Counter.
Counters are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for CD4020BNSRG4
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Logic ICs | 755 |
|
RFQ |
Part Details for CD4020BNSRG4
CD4020BNSRG4 CAD Models
CD4020BNSRG4 Part Data Attributes
|
|
CD4020BNSRG4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4020BNSRG4
Texas Instruments
CMOS 14-Stage Ripple-Carry Binary Counter/Divider 16-SO -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOP, SOP16,.3 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUTS FROM 12 STAGES AVAILABLE | |
| Count Direction | UP | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 10.2 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | BINARY COUNTER | |
| Max Frequency@Nom-Sup | 3500000 Hz | |
| Max I(ol) | 0.0015 A | |
| Mode of Operation | ASYNCHRONOUS | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.03 mA | |
| Prop. Delay@Nom-Sup | 160 ns | |
| Propagation Delay (tpd) | 360 ns | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | NEGATIVE EDGE | |
| Width | 5.3 mm | |
| fmax-Min | 24 MHz |
Alternate Parts for CD4020BNSRG4
This table gives cross-reference parts and alternative options found for CD4020BNSRG4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4020BNSRG4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD4020BNSR | Texas Instruments | $0.1791 | CMOS 14-Stage Ripple-Carry Binary Counter/Divider 16-SOP -55 to 125 | CD4020BNSRG4 vs CD4020BNSR |
