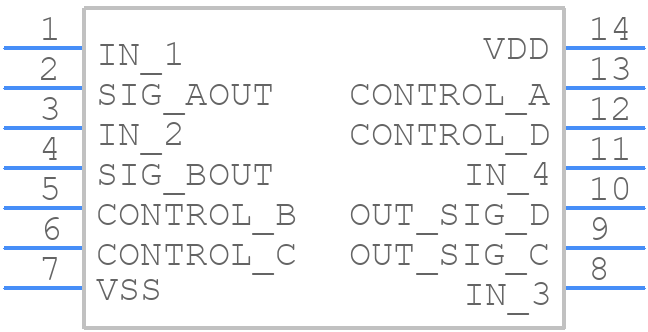

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4016BM96 by Texas Instruments
Results Overview of CD4016BM96 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Communication and Networking
Automotive
CD4016BM96 Information
CD4016BM96 by Texas Instruments is a Multiplexer or Switch.
Multiplexers or Switches are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4016BM96 | Texas Instruments | CMOS Quad Bilateral Switch 14-SOIC -55 to 125 |
Price & Stock for CD4016BM96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
29AH3559
|
Newark | Analogue Switch, Quad, Spst, Soic-14, No. Of Channels:4Channels, Analogue Switch Type:Spst, On State Resistance Max:400Ohm, Supply Voltage Range:3V To 18V, Analogue Switch Case:Soic, No. Of Pins:14Pins, Operating Temperature Rohs Compliant: Yes |Texas Instruments CD4016BM96 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1329 |
|
$0.4530 / $0.5860 | Buy Now |
|
DISTI #
296-31489-1-ND
|
DigiKey | IC BILATERAL SWITCH 1X1:1 14SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
4071 In Stock |
|
$0.1945 / $0.4800 | Buy Now |
|
DISTI #
595-CD4016BM96
|
Mouser Electronics | Analog Switch ICs CMOS Quad Bilateral Switch A 595-CD4016BM RoHS: Compliant | 2334 |
|
$0.1880 / $0.4500 | Buy Now |
|
DISTI #
V72:2272_07236469
|
Arrow Electronics | Analog Switch Quad SPST 14-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2031 Container: Cut Strips | Americas - 1294 |
|
$0.1807 / $0.4406 | Buy Now |
|
DISTI #
76884270
|
Verical | Analog Switch Quad SPST 14-Pin SOIC T/R RoHS: Compliant Min Qty: 35 Package Multiple: 1 Date Code: 2031 | Americas - 1294 |
|
$0.1807 / $0.2783 | Buy Now |
|
|
Quest Components | 61 |
|
$0.4375 / $0.8750 | Buy Now | |
|
|
NexGen Digital | 73 |
|
RFQ |
Part Details for CD4016BM96
CD4016BM96 CAD Models
CD4016BM96 Part Data Attributes
|
|
CD4016BM96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4016BM96
Texas Instruments
100-pA on-state leakage current, 20-V, 1:1 (SPST), 4-channel analog switch 14-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | SPST | |
| Bandwidth-Nom | 40 MHz | |
| Input Voltage-Max | 0.9 V | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 8.65 mm | |
| Moisture Sensitivity Level | 1 | |
| Normal Position | NO | |
| Number of Channels | 4 | |
| Number of Functions | 4 | |
| Number of Terminals | 14 | |
| Off-state Isolation-Nom | 50 dB | |
| On-state Resistance Match-Nom | 10 Ω | |
| On-state Resistance-Max (Ron) | 2000 Ω | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output | SEPARATE OUTPUT | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.005 mA | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 10 V | |
| Surface Mount | YES | |
| Switch-on Time-Max | 40 ns | |
| Switching | BREAK-BEFORE-MAKE | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for CD4016BM96
This table gives cross-reference parts and alternative options found for CD4016BM96. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4016BM96, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD4016BM96E4 | Texas Instruments | Check for Price | QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, PLASTIC, SO-14 | CD4016BM96 vs CD4016BM96E4 |
| CD4016BMT | Texas Instruments | Check for Price | 100-pA on-state leakage current, 20-V, 1:1 (SPST), 4-channel analog switch 14-SOIC -55 to 125 | CD4016BM96 vs CD4016BMT |
| CD4016BMG4 | Texas Instruments | Check for Price | 100-pA on-state leakage current, 20-V, 1:1 (SPST), 4-channel analog switch 14-SOIC -55 to 125 | CD4016BM96 vs CD4016BMG4 |
| CD4016BMTE4 | Texas Instruments | Check for Price | CMOS Quad Bilateral Switch 14-SOIC -55 to 125 | CD4016BM96 vs CD4016BMTE4 |
CD4016BM96 Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the CD4016BM96 is typically around 10 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure reliable switching in the CD4016BM96, it's essential to provide a clean and stable power supply, use proper PCB layout and decoupling, and ensure that the input signals are within the recommended voltage and current limits.
-
The maximum power dissipation for the CD4016BM96 is typically around 500 mW, but it can vary depending on the specific application and operating conditions. It's essential to ensure that the device is operated within the recommended power dissipation limits to prevent overheating and damage.
-
The CD4016BM96 is rated for operation up to 125°C, but it's essential to ensure that the device is properly heat-sinked and that the operating conditions are within the recommended specifications to prevent overheating and damage.
-
To handle ESD protection for the CD4016BM96, it's essential to follow proper ESD handling procedures, use ESD-protective packaging and storage, and ensure that the device is properly grounded during handling and assembly.
