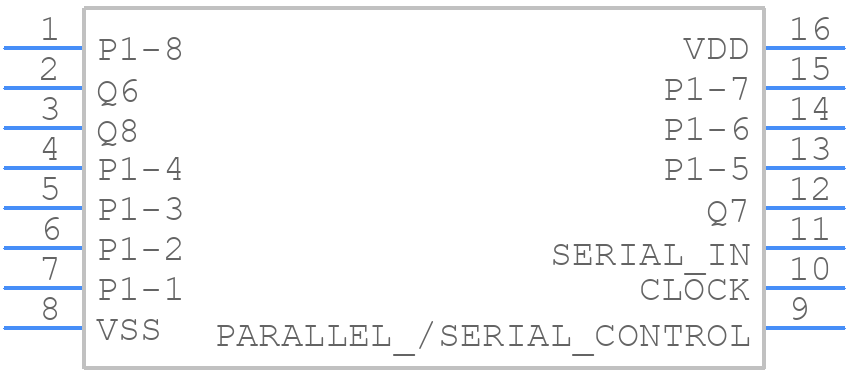

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4014BM96 by Texas Instruments
Results Overview of CD4014BM96 by Texas Instruments
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD4014BM96 Information
CD4014BM96 by Texas Instruments is a Shift Register.
Shift Registers are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD4014BM96 | Texas Instruments | CMOS 8-Stage Static Shift Register 16-SOIC -55 to 125 |
Price & Stock for CD4014BM96
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-31488-1-ND
|
DigiKey | IC STATIC SHFT REG 8STG 16SOIC Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
2464 In Stock |
|
$0.1866 / $0.4600 | Buy Now |
|
DISTI #
595-CD4014BM96
|
Mouser Electronics | Counter Shift Registers CMOS 8-Stage Static Shift Register A 595-CD4014BM RoHS: Compliant | 4593 |
|
$0.1830 / $0.4600 | Buy Now |
|
DISTI #
CD4014BM96
|
TME | IC: digital, static shift register, CMOS, SMD, SO16, CD4000 Min Qty: 1 | 634 |
|
$0.2940 / $0.7690 | Buy Now |
|
|
Vyrian | Logic ICs | 14536 |
|
RFQ |
Part Details for CD4014BM96
CD4014BM96 CAD Models
CD4014BM96 Part Data Attributes
|
|
CD4014BM96
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4014BM96
Texas Instruments
CMOS 8-Stage Static Shift Register 16-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AC, SOIC-16 | |
| Pin Count | 16 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUTS ALSO AVAILABLE AT 6TH AND 7TH STAGE OF THE SHIFT REGISTER; ALSO OPERATES AS SISO | |
| Count Direction | RIGHT | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | PARALLEL IN SERIAL OUT | |
| Max Frequency@Nom-Sup | 3000000 Hz | |
| Max I(ol) | 0.004200000000000001 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 8 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP16,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 3 mA | |
| Prop. Delay@Nom-Sup | 160 ns | |
| Propagation Delay (tpd) | 320 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | POSITIVE EDGE | |
| Width | 3.9 mm | |
| fmax-Min | 8.5 MHz |
Alternate Parts for CD4014BM96
This table gives cross-reference parts and alternative options found for CD4014BM96. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4014BM96, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HEF4014BT,653 | NXP Semiconductors | Check for Price | HEF4014B - 8-bit static shift register SOP 16-Pin | CD4014BM96 vs HEF4014BT,653 |
| HEF4014BT,653 | Nexperia | Check for Price | HEF4014B - 8-bit static shift register@en-us SOP 16-Pin | CD4014BM96 vs HEF4014BT,653 |
| MC14014BD | Motorola Mobility LLC | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, PLASTIC, SOIC-16 | CD4014BM96 vs MC14014BD |
| CD4014BM96G4 | Texas Instruments | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD4014BM96 vs CD4014BM96G4 |
| CD4014BMTG4 | Texas Instruments | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, GREEN, PLASTIC, MS-012AC, SOIC-16 | CD4014BM96 vs CD4014BMTG4 |
| CD4014BMD/883 | National Semiconductor Corporation | Check for Price | IC,SHIFT REGISTER,CMOS,DIP,16PIN,CERAMIC | CD4014BM96 vs CD4014BMD/883 |
| CD4014BMT | Texas Instruments | Check for Price | CMOS 8-Stage Static Shift Register 16-SOIC -55 to 125 | CD4014BM96 vs CD4014BMT |
| CD4014BMD | National Semiconductor Corporation | Check for Price | IC,SHIFT REGISTER,CMOS,DIP,16PIN,CERAMIC | CD4014BM96 vs CD4014BMD |
| CD4014BMD/883C | Texas Instruments | Check for Price | IC,SHIFT REGISTER,CMOS,DIP,16PIN,CERAMIC | CD4014BM96 vs CD4014BMD/883C |
| HCF4014BM1 | STMicroelectronics | Check for Price | 4000/14000/40000 SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, TRUE OUTPUT, PDSO16, SO-16 | CD4014BM96 vs HCF4014BM1 |
