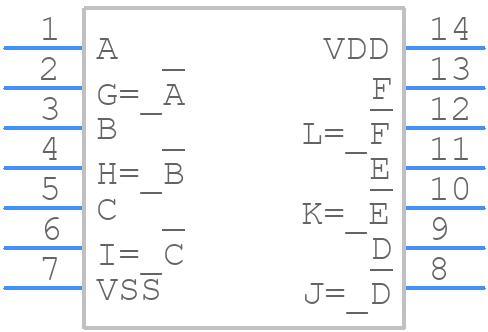

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD40106BPW by Texas Instruments
Results Overview of CD40106BPW by Texas Instruments
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CD40106BPW Information
CD40106BPW by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| CD40106BPWR | Texas Instruments | CMOS Hex Schmitt Triggers 14-TSSOP -55 to 125 |
Price & Stock for CD40106BPW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-CD40106BPW-ND
|
DigiKey | IC INVERTER 6CH 1-INP 14TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
15160 In Stock |
|
$0.6000 | Buy Now |
|
DISTI #
296-25936-5-ND
|
DigiKey | IC INVERTER 6CH 1-INP 14TSSOP Min Qty: 1 Lead time: 6 Weeks Container: Tube |
2865 In Stock |
|
$0.4853 / $1.0200 | Buy Now |
|
DISTI #
85975624
|
Verical | Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 517 Package Multiple: 1 Date Code: 1001 | Americas - 8320 |
|
$0.7260 | Buy Now |
|
DISTI #
85974481
|
Verical | Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 517 Package Multiple: 1 Date Code: 1101 | Americas - 3510 |
|
$0.7260 | Buy Now |
|
DISTI #
85975153
|
Verical | Inverter Schmitt Trigger 6-Element CMOS 14-Pin TSSOP Tube RoHS: Compliant Min Qty: 517 Package Multiple: 1 Date Code: 1201 | Americas - 3330 |
|
$0.7260 | Buy Now |
|
|
Quest Components | INVERTER, 4000/14000/40000 SERIES, 6-FUNC, 1-INPUT, CMOS, PDSO14 | 80 |
|
$0.5740 / $0.9567 | Buy Now |
|
|
Quest Components | INVERTER, 4000/14000/40000 SERIES, 6-FUNC, 1-INPUT, CMOS, PDSO14 (Also Known As: CD40106BPWG4) | 80 |
|
$0.5740 / $0.9567 | Buy Now |
|
|
Rochester Electronics | CD40106B CMOS Hex Schmitt Triggers RoHS: Compliant Status: Obsolete Min Qty: 1 | 15160 |
|
$0.3601 / $0.5808 | Buy Now |
|
DISTI #
CD40106BPW
|
TME | IC: digital, NOT, Ch: 6, IN: 1, CMOS, SMD, TSSOP14, 3÷18VDC, -55÷125°C Min Qty: 1 | 138 |
|
$0.5900 / $0.9110 | Buy Now |
|
|
Vyrian | Logic ICs | 11631 |
|
RFQ |
Part Details for CD40106BPW
CD40106BPW CAD Models
CD40106BPW Part Data Attributes
|
|
CD40106BPW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD40106BPW
Texas Instruments
6-ch, 3-V to 18-V inverters with Schmitt-Trigger inputs 14-TSSOP -55 to 125
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | INVERTER | |
| Max I(ol) | 0.0024 A | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 6 | |
| Number of Inputs | 1 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power Supply Current-Max (ICC) | 0.12 mA | |
| Prop. Delay@Nom-Sup | 280 ns | |
| Propagation Delay (tpd) | 280 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | YES | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for CD40106BPW
This table gives cross-reference parts and alternative options found for CD40106BPW. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD40106BPW, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| MC14584BDTEL | onsemi | Check for Price | 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, PLASTIC, TSSOP-14 | CD40106BPW vs MC14584BDTEL |
| CD40106BPWR | Texas Instruments | $0.1490 | 6-ch, 3-V to 18-V inverters with Schmitt-Trigger inputs 14-TSSOP -55 to 125 | CD40106BPW vs CD40106BPWR |
| MC14584BDTR2 | onsemi | Check for Price | 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, LEAD FREE, TSSOP-14 | CD40106BPW vs MC14584BDTR2 |
| MC14584BDTR2G | onsemi | $0.3617 | Hex Inverter with Schmitt-Trigger Input, TSSOP-14, 2500-REEL | CD40106BPW vs MC14584BDTR2G |
| CD40106BPWG4 | Texas Instruments | Check for Price | CMOS Hex Schmitt Triggers 14-TSSOP -55 to 125 | CD40106BPW vs CD40106BPWG4 |
| MC14106BDTR2 | onsemi | Check for Price | 4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, PDSO14, LEAD FREE, TSSOP-14 | CD40106BPW vs MC14106BDTR2 |
CD40106BPW Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the CD40106BPW is typically around 10 MHz, but it can vary depending on the specific application and operating conditions.
-
To ensure proper biasing, make sure to connect the VDD pin to a stable voltage source between 3V and 15V, and the VSS pin to ground. Also, ensure that the input signals are within the recommended voltage range.
-
The maximum power dissipation for the CD40106BPW is typically around 500 mW, but it can vary depending on the specific application and operating conditions.
-
The CD40106BPW is rated for operation up to 125°C, but it's recommended to derate the power dissipation at higher temperatures to ensure reliable operation.
-
To minimize EMI, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding decoupling capacitors. Also, consider using shielding or EMI filters if necessary.
