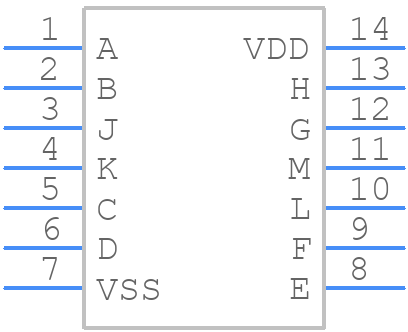

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CD4001BPWRE4 by Texas Instruments
Results Overview of CD4001BPWRE4 by Texas Instruments
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (8 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Audio and Video Systems
Financial Technology (Fintech)
Healthcare
Entertainment and Gaming
CD4001BPWRE4 Information
CD4001BPWRE4 by Texas Instruments is a Gate.
Gates are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Part Details for CD4001BPWRE4
CD4001BPWRE4 CAD Models
CD4001BPWRE4 Part Data Attributes
|
|
CD4001BPWRE4
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CD4001BPWRE4
Texas Instruments
4000/14000/40000 SERIES, QUAD 2-INPUT NOR GATE, PDSO14, GREEN, PLASTIC. TSSOP-14
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TSSOP | |
| Package Description | TSSOP, TSSOP14,.25 | |
| Pin Count | 14 | |
| Reach Compliance Code | unknown | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Family | 4000/14000/40000 | |
| JESD-30 Code | R-PDSO-G14 | |
| JESD-609 Code | e4 | |
| Length | 5 mm | |
| Load Capacitance (CL) | 50 pF | |
| Logic IC Type | NOR GATE | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 4 | |
| Number of Inputs | 2 | |
| Number of Terminals | 14 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP14,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Prop. Delay@Nom-Sup | 250 ns | |
| Propagation Delay (tpd) | 250 ns | |
| Qualification Status | Not Qualified | |
| Schmitt Trigger | NO | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 18 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
Alternate Parts for CD4001BPWRE4
This table gives cross-reference parts and alternative options found for CD4001BPWRE4. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CD4001BPWRE4, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CD4001BPW | Texas Instruments | $0.2562 | 4-ch, 2-input, 3-V to 18-V NOR gates 14-TSSOP -55 to 125 | CD4001BPWRE4 vs CD4001BPW |
| MC14001BDTR2G | onsemi | $0.4984 | Quad 2-Input NOR Gate, TSSOP-14, 2500-REEL | CD4001BPWRE4 vs MC14001BDTR2G |
| CD4001BPWG4 | Texas Instruments | Check for Price | CMOS Quad 2-Input NOR Gate 14-TSSOP -55 to 125 | CD4001BPWRE4 vs CD4001BPWG4 |
| CD4001UBPWRE4 | Texas Instruments | Check for Price | 4000/14000/40000 SERIES, QUAD 2-INPUT NOR GATE, PDSO14, GREEN PLASTIC. TSSOP-14 | CD4001BPWRE4 vs CD4001UBPWRE4 |
| CD4001BPWE4 | Texas Instruments | Check for Price | 4000/14000/40000 SERIES, QUAD 2-INPUT NOR GATE, PDSO14, GREEN, PLASTIC. TSSOP-14 | CD4001BPWRE4 vs CD4001BPWE4 |
| CD4001UBPWRG4 | Texas Instruments | Check for Price | 4-ch, 2-input, 3-V to 18-V NOR gates 14-TSSOP -55 to 125 | CD4001BPWRE4 vs CD4001UBPWRG4 |
| MC14001BDT | onsemi | Check for Price | 4000/14000/40000 SERIES, QUAD 2-INPUT NOR GATE, PDSO14, PLASTIC, TSSOP-14 | CD4001BPWRE4 vs MC14001BDT |
| CD4001BPWRG4 | Texas Instruments | Check for Price | 4-ch, 2-input, 3-V to 18-V NOR gates 14-TSSOP -55 to 125 | CD4001BPWRE4 vs CD4001BPWRG4 |
