CD214B-S3J Information
CD214B-S3J by Bourns Inc is a Rectifier Diode.
Rectifier Diodes are under the broader part category of Diodes.
A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.
Price & Stock for CD214B-S3J
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AH8505
|
Newark | Rectifier, Single, 600V, 3A, Do-214Aa Rohs Compliant: Yes |Bourns CD214B-S3J RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 8577 |
|
$0.2010 / $0.4600 | Buy Now |
|
DISTI #
65AH0113
|
Newark | Dio Rect Vrrm 600V 3A Smb /Tape & Reel - 13" Reel |Bourns CD214B-S3J RoHS: Not Compliant Min Qty: 10000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.1040 / $0.1390 | Buy Now |
|
DISTI #
118-CD214B-S3JCT-ND
|
DigiKey | DIODE STANDARD 600V 3A 2SMD Min Qty: 1 Lead time: 20 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
7210 In Stock |
|
$0.1000 / $0.4600 | Buy Now |
|
DISTI #
CD214B-S3J
|
Avnet Americas | Rectifier 3A 2-Pin DO-214AA T/R - Tape and Reel (Alt: CD214B-S3J) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.0998 / $0.1019 | Buy Now |
|
DISTI #
652-CD214B-S3J
|
Mouser Electronics | Rectifiers 1A 600V SMB RoHS: Compliant | 13465 |
|
$0.1030 / $0.4600 | Buy Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.1010 / $0.1194 | Buy Now |
|
DISTI #
CD214B-S3J
|
TTI | Rectifiers 1A 600V SMB RoHS: Compliant pbFree: Pb-Free Min Qty: 10000 Package Multiple: 5000 Container: Reel | Americas - 0 |
|
$0.1330 / $0.1440 | Buy Now |
|
DISTI #
CD214B-S3J
|
TME | Diode: rectifying, SMD, 600V, 3A, DO214AA,SMB, Ufmax: 1V, Ifsm: 96A Min Qty: 1 | 0 |
|
$0.1380 / $0.5310 | RFQ |
|
DISTI #
CD214B-S3J
|
Avnet Abacus | Rectifier 3A 2Pin DO214AA TR - Tape and Reel (Alt: CD214B-S3J) RoHS: Compliant Min Qty: 10000 Package Multiple: 5000 Lead time: 21 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | RoHS: Compliant | 0 |
|
$0.1010 / $0.1194 | Buy Now |
Part Details for CD214B-S3J

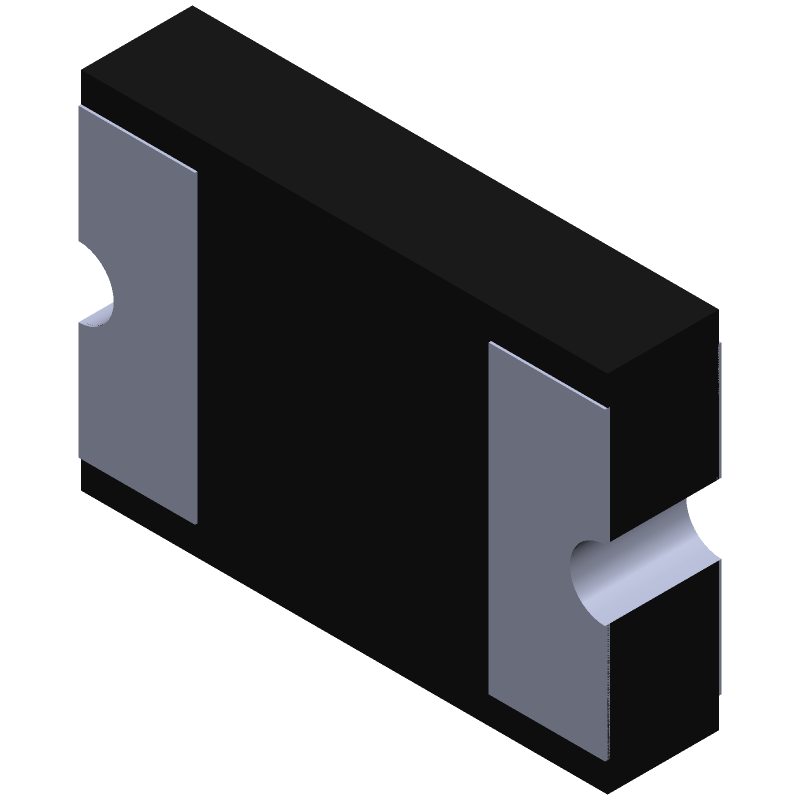

CD214B-S3J CAD Models
CD214B-S3J Part Data Attributes
|
|
CD214B-S3J
Bourns Inc
Buy Now
Datasheet
|
Compare Parts:
CD214B-S3J
Bourns Inc
Rectifier Diode,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | BOURNS INC | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.10.00.80 | |
| Factory Lead Time | 20 Weeks | |
| Date Of Intro | 2020-01-22 | |
| Samacsys Manufacturer | Bourns | |
| Application | EFFICIENCY | |
| Configuration | SINGLE | |
| Diode Element Material | SILICON | |
| Diode Type | RECTIFIER DIODE | |
| Forward Voltage-Max (VF) | 1 V | |
| JESD-30 Code | R-PDSO-N2 | |
| JESD-609 Code | e3 | |
| Moisture Sensitivity Level | 1 | |
| Non-rep Pk Forward Current-Max | 96 A | |
| Number of Elements | 1 | |
| Number of Phases | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 175 °C | |
| Operating Temperature-Min | -65 °C | |
| Output Current-Max | 3 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Rep Pk Reverse Voltage-Max | 600 V | |
| Reverse Current-Max | 5 µA | |
| Reverse Test Voltage | 600 V | |
| Surface Mount | YES | |
| Terminal Finish | TIN | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
