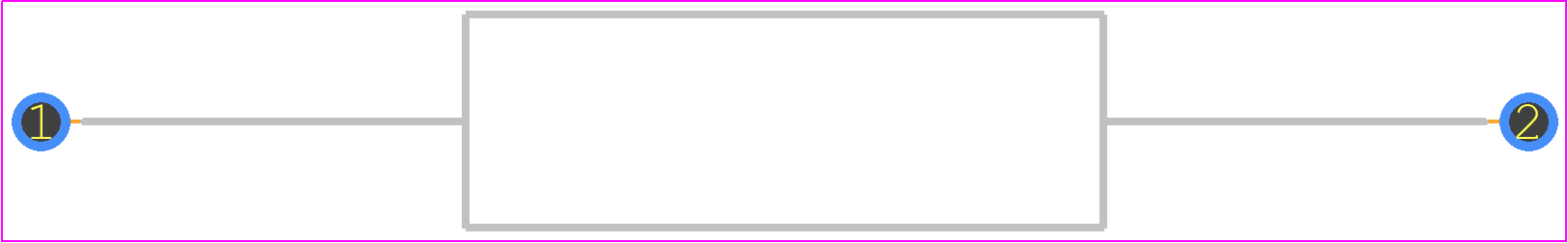

Part Symbol
-
Footprint
-

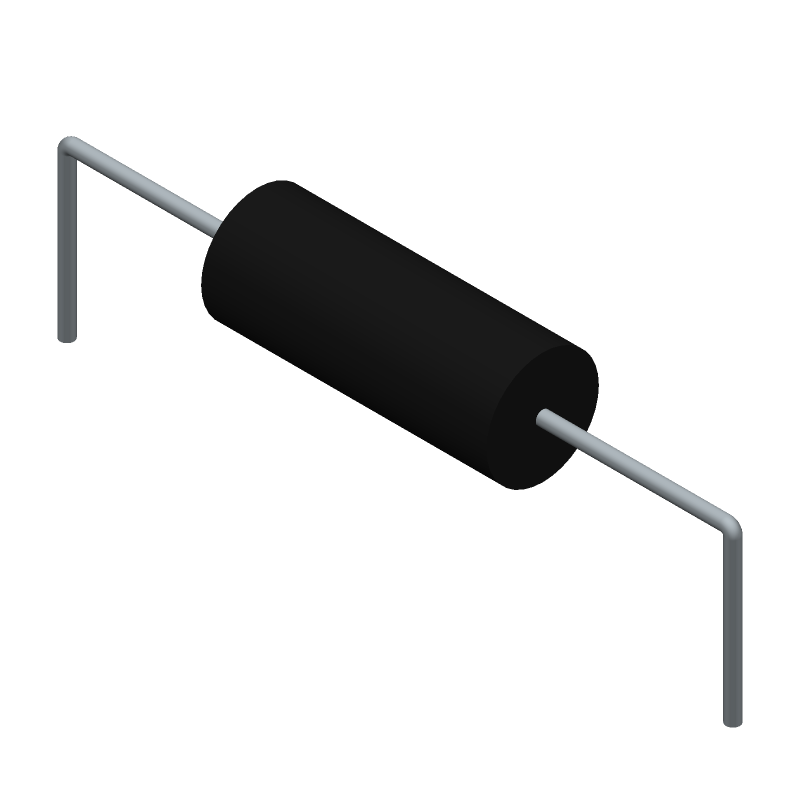

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CCR11K0KTB by TE Connectivity
Results Overview of CCR11K0KTB by TE Connectivity
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
CCR11K0KTB Information
CCR11K0KTB by TE Connectivity is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CCR11K0KTB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
53R2481
|
Newark | Through Hole Ceramic Resistor, Ccr Series, 1 Kohm, 1 W, - 10%, 300 V, Axial Leaded |Cgs Te Connectivity CCR11K0KTB RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.3600 / $1.4200 | Buy Now |
|
DISTI #
A129330-ND
|
DigiKey | RES 1K OHM 10% 1W AXIAL Min Qty: 1 Lead time: 34 Weeks Container: Bulk |
4603 In Stock |
|
$1.1903 / $3.2200 | Buy Now |
|
DISTI #
1623719-6
|
Avnet Americas | Resistor, 1 kOhm, ? 10%, 1 W, Axial Leaded, Ceramic Composition, Pulse Withstanding - Boxed Product (Development Kits) (Alt: 1623719-6) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 32 Weeks, 4 Days Container: Box | 0 |
|
$1.1328 / $1.1564 | Buy Now |
|
DISTI #
279-CCR11K0KTB
|
Mouser Electronics | Ceramic Composition Resistors CCR1 1K0 10% RoHS: Compliant | 9200 |
|
$1.1900 / $2.5600 | Buy Now |
|
|
Onlinecomponents.com | CCR1 1K0 10%<br/>Ceramic Composition Resistors<br/>Fixed Resistor RoHS: Compliant | 0 |
|
$1.1800 / $2.4800 | Buy Now |
|
DISTI #
73586969
|
Verical | Res Ceramic Composition 1K Ohm 10% 1W -1800ppm/°C to -700ppm/°C Conformal Coated AXL Box/Loose RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 | Americas - 1000 |
|
$1.1977 | Buy Now |
|
DISTI #
1623719-6
|
Avnet Abacus | Resistor 1 kOhm 10 1 W Axial Leaded Ceramic Composition Pulse Withstanding (Alt: 1623719-6) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 26 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | CCR1 1K0 10%<br/>Ceramic Composition Resistors<br/>Fixed Resistor RoHS: Compliant | 0 |
|
$1.1800 / $2.4800 | Buy Now |
Part Details for CCR11K0KTB
CCR11K0KTB CAD Models
CCR11K0KTB Part Data Attributes
|
|
CCR11K0KTB
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
CCR11K0KTB
TE Connectivity
RESISTOR
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | AXIAL LEADED | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.90 | |
| Factory Lead Time | 32 Weeks, 4 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 200 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Shape | TUBULAR PACKAGE | |
| Packing Method | BULK, BOX | |
| Physical Dimension | 16.5mm x 5.5mm | |
| Rated Power Dissipation (P) | 1 W | |
| Resistance | 1000 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | CERAMIC COMPOSITION | |
| Temperature Coefficient | 1300 ppm/°C | |
| Terminal Shape | WIRE | |
| Tolerance | 10% | |
| Working Voltage | 300 V |
CCR11K0KTB Frequently Asked Questions (FAQ)
-
The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
-
Yes, the CCR11K0KTB is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat. 2.
-
Yes, the CCR11K0KTB has an IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
-
The maximum operating temperature range for the CCR11K0KTB is -40°C to 125°C, as specified in the datasheet.
-
No, the CCR11K0KTB is designed for wire sizes up to 1.5 mm². Using a larger wire size may compromise the connector's performance and reliability.
