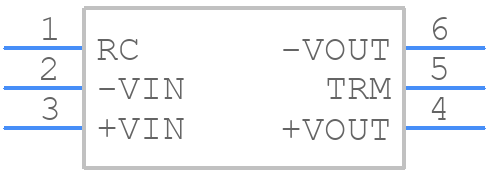

Part Symbol
-

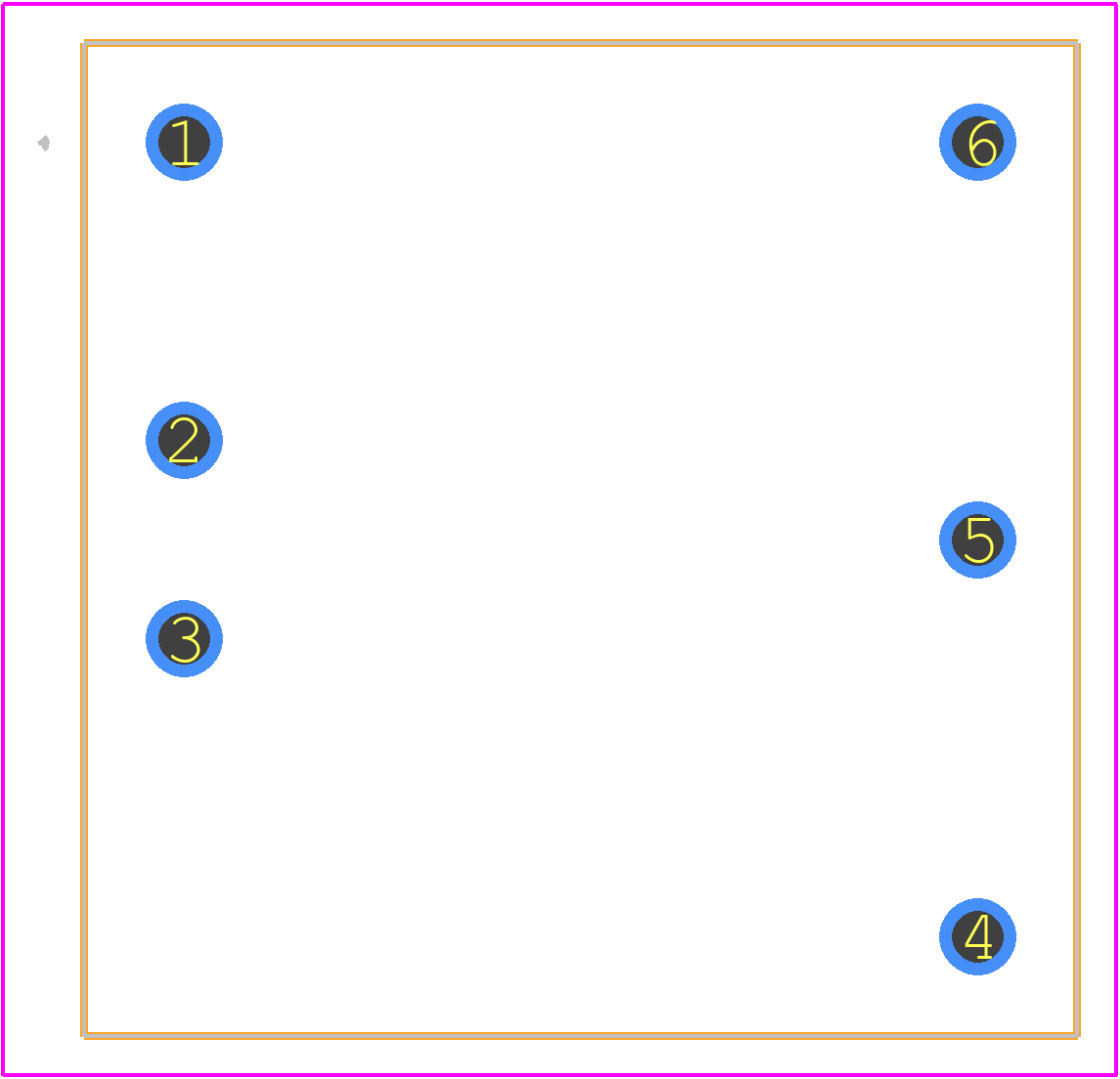

Footprint
-

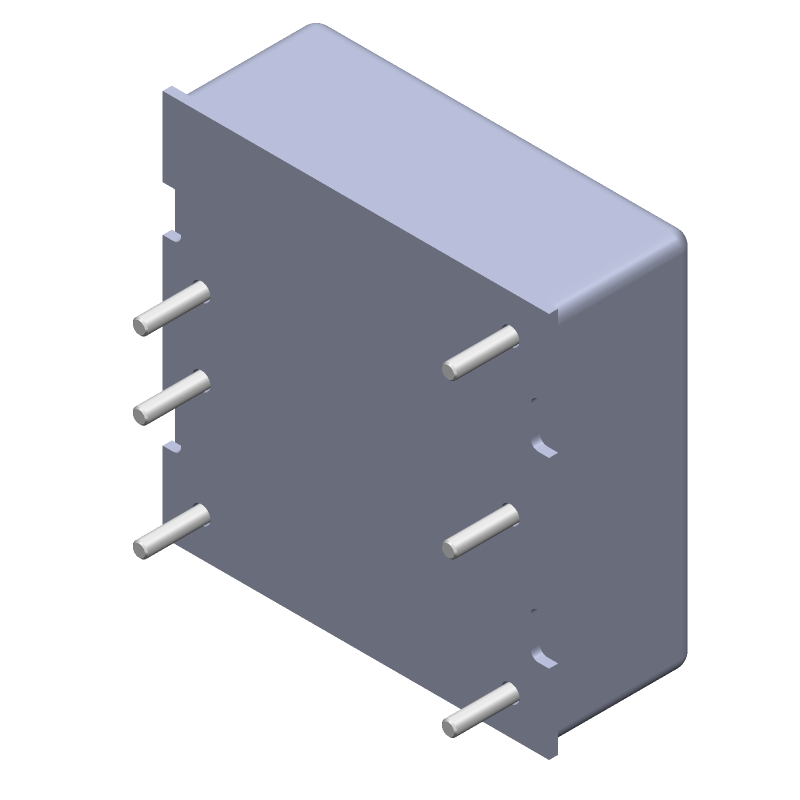

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CCG30-48-03S by TDK-Lambda Corporation
Results Overview of CCG30-48-03S by TDK-Lambda Corporation
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Medical Imaging
Robotics and Drones
CCG30-48-03S Information
CCG30-48-03S by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CCG30-48-03S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
49Y4005
|
Newark | Dc-Dc Converter, 3.3V, 7A, Dip, Power Supply Applications:Ite, Dc/Dc Converter Type:Dip, Input Ratio:4:1, Output Power Max:23.1W, No. Of Outputs:1 Output, Output Voltage - Output 1:3.3V, Output Current - Output 1:7A, Width:25.4Mm Rohs Compliant: Yes |Tdk-Lambda CCG30-48-03S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$39.2600 | Buy Now |
|
DISTI #
285-CCG30-48-03S-ND
|
DigiKey | DC DC CONVERTER 3.3V 30W Min Qty: 1 Lead time: 11 Weeks Container: Tray |
52 In Stock |
|
$37.6600 | Buy Now |
|
DISTI #
70958794
|
RS | DC-DC Converter, PCB Mount, 24/48VDC, Output 3.3V 7A, 23.1W, CCG30 Series Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 0 |
|
$39.1200 / $40.3300 | RFQ |
|
|
Onlinecomponents.com | Single Output DC-DC Converter - 30W - Vin: 18 to 76V - Vout: 3.3V - Remote On/Off - Thru-Hole 1"x1" Package RoHS: Compliant | 0 |
|
$37.6600 | Buy Now |
|
DISTI #
69830189
|
Verical | Module DC-DC 48VIN 1-OUT 3.3V 7A 23.1W 6-Pin Min Qty: 2 Package Multiple: 1 | Americas - 24 |
|
$38.1484 / $42.9189 | Buy Now |
|
|
Quest Components | 19 |
|
$50.6226 / $59.5560 | Buy Now | |
|
DISTI #
CCG30-48-03S
|
TME | Converter: DC/DC, 23.1W, Uin: 18÷76VDC, Uout: 3.3VDC, Iout: 7A, THT Min Qty: 1 | 0 |
|
$33.8900 / $35.0300 | RFQ |
|
DISTI #
000000000006390294
|
Sager | Isolated DC/DC Converters - Through Hole 23.1W 24/48Vin 3.3Vout 7A Min Qty: 1 | 0 |
|
$37.6600 | Buy Now |
|
DISTI #
CCG30-48-03S
|
Chip One Stop | Electromechanicals RoHS: Compliant Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Bulk | 259 |
|
$22.6000 / $28.3000 | Buy Now |
Part Details for CCG30-48-03S
CCG30-48-03S CAD Models
CCG30-48-03S Part Data Attributes
|
|
CCG30-48-03S
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CCG30-48-03S
TDK-Lambda Corporation
DC-DC Regulated Power Supply Module,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE |
CCG30-48-03S Frequently Asked Questions (FAQ)
-
TDK-Lambda recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a metal plate to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
-
To ensure EMC, TDK-Lambda recommends using a metal enclosure, proper cable shielding, and filtering, as well as following the recommended layout and grounding guidelines. Additionally, the power supply should be installed in a way that minimizes radiation and susceptibility to electromagnetic interference.
-
The derating curve for the CCG30-48-03S is typically provided in the product's technical manual or can be obtained from TDK-Lambda's technical support. As a general guideline, the power supply's output power should be derated by 2-3% per degree Celsius above 40°C to ensure reliable operation.
-
Yes, the CCG30-48-03S can be used in a redundant or parallel configuration, but it requires proper design and implementation to ensure reliable operation. TDK-Lambda recommends consulting their application notes and technical support for guidance on implementing redundant or parallel configurations.
-
The MTBF rating for the CCG30-48-03S is typically provided in the product's technical manual or can be obtained from TDK-Lambda's technical support. As a general guideline, the MTBF rating for this power supply is around 500,000 hours to 1,000,000 hours, depending on the operating conditions and environment.
