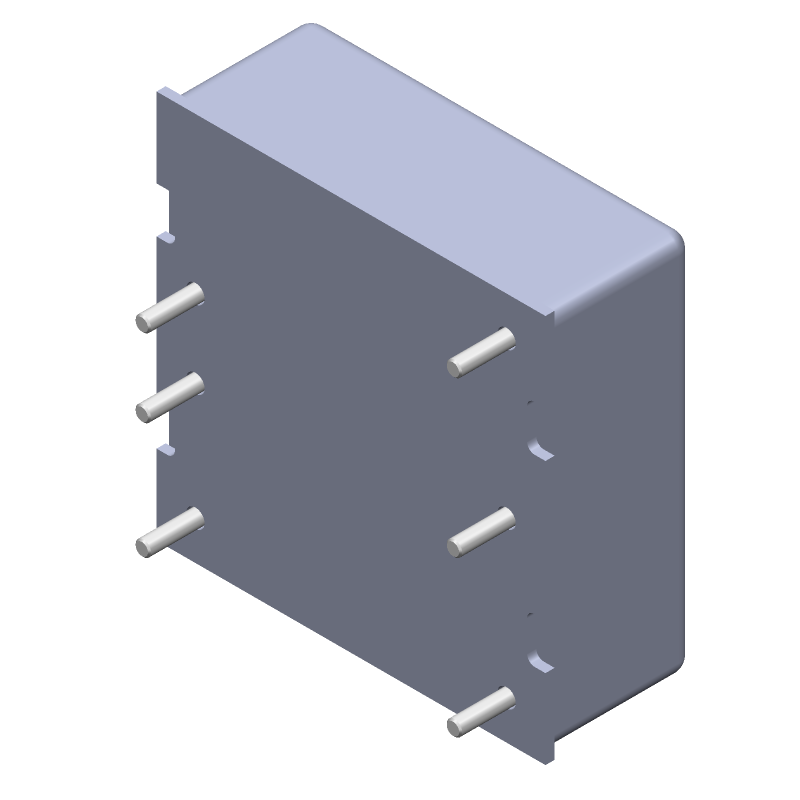

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CCG15-24-05S by TDK-Lambda Corporation
Results Overview of CCG15-24-05S by TDK-Lambda Corporation
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
CCG15-24-05S Information
CCG15-24-05S by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CCG15-24-05S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
27AJ4491
|
Newark | Dc-Dc Converter, 5V, 3A, No. Of Outputs:1 Output, Output Power Max:15W, Output Voltage - Output 1:5V, Output Current - Output 1:3A, Output Voltage - Output 2:-, Output Current - Output 2:-, Output Voltage - Output 3:-, Output Currentrohs Compliant: Yes |Tdk-Lambda CCG15-24-05S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$29.2800 | Buy Now |
|
DISTI #
285-CCG15-24-05S-ND
|
DigiKey | DC DC CONVERTER 5V 15W Min Qty: 1 Lead time: 11 Weeks Container: Tray |
277 In Stock |
|
$29.2800 | Buy Now |
|
DISTI #
967-CCG152405S
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 15W 12/24Vin 5Vout 3A RoHS: Compliant | 212 |
|
$29.2800 | Buy Now |
|
DISTI #
70914330
|
RS | DC-DC Converter, PCB Mount, 5V@3A, 15W, 12/24 V, CCG15S Series Min Qty: 1 Package Multiple: 1 Lead time: 52 Weeks, 0 Days Container: Bulk | 1 |
|
$29.3300 / $30.2400 | Buy Now |
|
|
Onlinecomponents.com | Single Output DC-DC Converter - 15W - Vin: 9 to 36V - Vout: 5V - Remote On/Off - Thru-Hole 1"x1" Package RoHS: Compliant |
85 In Stock |
|
$30.1900 | Buy Now |
|
DISTI #
87666804
|
Verical | Module DC-DC 24VIN 1-OUT 5V 3A 15W 6-Pin Min Qty: 2 Package Multiple: 1 | Americas - 3 |
|
$36.6479 / $37.9580 | Buy Now |
|
|
Quest Components | 2 |
|
$52.9420 | Buy Now | |
|
DISTI #
CCG15-24-05S
|
TME | Converter: DC/DC, 15W, Uin: 9÷36VDC, Uout: 5VDC, Iout: 3A, THT Min Qty: 1 | 0 |
|
$26.2600 / $27.2000 | RFQ |
|
DISTI #
000000000006390277
|
Sager | Isolated DC/DC Converters - Through Hole 15W 12/24Vin 5Vout 3A Min Qty: 1 | 139 |
|
$29.2800 | Buy Now |
|
|
Master Electronics | Single Output DC-DC Converter - 15W - Vin: 9 to 36V - Vout: 5V - Remote On/Off - Thru-Hole 1"x1" Package RoHS: Compliant |
85 In Stock |
|
$30.1900 | Buy Now |
Part Details for CCG15-24-05S
CCG15-24-05S CAD Models
CCG15-24-05S Part Data Attributes
|
|
CCG15-24-05S
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
CCG15-24-05S
TDK-Lambda Corporation
DC-DC Regulated Power Supply Module,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Package Description | MODULE-6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Input Voltage-Max | 36 V | |
| Input Voltage-Min | 9 V | |
| JESD-30 Code | S-XDMA-P6 | |
| Length | 25.4 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 6 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Voltage-Max | 5.5 V | |
| Output Voltage-Min | 4.5 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | SQUARE | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Seated Height-Max | 9.9 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 15 W | |
| Trim/Adjustable Output | YES | |
| Width | 25.4 mm |
