Part Details for CC79R-2024-01-L by Samtec Inc
Results Overview of CC79R-2024-01-L by Samtec Inc
- Distributor Offerings: (24 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10127820-2422CLF | Amphenol Communications Solutions | Minitek® Pwr 4.2, Dual Row, Vertical Through Hole Header, 80u\\ Min Tin plating, Natural Color, 24 Positions, Non GW Compatible Nylon66, Tape and Reel with cap. | |
| 10127820-2422GCLF | Amphenol Communications Solutions | Minitek® Pwr 4.2, Dual Row, Vertical Through Hole Header, 80u\\ Min Tin plating, Natural Color, 24 Positions, GW Compatible Nylon66, Tape and Reel with cap. | |
| 51760-10202402AALF | Amphenol Communications Solutions | PwrBlade®, Power Supply Connectors, 2P 24S 2P STB Right Angle Receptacle. |
Price & Stock for CC79R-2024-01-L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
97AC6752
|
Newark | Crimp Contact, Cc79 Series Rohs Compliant: Yes |Samtec CC79R-2024-01-L RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 19275 |
|
$0.0900 / $0.2230 | Buy Now |
|
DISTI #
35R2919
|
Newark | Crimp Contact, Cc79 Series Rohs Compliant: Yes |Samtec CC79R-2024-01-L RoHS: Compliant Min Qty: 12000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.0950 / $0.1090 | Buy Now |
|
DISTI #
612-CC79R-2024-01-LCT-ND
|
DigiKey | CONN SOCKET 20-24AWG CRIMP GOLD Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
277608 In Stock |
|
$0.0600 / $0.2100 | Buy Now |
|
DISTI #
CC79R-2024-01-L
|
Avnet Americas | Contact, CC79, Socket, Crimp, 20 AWG, Gold Plated Contacts, IPD1 Series Connectors - Tape and Reel (Alt: CC79R-2024-01-L) RoHS: Compliant Min Qty: 12000 Package Multiple: 12000 Lead time: 10 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
200-CC79R-2024-01-L
|
Mouser Electronics | Headers & Wire Housings .100 Mini Mate Crimp Contact, Reel Packaging RoHS: Compliant | 3620420 |
|
$0.1000 / $0.1900 | Buy Now |
|
DISTI #
E02:0323_03822153
|
Arrow Electronics | Contact SKT Crimp ST Cable Mount 20-24AWG Mini Mate® Reel RoHS: Compliant Min Qty: 12000 Package Multiple: 12000 Lead time: 3 Weeks Date Code: 2506 | Europe - 12000 |
|
$0.0912 | Buy Now |
|
DISTI #
V36:1790_07867949
|
Arrow Electronics | Contact SKT Crimp ST Cable Mount 20-24AWG Mini Mate® Reel RoHS: Compliant Min Qty: 12000 Package Multiple: 12000 Lead time: 14 Weeks Date Code: 2421 | Americas - 12000 |
|
$0.1465 | Buy Now |
|
DISTI #
V99:2348_07867949
|
Arrow Electronics | Contact SKT Crimp ST Cable Mount 20-24AWG Mini Mate® Reel RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2341 | Americas - 35 |
|
$0.1523 / $0.1702 | Buy Now |
|
|
Onlinecomponents.com | .100" Mini Mate® Crimp Contact, Reel Packaging RoHS: Compliant |
262271 In Stock |
|
$0.0579 / $0.0656 | Buy Now |
|
DISTI #
62974743
|
Verical | Contact SKT Crimp ST Cable Mount 20-24AWG Mini Mate® Reel RoHS: Compliant Min Qty: 12000 Package Multiple: 12000 Date Code: 2210 | Americas - 252000 |
|
$0.0685 / $0.0772 | Buy Now |
Part Details for CC79R-2024-01-L

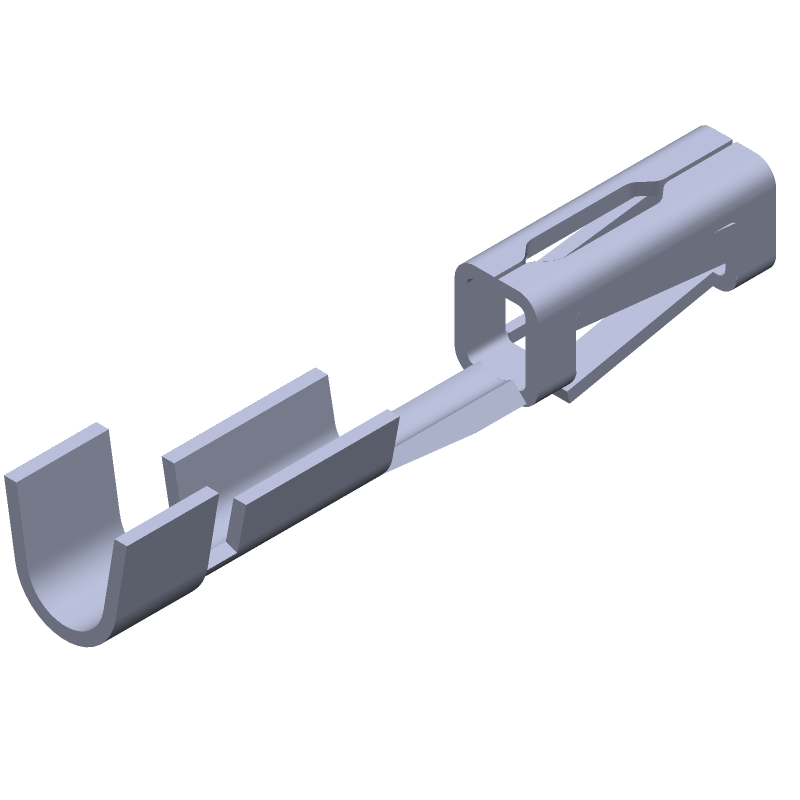

CC79R-2024-01-L CAD Models
CC79R-2024-01-L Part Data Attributes
|
|
CC79R-2024-01-L
Samtec Inc
Buy Now
Datasheet
|
Compare Parts:
CC79R-2024-01-L
Samtec Inc
Connector Accessory, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | SAMTEC INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.90.40.00 | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | SAMTEC | |
| Additional Feature | CONTACT FINISH-MATING: GOLD, CONTACT FINISH TERMINATION: TIN | |
| Assembly Item Name | CONTACT | |
| Connector Support Type | CONNECTOR ACCESSORY | |
| Contact Gender | FEMALE | |
| Contact Resistance | 15 mΩ | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Finish Thickness | 10 | |
| IEC Conformance | NO | |
| MIL Conformance | NO | |
| Material | PHOSPHOR BRONZE | |
| Mounting Style | STRAIGHT | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Rated Current | 4.8 A | |
| Terminal Type | CRIMP | |
| Used With | IPD1 SERIES HOUSING | |
| Wire Size-Max | 20 AWG | |
| Wire Size-Min | 24 AWG |
